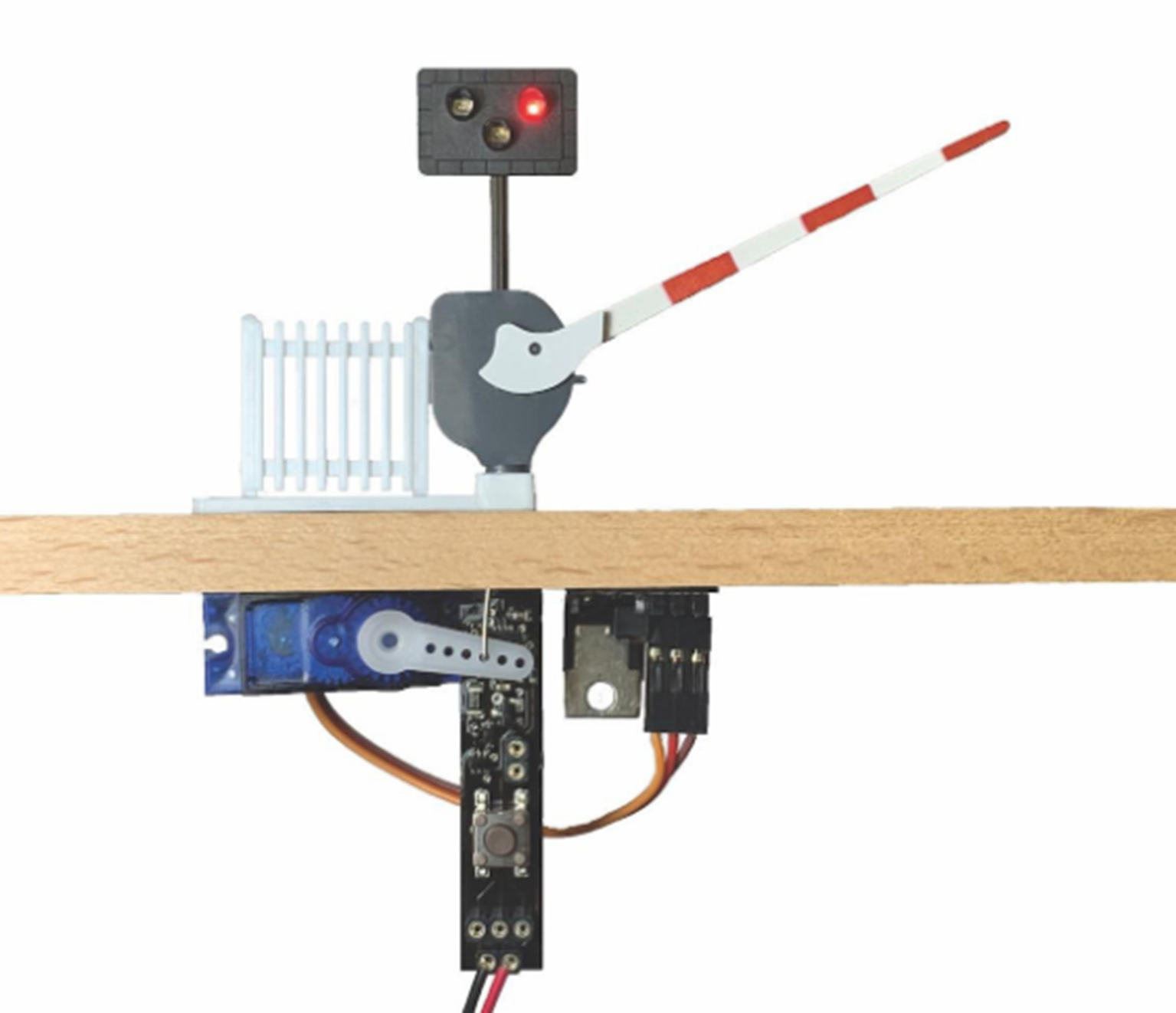

cost control actuators which are ideal for animating layouts.
SVP1 makes it easy to control a servo in a number of different ways:
Train passing a Track Sensor moves the servo to defined positions
Mimic switch moves the servo to defined positions.
DCC Controller in loco mode - controls servo using the speed control.
DCC Controller in accessory mode - moves the servo to defined positions
The Servo Controller incorporates controller, decoder and power supply circuit and can be powered directly from 12-16V smooth DC or from the standard DCC track supply. The small SV1 has a 3 pin Servo connector to enable a standard servo to be plugged in, plus screw terminals to connect to DC or DCC power, Track Sensor and Mimic Switch.

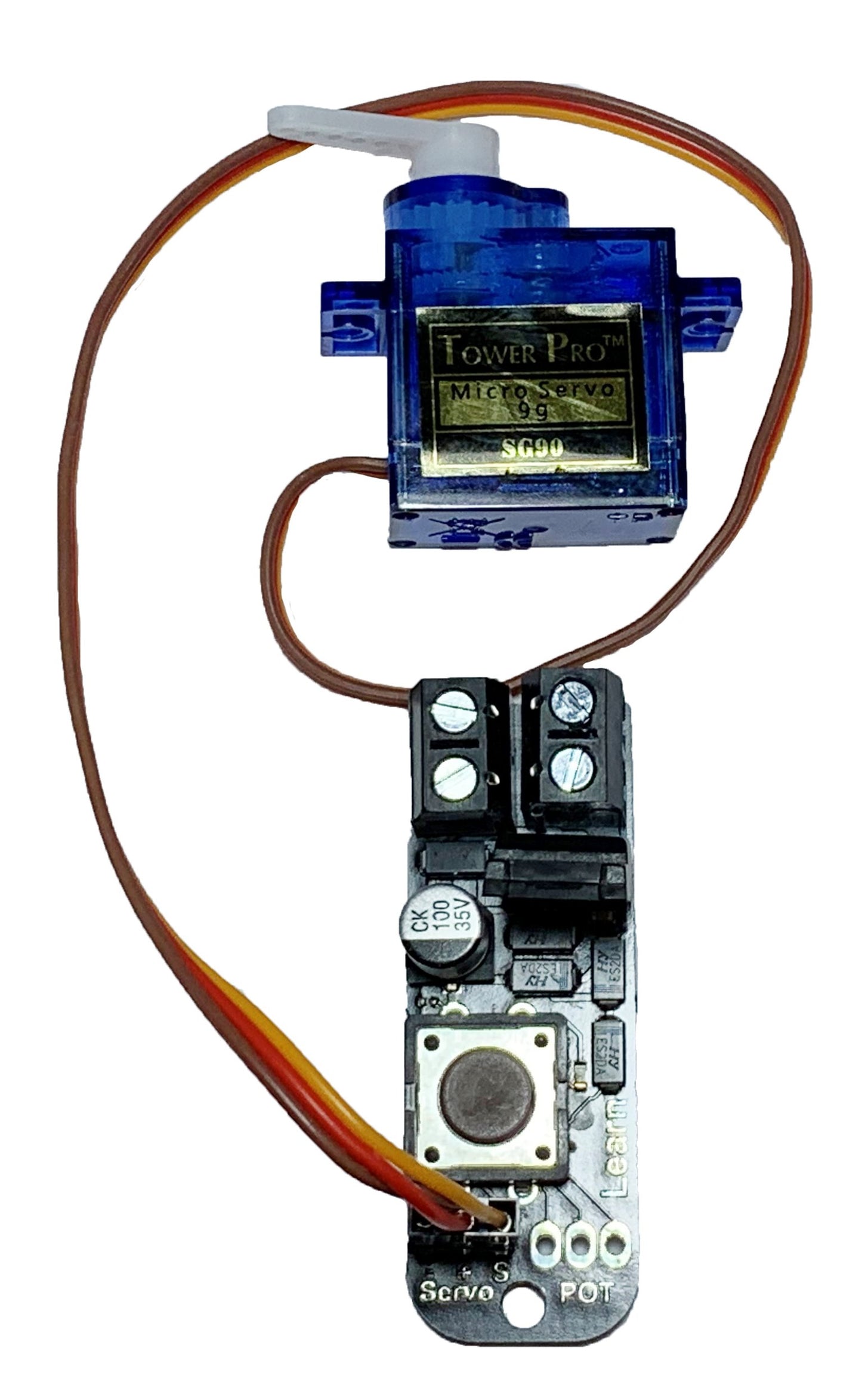

SVP1 Pack Contains:
1 x SV1 Servo controller module
1 x Basic 9g micro servo
