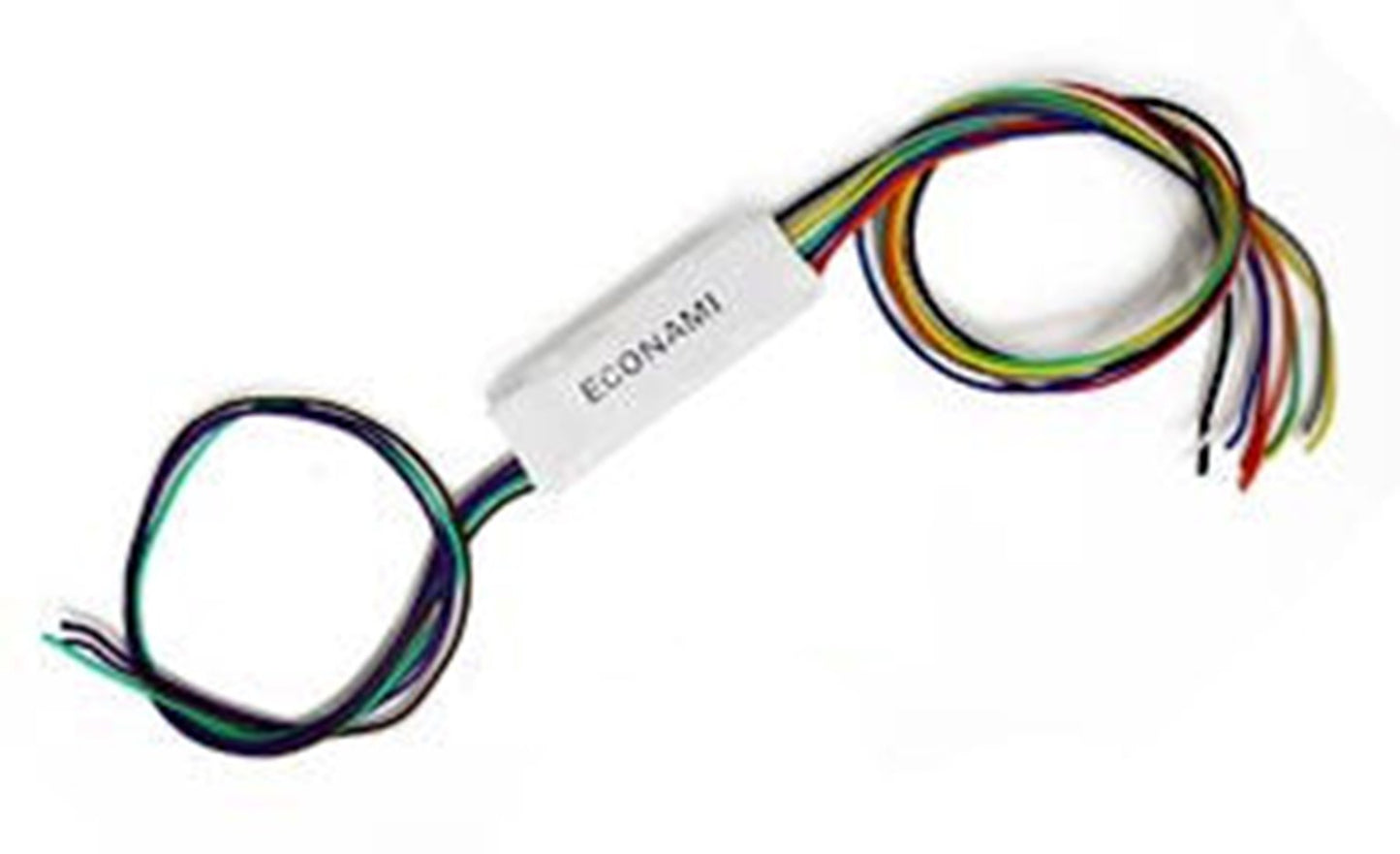

Soundtraxx 881102 Econami UK Steam 6fn 1A 16 Bit Sound Decoder

This 2-amp, universal-style format is ideal for models from HO to S, with a stall current not exceeding 2A. It includes a quick-plug for easy use of a CurrentKeeper (P.N. 810140) to maintain performance during brief power interruptions.

Specifications:

• Motor Stall Current: 2A Max
• Function Outputs: 6
• Function Current: 100mA (each output) Max.
• Audio Amplifier: 2W, 8-Ohm Load
• DCC Track Voltage: 7.5V - 22V

Measurements:

• Length: 35mm
• Width: 18mm
• Depth: 6mm

Decoder Features:

• Compatible with NMRA DCC Standards & RPs
• 28-function support, plus directional and E-Stop functions
• Flex-Map function mapping to easily assign any function to any function key
• High-quality 16-bit sound
• 40+ sound effects in each version
• Selectable exhaust chuffs or prime movers
• Function-activated brake with synchronized sound effect
• 7-Band Equalizer
• 20 selectable Hyperlight effects
• Hyperdrive2 advanced motor control and Switching Mode for enhanced slow-speed control
• Motor-synced Dynamic Digital Exhaust (steam)
• Standard, 3-point, and user-loadable speed curves
• Operates on DCC and DC layouts
• Steam Sound Effects:
• 5 Exhaust Chuffs: Light, Medium and Heavy
• 2 or 3 Cylinder and Articulated
• 16 Whistles
• 5 Airpumps (including Vacuum Pump)
• Cylinder Cocks
• Bells
• 4 Dynamos
• 4 Couplers with Buffers
• Water Stop
• Blowdown
• Rod Clank
• Brakes
• and more!

The dual whistle select feature allows for the selection and assignment of two whistles without the use of the alternate whistle function mapping. The main whistle is defaulted to F1 and the shunt whistle is defaulted to F2. F3 will play the short file for the corresponding whistle that was played last. F9 is mapped to a “two shorts” whistle signal from the factory.

Forward, reverse, and stop whistle signals can also be mapped to a driven state. Two additional features are one long blast and two short blasts of the whistle, and these can be mapped to the driven or stopped states.

Chuffs: CV123 Type: Class: Bit Value:

• Light GWR 2-6-2T Light Prairie Value 0
• Medium BR Standard Class 5 4-6-0 Value 1
• Medium BR Standard Class 4 2-6-0 Value 2
• Heavy LMS Stanier 8F 2-8-0 Value 3
• Heavy LNER A4 Class 4-6-2 Value 4

Whistles CV120 and 121: Type: Bit Value:

• GWR 2-6-2T No. 4575 Main (F1) Value 0
• GWR 2-6-2T No. 4575 Shunt (F2) Value 1
• Peckett 0-6-0T “Sir Gomer” Value 2
• Traction Engine Single-Chime Value 3
• BR Standard Class 5 4-6-0 Value 4
• LMS Stanier 8F 2-8-0 No. 48624 Value 5
• BR Standard Class 4 2-6-0 No. 76079 Value 6
• S&DJR Class 7F 2-8-0 No. 53809 Value 7
• LNER A4 Class “Sir NigelGresley” Value 8
• Festiniog Double Fairlie Main Value 9
• Festiniog Double Fairlie Shunt Value 10
• L&B 2-6-2T “Lyd” Main Value 11
• L&B No. 73129 4 2-6-2T “Lyd” Shunt Value 12
• BR Standard Class 7 Value 13
• LNER Single-Chime Value 14
• SR Single-Chime w/ West County Short Value 15
