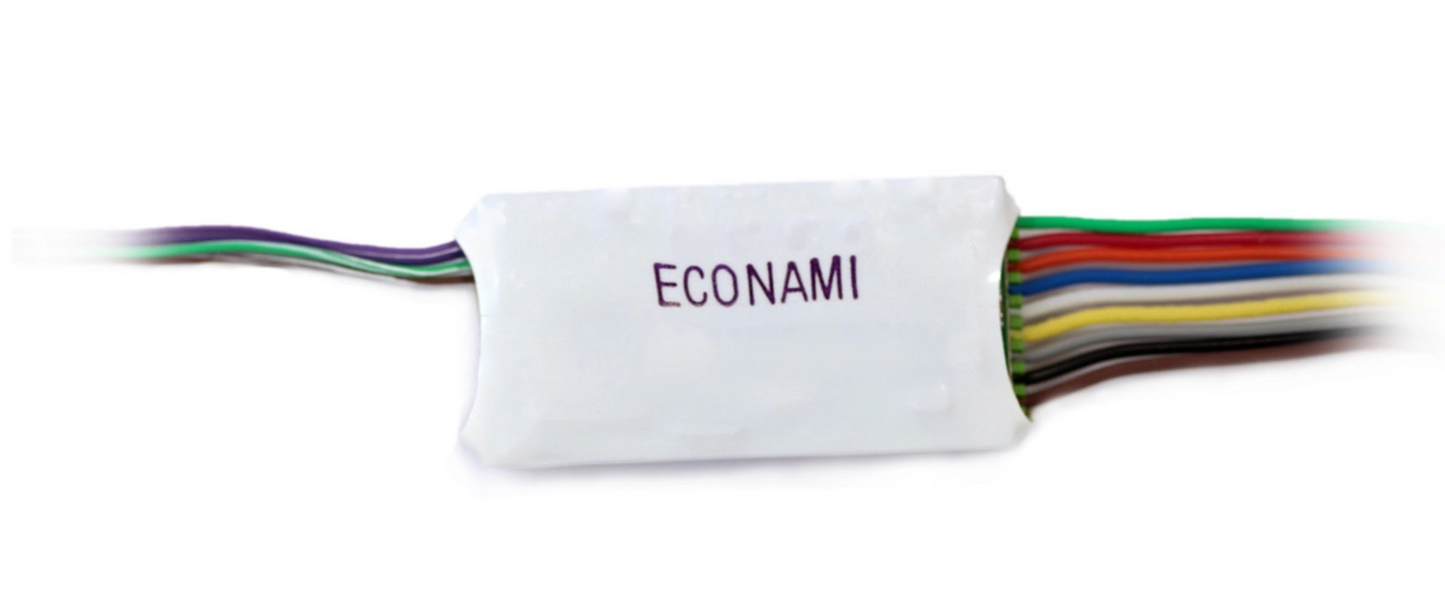

Soundtraxx 882102 ECO-200 Econami Sound Decoder, 2 Amp, UK Diesel Locomotives

Product Description

ECO-200 for UK Diesel P.N. 882102

• 35mm x 18mm x 6mm
• 2A Motor Stall Current
• Over 40 Sound Effects
• 6 Outputs for 20 Hyperlight Effects
• Hyperdrive2 Advanced Motor Control
• Operates on DCC and DC Layouts

ALL ABOARD!

The UK Econami ECO-200 Digital Sound Decoder (DSD) combines high-quality digital onboard sound and the benefits of today's Digital Command Control (DCC) technology.

DECODER FEATURES

• Compatible with NMRA DCC Standards & RPs
• 28-Function Support, plus directional and E-Stop functions
• Flex-Map Function Mapping
• High-Quality 16-Bit Sound
• 6 Outputs with 20 Selectable Hyperlight Effects
• STandard, 3-Point, and User-Loadable Speed Curves
• Function-Activated Brake with Synchronised Sound Effect
• 7-Band Equaliser

SPECIFICATIONS

• Motor Stall Current: 2A Maximum
• Function Current: 100mA each
• Audio Amplifier: 2W, 8-Ohm Load
• DCC Track Voltage: 7.5V - 22V

40+ SOUND EFFECTS

6 UK Prime Movers, Startup, Shutdown, and multiple Exhaust Notches; 10 Airhorns, 2 Compressors, 4 Couplers with Buffers, Dynamic Brake, Radiator Fans, and more!
