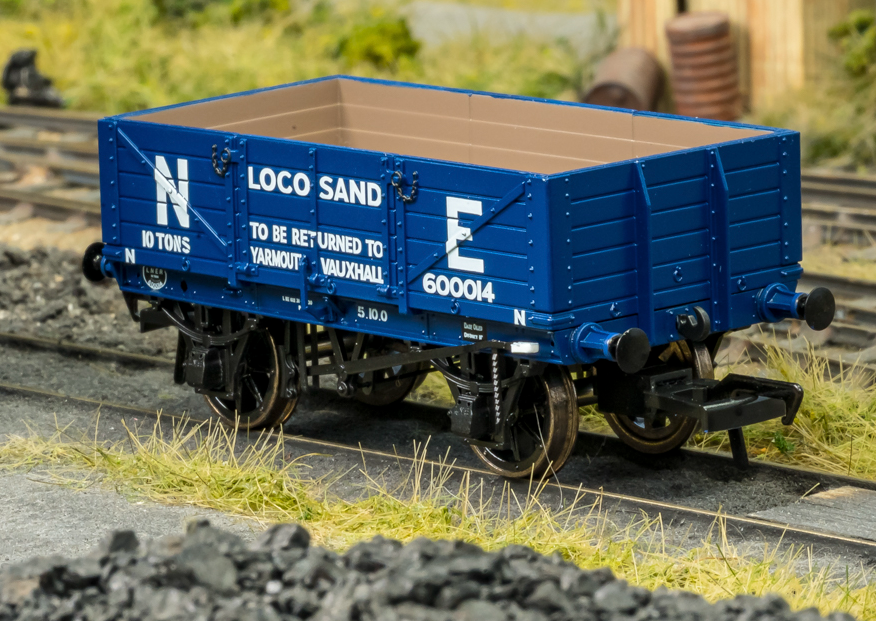

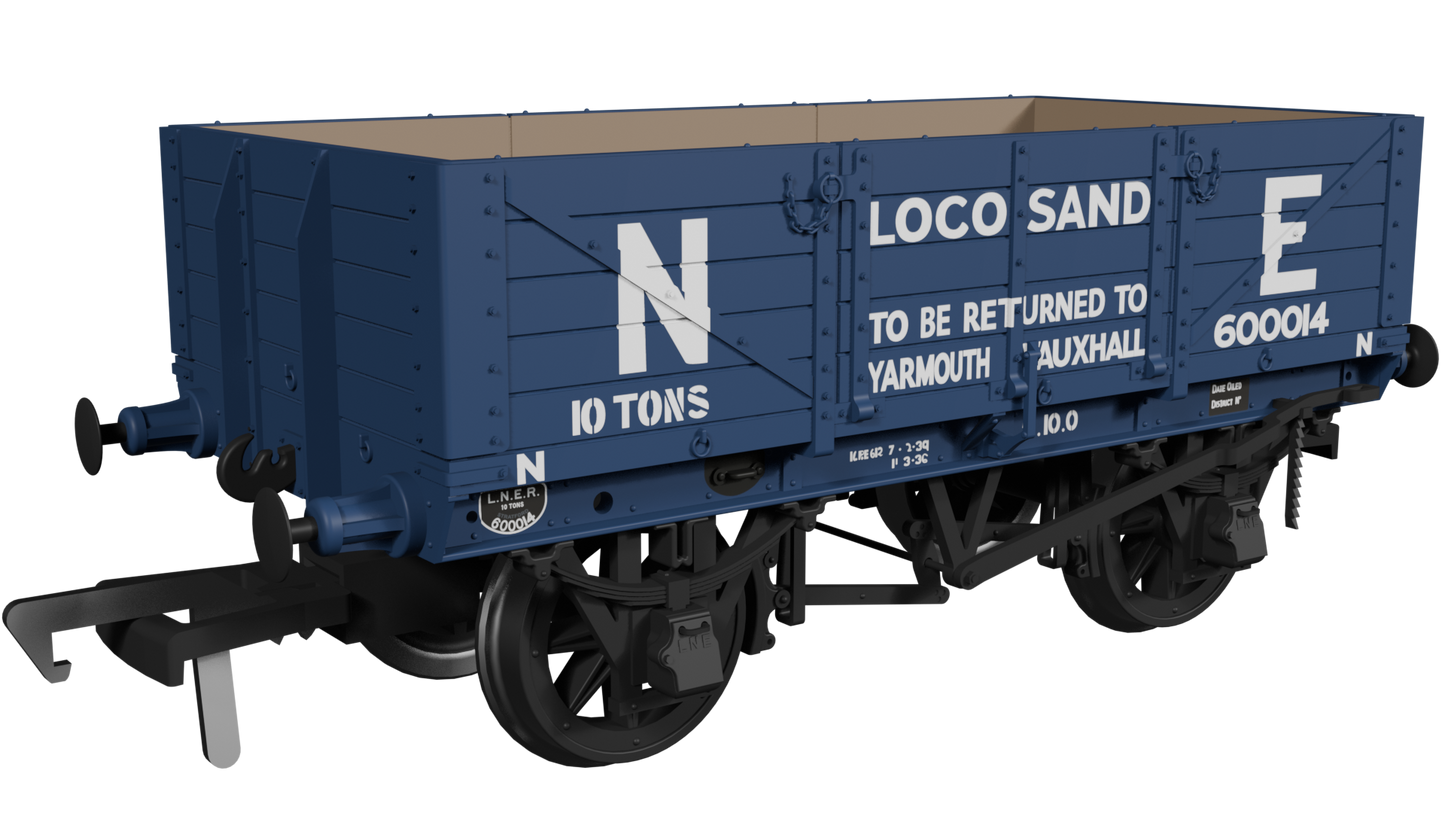

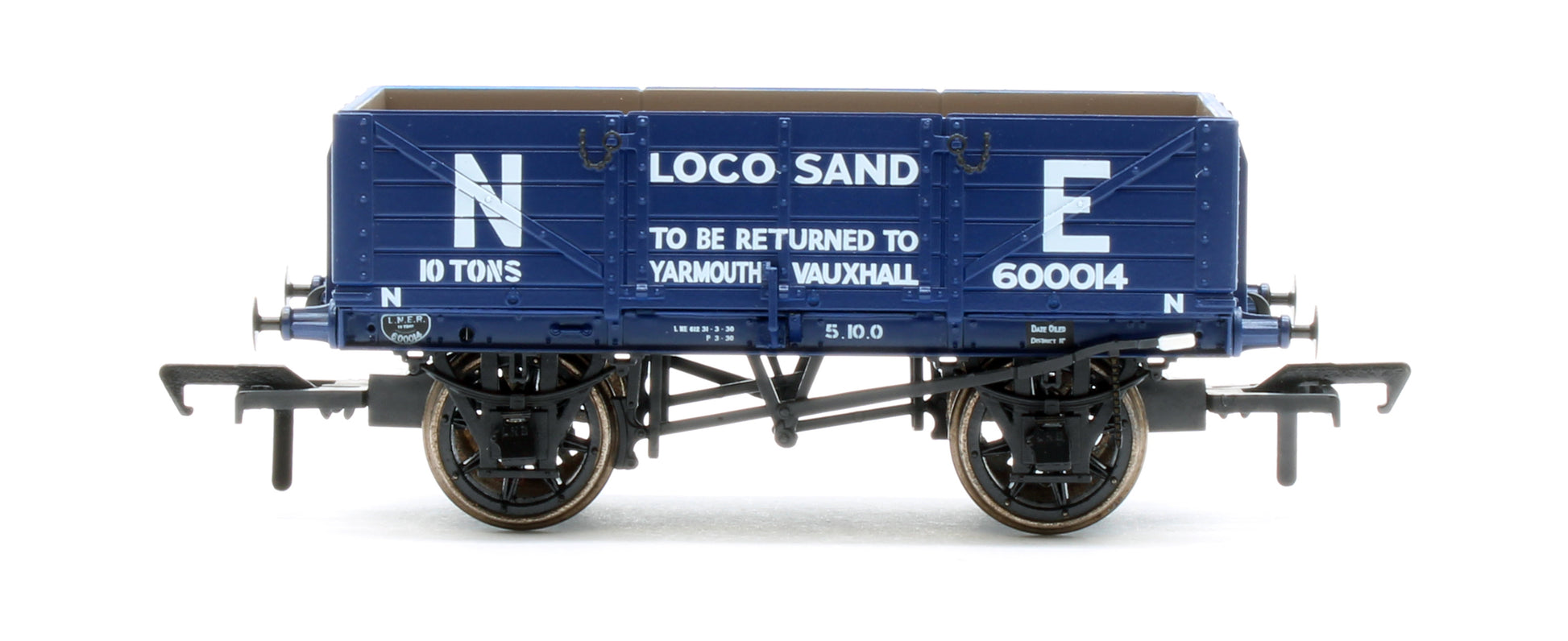

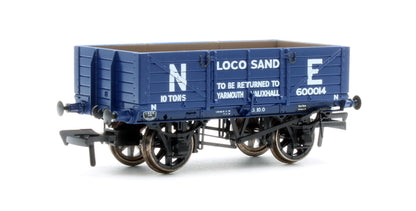

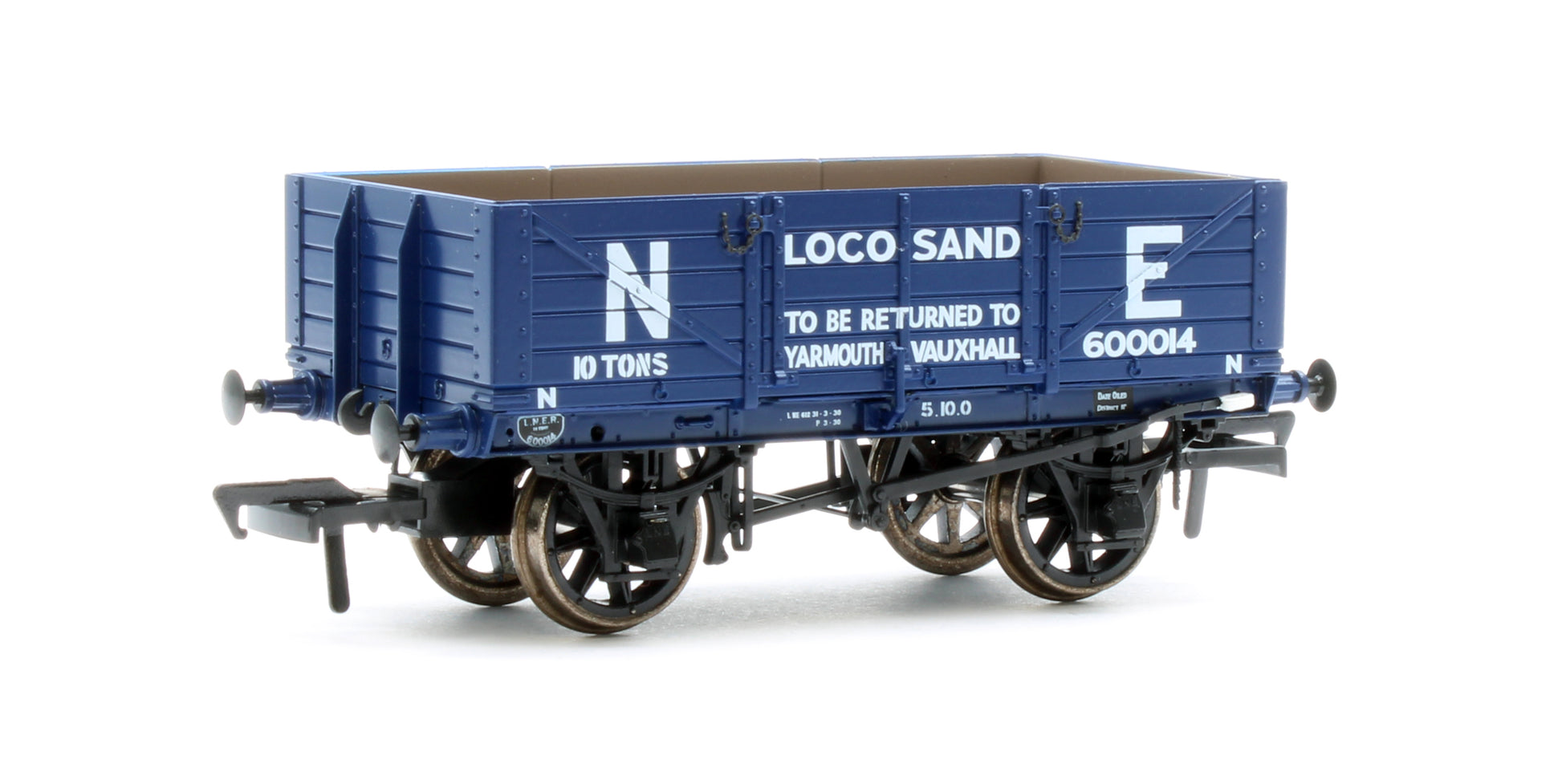

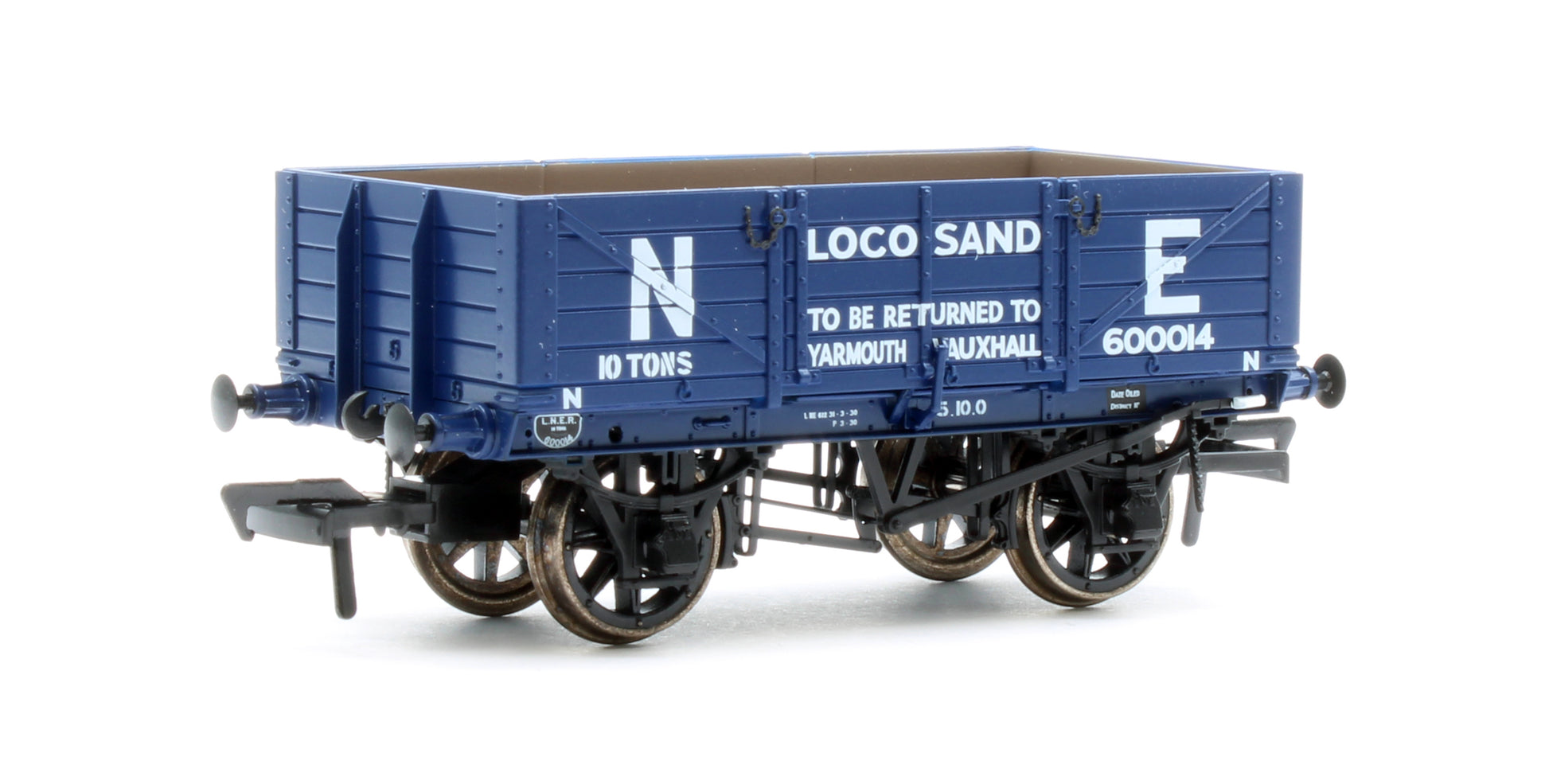

Rapido Trains UK 972014 GER Dia.17 5-Plank Open Wagon NE Loco No.600014

Designed to replace the ageing 8-ton and 9-ton timber framed wagons of the 1870s and 1880s, the Diagram 17s were a robust steel framed 5- plank wagon with a 9ft wheelbase, a set of doors on either side and an improved 10-ton load capacity. 12,050 examples were constructed between 1893 and 1903, accounting for 65% of the company’s wagons built during this period, and by the time the last one rolled off the production line they constituted 45% of the company’s total number of goods wagons.

In general use, they travelled way beyond the boundaries of the GER network delivering goods up and down the country.

Wagons of the same design were built for the Lancashire, Derbyshire and East Coast Railway by outside contractors. The GER had offered the LD&ECR financial and political support which helped the relevant Bills pass through parliament. There weren’t altruistic acts by the Great Eastern Railway, but made under the proviso that the company would have running powers over the LD&ECR system, with full access to the area’s rich coalfields.

In 1907 the LD&ECR was absorbed by the Great Central Railway, which acquired all of the company’s rolling stock, including those built to the GER design. Under their new owner, the wagons were repainted in the GCR livery and given new running numbers accordingly.

Wagons to both Diagrams 17 and 48 began to receive upgrades as various parts were damaged or worn out in service. During the Edwardian period, new open-fronted brake lever guards and ribbed buffers were introduced, and by the early 1920s some wagons had been fitted with a second brake lever, the Morton reversions clutch, and a third brake block.

Most of these wagons survived through to the grouping era, and under LNER ownership it was decided that those built from 1897 onwards had sufficient working life expectancy to be given a full range of improved parts as they passed through the Works for repairs. Any wagons in this category that were not already fitted with them were given B1-type oil axle boxes, ribbed buffers, and the improved brake gear.

More than 400 of the wagons survived Nationalisation, but increasingly their twilight years were spent allocated to major depots and yards in the Eastern region as internal use wagons, or in Departmental service serving a wide variety of roles including Signal & Telegraph, Permanent Way and even breakdown trains. Although the final examples had disappeared from revenue service by the mid-1950s, the Departmental and internal user wagons soldiered on into the 1960s.

The new Rapido Trains UK OO Gauge Great Eastern Railway wagons will feature body tooling variants to cover Dia.17 5-Plank, Dia.48 7-Plank, and Dia.48 7-plank conversion variants.

They offer the usual wealth of full external, internal, and underframe detail, including different brakes, door types, builder's plate styles, buffers, axle boxes, safety Loops, and brake lever guards. All models feature Great Eastern style 8-spoke wheels with distinctive retaining rings and are finished off with brass bearings, NEM coupling pockets and a high-quality livery application.

• GER Dia.17 5-plank open wagon
• LNER loco sand blue No. 600014

• Morton 3-shoe brakes with open ratchet (U safety loops)

• Monarch door mechanism

• Ribbed buffer housings

• LNER B1 axleboxes

• GER split-spoke wheels running in metal bearings

• High level of detail above and below the floor line

• High quality livery application

• NEM coupler pockets

• 1:76 scale, (OO gauge)

• UK designed
