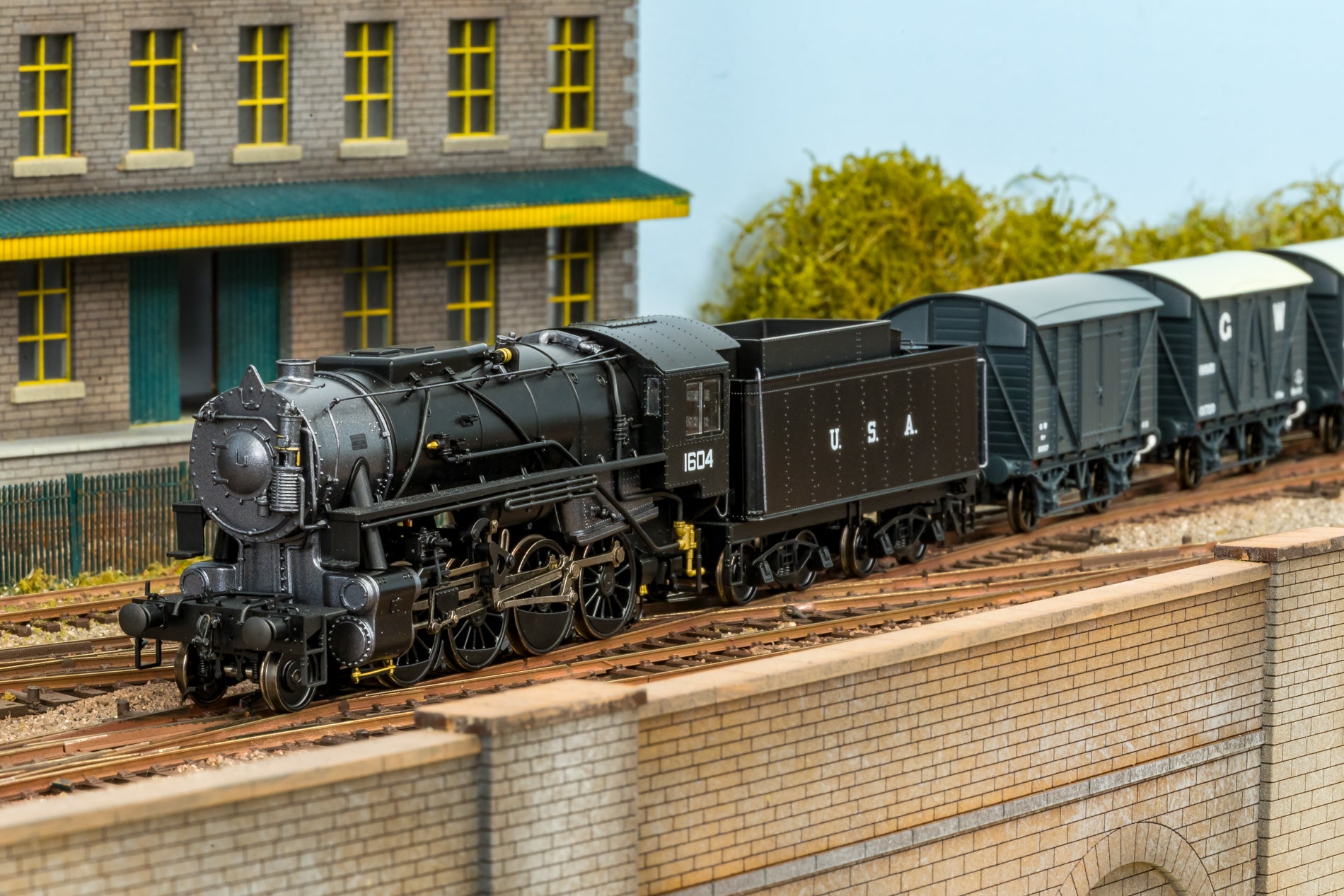

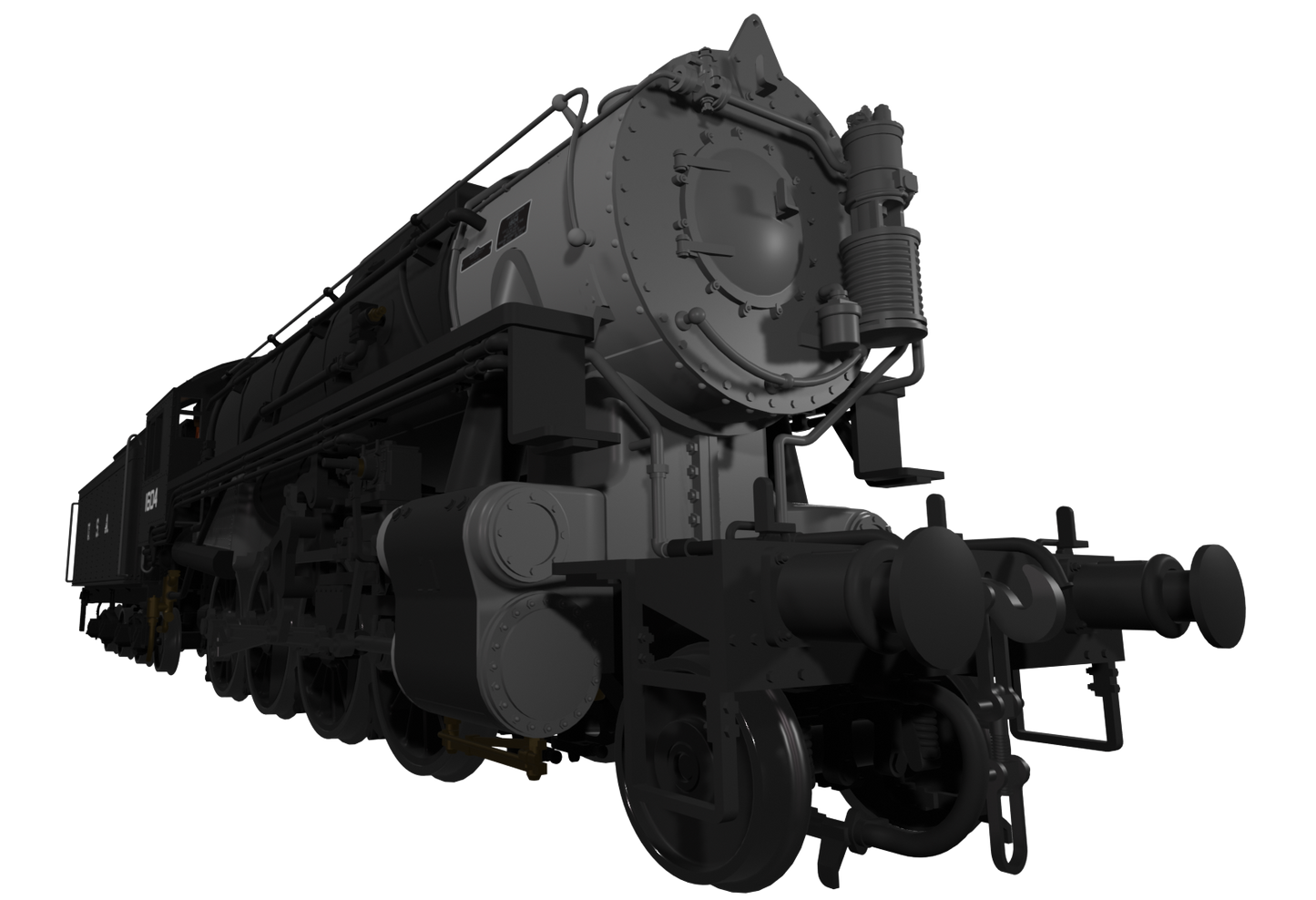

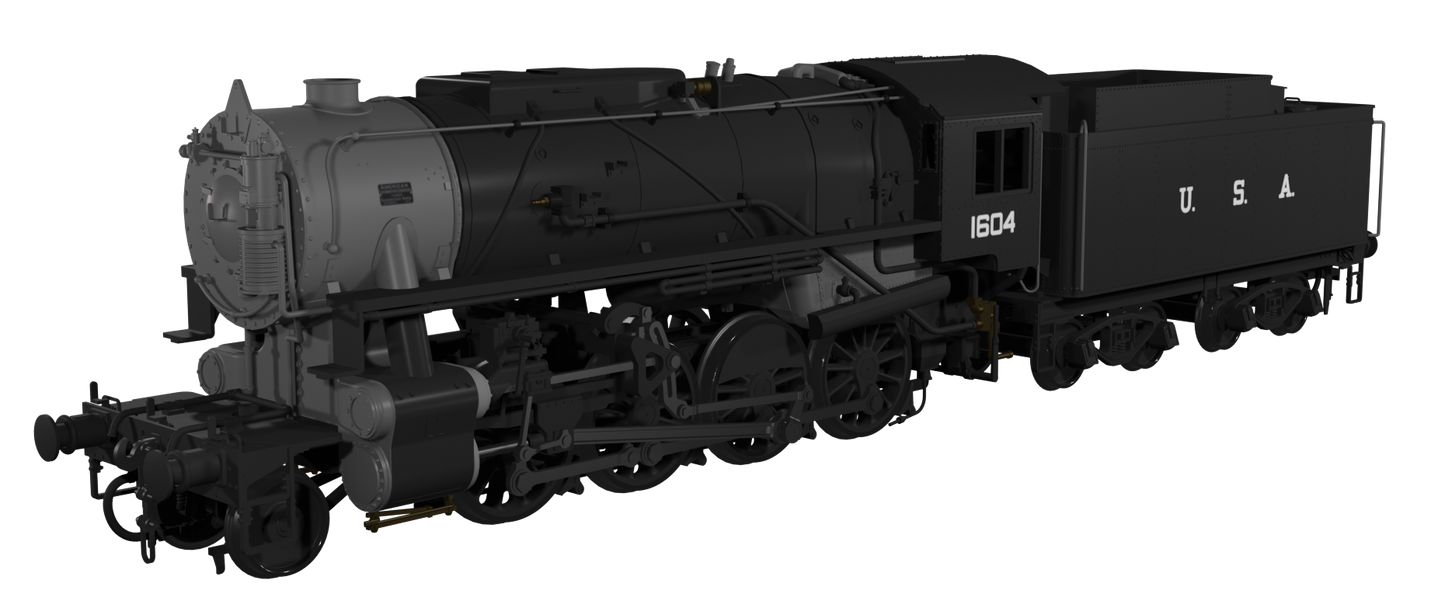

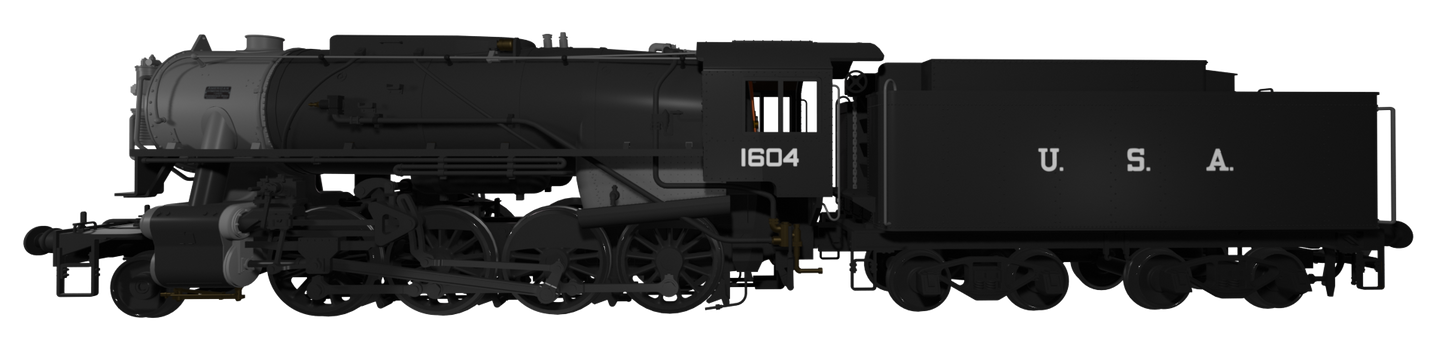

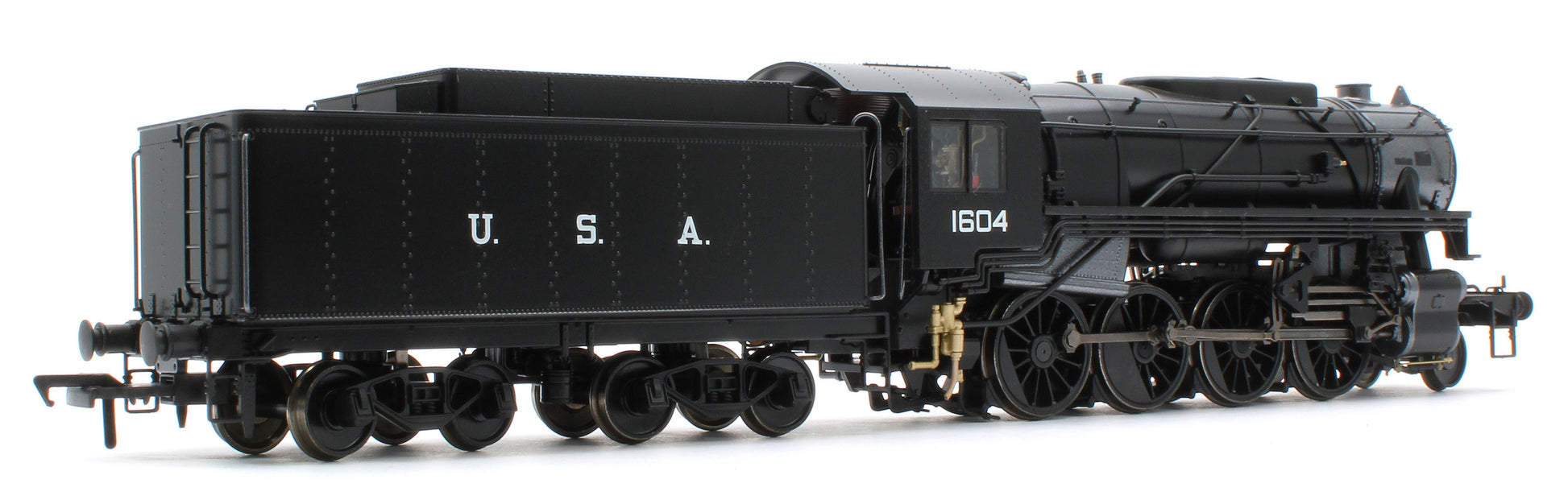

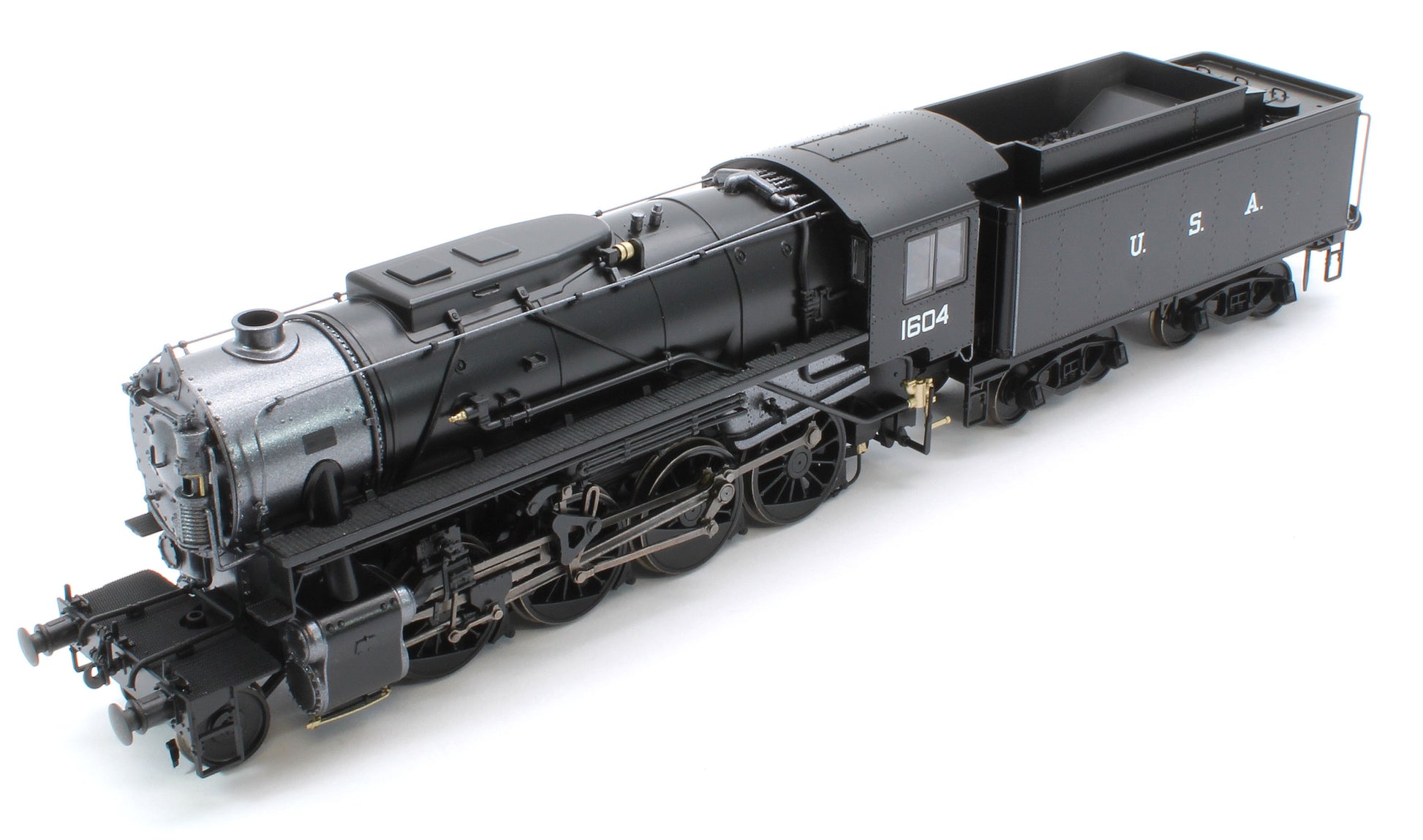

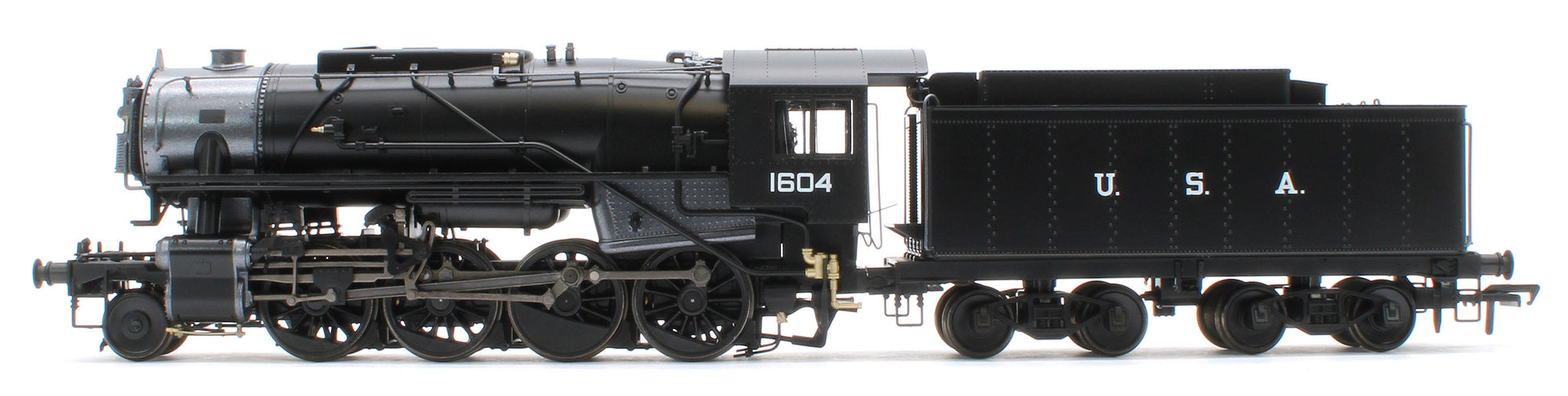

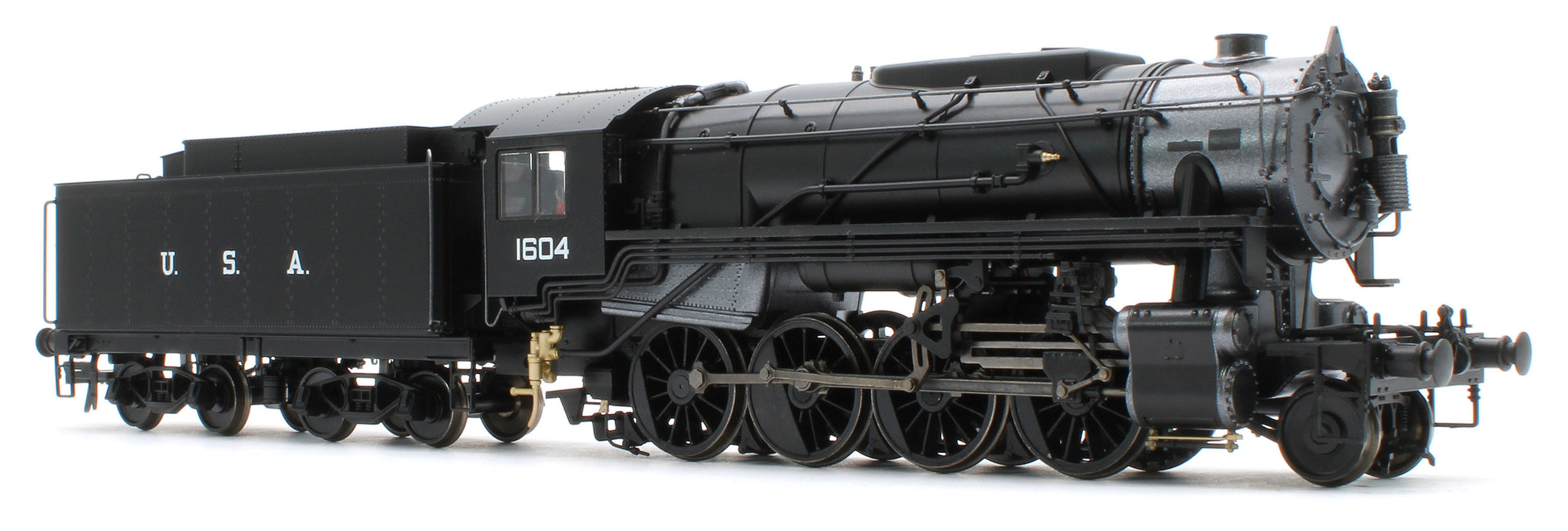

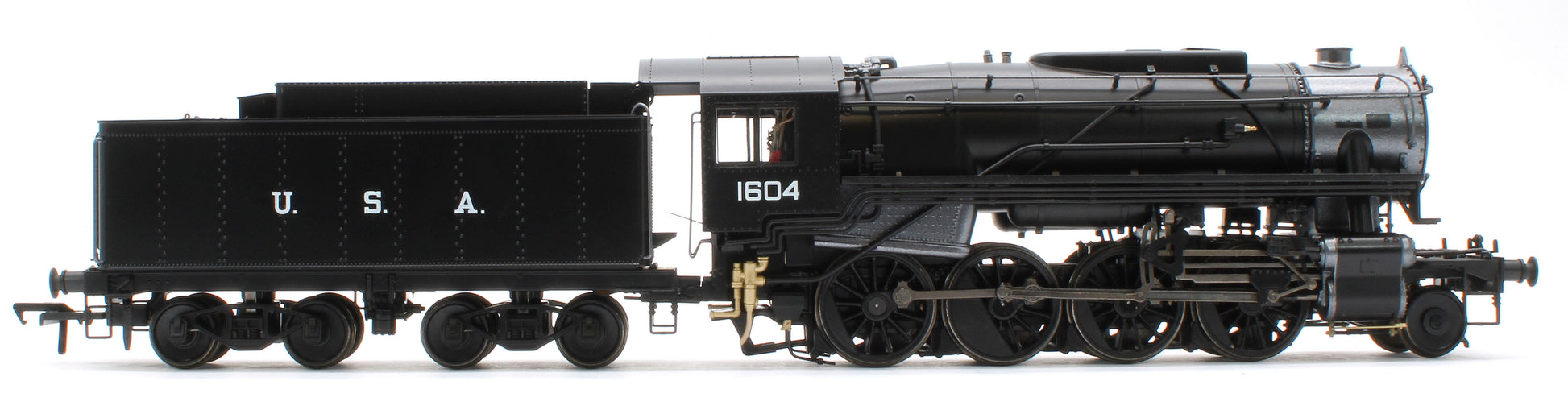

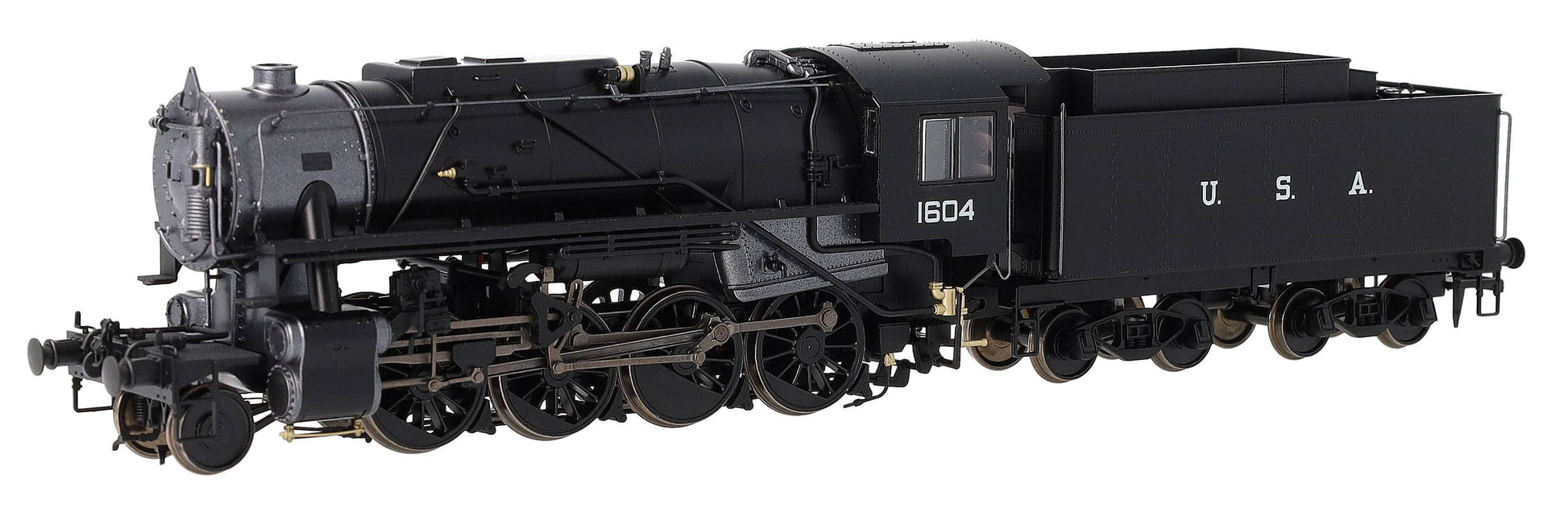

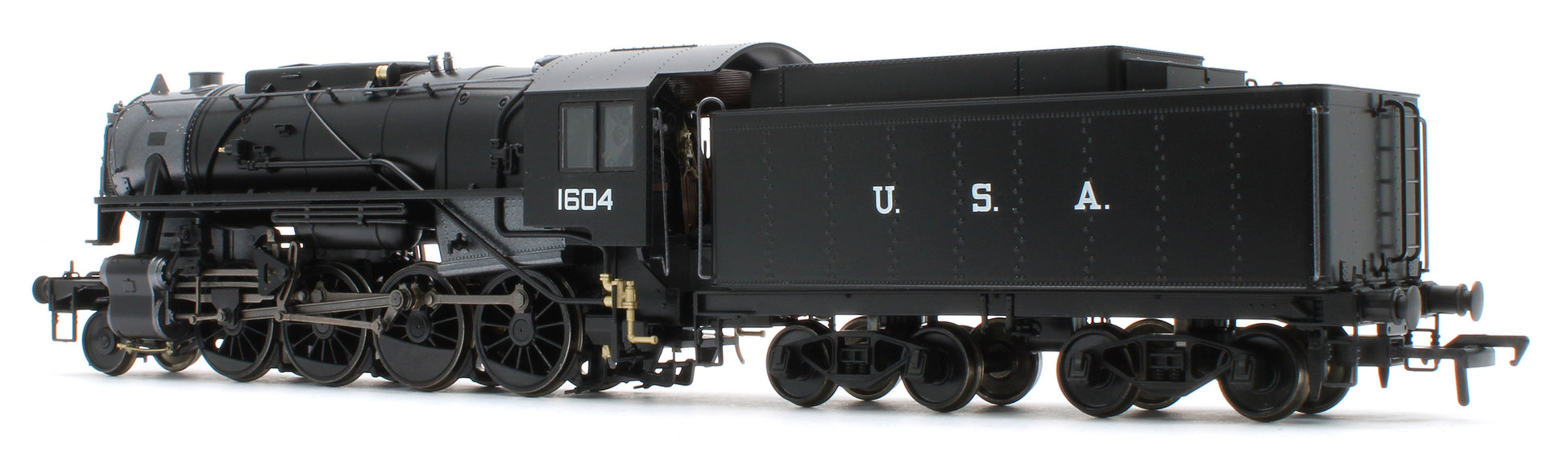

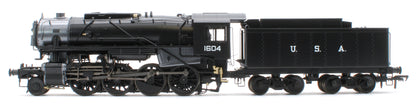

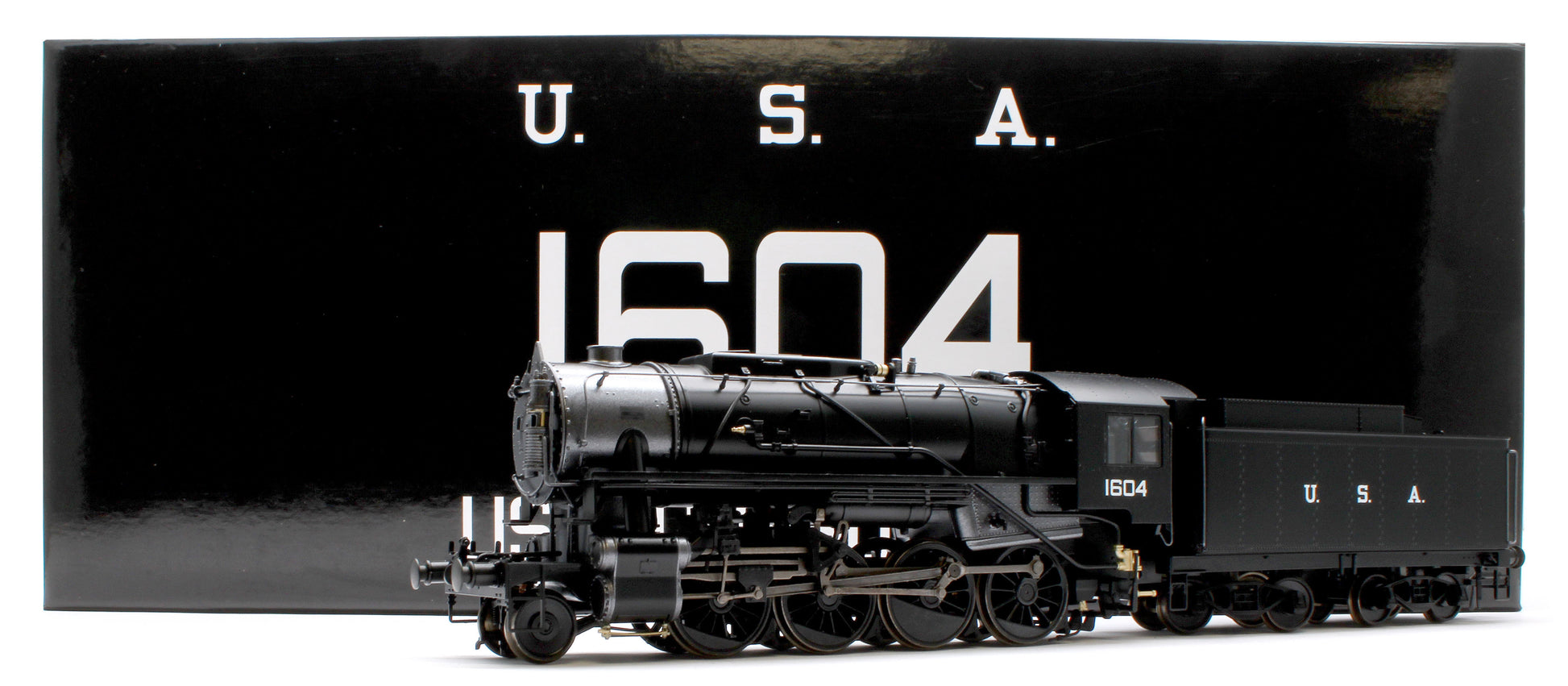

Rapido Trains UK 926501 USATC S160 2-8-0 GWR Wartime Black U.S.A on Tender No.1604 Steam Locomotive - DCC Sound

Expected Delivery Late 2025 (Subject to change at Manufacturer's Discretion).

No.1604 had the honour of being the first S160 to be displayed publicly when on the 11 th December 1942 it was exhibited at Paddington station and officially handed over to Lord Leathers (Minister of War Transport) by Colonel N.A. Ryan (Chief of Transportation, US Army). Overall, the GWR had the largest number of S160 locomotives on loan, with a total of 174 locomotives operating across the GWR network. No.1604 was allocated to the Newport Ebbw Junction prior to transfer to the continent and use by the SNCB before scrapping in 1946/7.

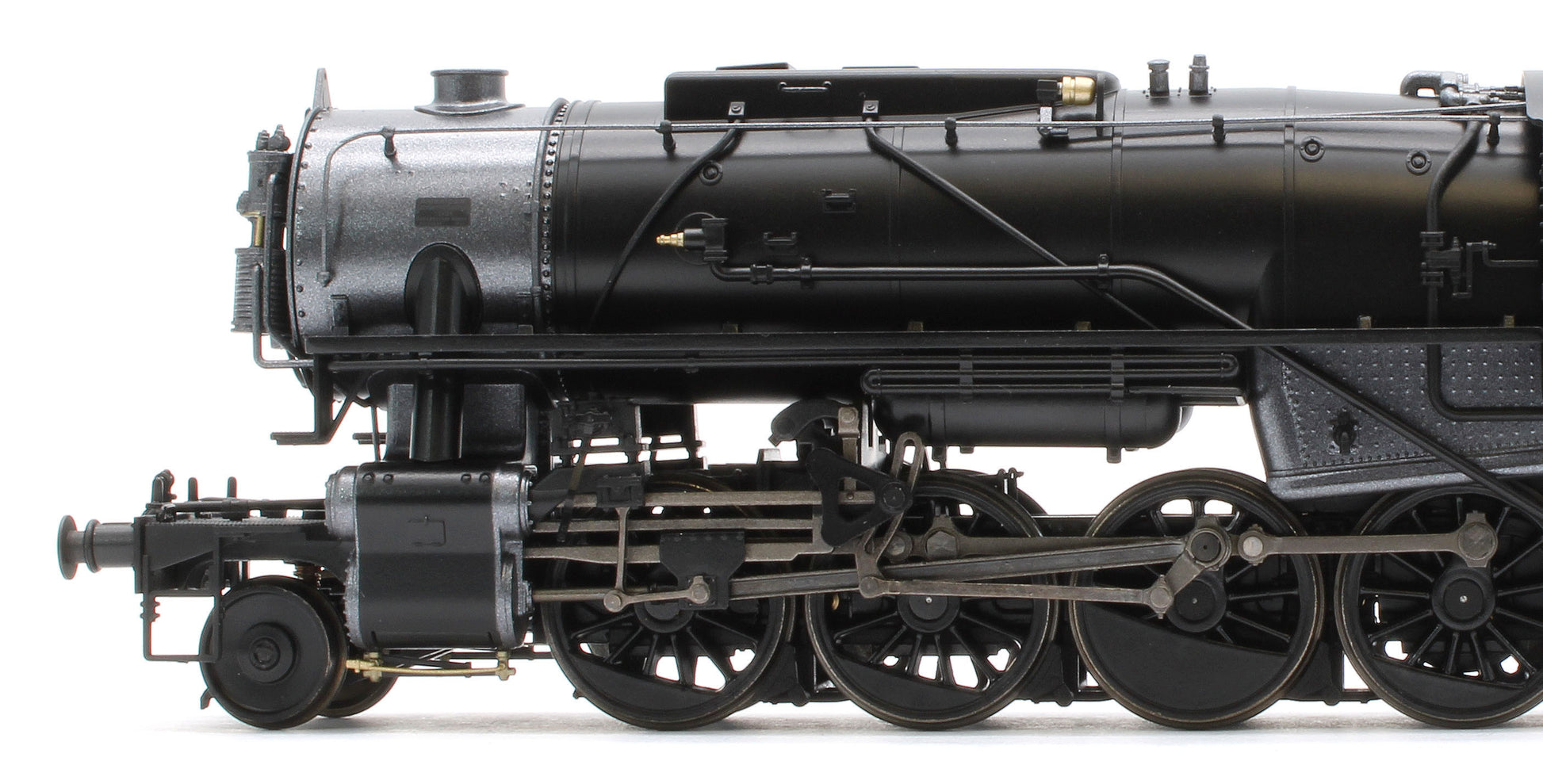

Tooling variations

• GWR lamp irons

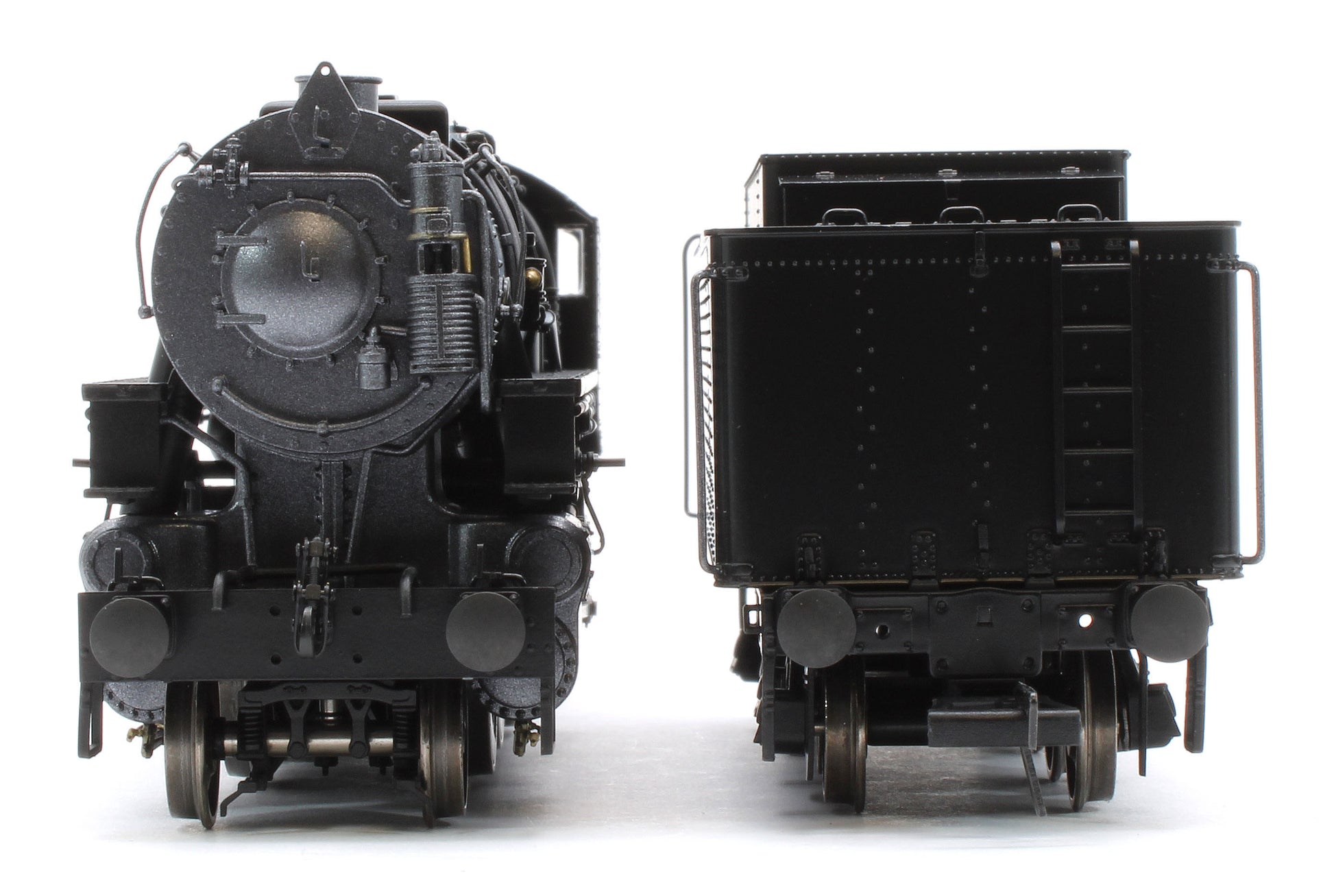

• Straight strap smokebox door fitted with GWR lamp iron

• Westinghouse air pump

• Pipework mounted behind chimney

• Straight running boards

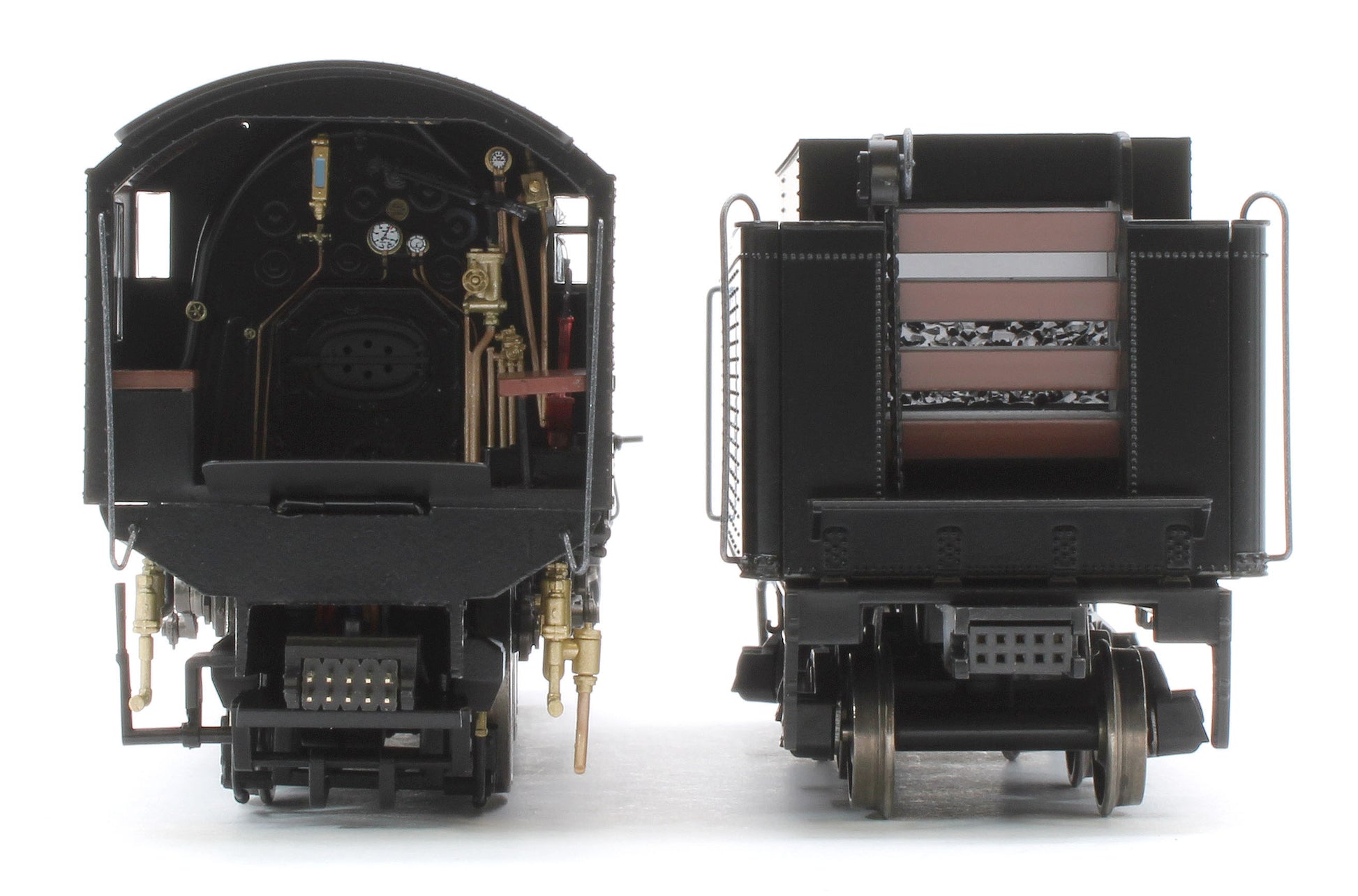

• Right hand drive with pole reverser and original pattern firehole door

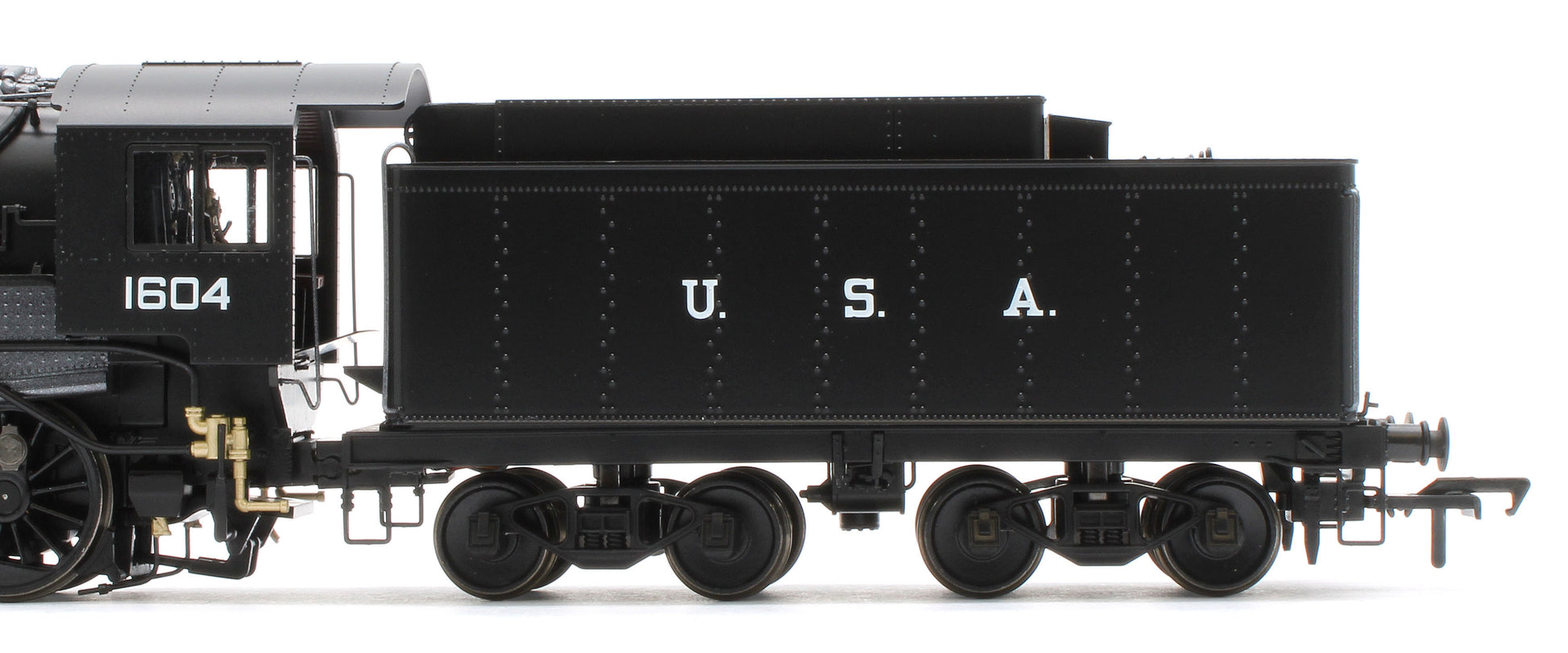

• Standard wartime tender

• Boiler-mounted ejector pipe fitted


Features

• Two factory-fitted speakers, one in the loco and another in the tender.

• Dual LED firebox glow with dynamic fire draw effect.

• Twin flywheel motor.

• Detachable loco-to-tender connection.

• Pickups fitted on both the loco and tender.

• 21-pin DCC Sound Fitted.

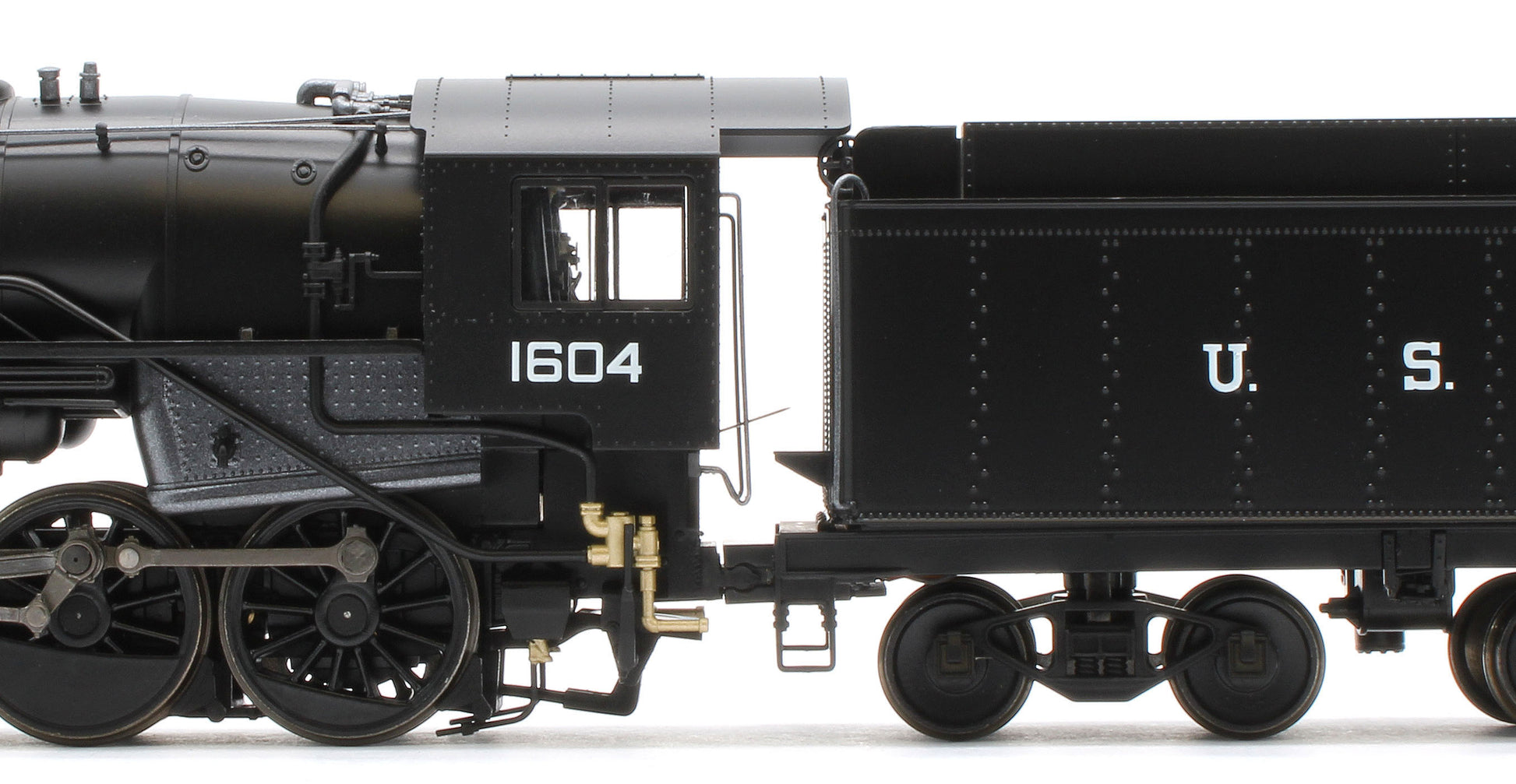

Livery - Black (satin) with U.S.A. on tender.

Manufacturer - ALCO – Schenectady - 1942

Shed allocation and region - Newport Ebbw Junction (NPT) - GWR

Date of model - December 1942

History:

“In the days to come the British and American peoples will for their own safety, and for the good of all, walk together side by side in majesty, injustice, and in peace.” -Winston Churchill addressing a joint session of the US Congress, 26 December 1941.

The year is 1942, the world is at war and the United Kingdom has limited resources to combat the enemy, let alone launch an invasion of the European mainland. What is available is becoming stretched far too thinly, including the nation's railways. Due to years of consistent bombing, the railways were struggling to cope with the increased traffic and locomotives and rolling stock were in short supply. Thankfully our American Allies stepped up, aiding us in our hour of need.

Despite having joined the fray themselves in late 1941, and needing resources to pursue their own goals, they managed to reinforce the UK with a multitude of supplies, including a fleet of one of the most iconic locos to run on Britain’s Railways, the S160, a spectacular 2-8-0 powerhouse!

Designed by Major J. W. Marsh from the Railway Branch of the Corps of Engineers, this all-American loco had to fit the more restrictive loading gauge of the UK. They had to be easy to build, quick to repair and reliable. Taking inspiration from its predecessor the S200, and the British WD Austerity 2-8-0, the S160 lacked the finesse of many of the British locomotives it would work alongside, but other than a few teething problems and operational challenges it met its brief perfectly.

Constructed in the United States in multiple batches from 1942 to 1945, they were split between the ALCO, Baldwin, and Lima Locomotive Works. Collectively, almost 800 locomotives were shipped to the UK. Landing mainly in Newport, South Wales, as well as Birkenhead, Glasgow and London, the locomotives passed through major workshops before being sent on to the respective railway company. The first 396 were assigned to the 4 railway regions of the era and under the guise of them being run in, 174 were issued to the Great Western Railway, 168 to the London & North Eastern Railway, 50 to the London, Midland and Scottish Railway, and a much more modest 6 to the Southern Railway. The final 400 UK-issued locos were also stored in South Wales, where they were kept as part of the D-Day preparations. With the invasion on the horizon, June 1944 saw the stored engines sent for servicing and processing, all leaving by early September 1944.

Between 1942 and 1945 a whopping 2120 S160s were built by our American friends, these remaining locomotives along with those stored and gathered locos in the UK, were shipped to mainland Europe and further afield to facilitate wartime supply trains, aiding our European neighbours who had also had their railways ravaged by 6 years of conflict, and ensuring the Allied war effort prevailed.

Until the days of preservation, the only S160 retained in the UK post-war was WD 93257 (later No.700) Major General Carl R Gray Jr, used to train military personnel in driving and caring for steam locos at the Longmoor Military Railway.

Following WW2 the S160s were scattered across the globe, from China to Hungary. Whilst in the ownership of a plethora of different railways they were often refitted to accommodate their owners' needs. As time went on the original shape and details of many of the locos would evolve, which was in part, due to the interchangeable nature of their original design. Eight locos have been repatriated to the UK in preservation and all of them are different from their counterparts, some more subtly than others.

Despite all having key visual differences, several of the preserved versions have been returned to running order, with no less than three examples currently in operation with a number of others under restoration.
