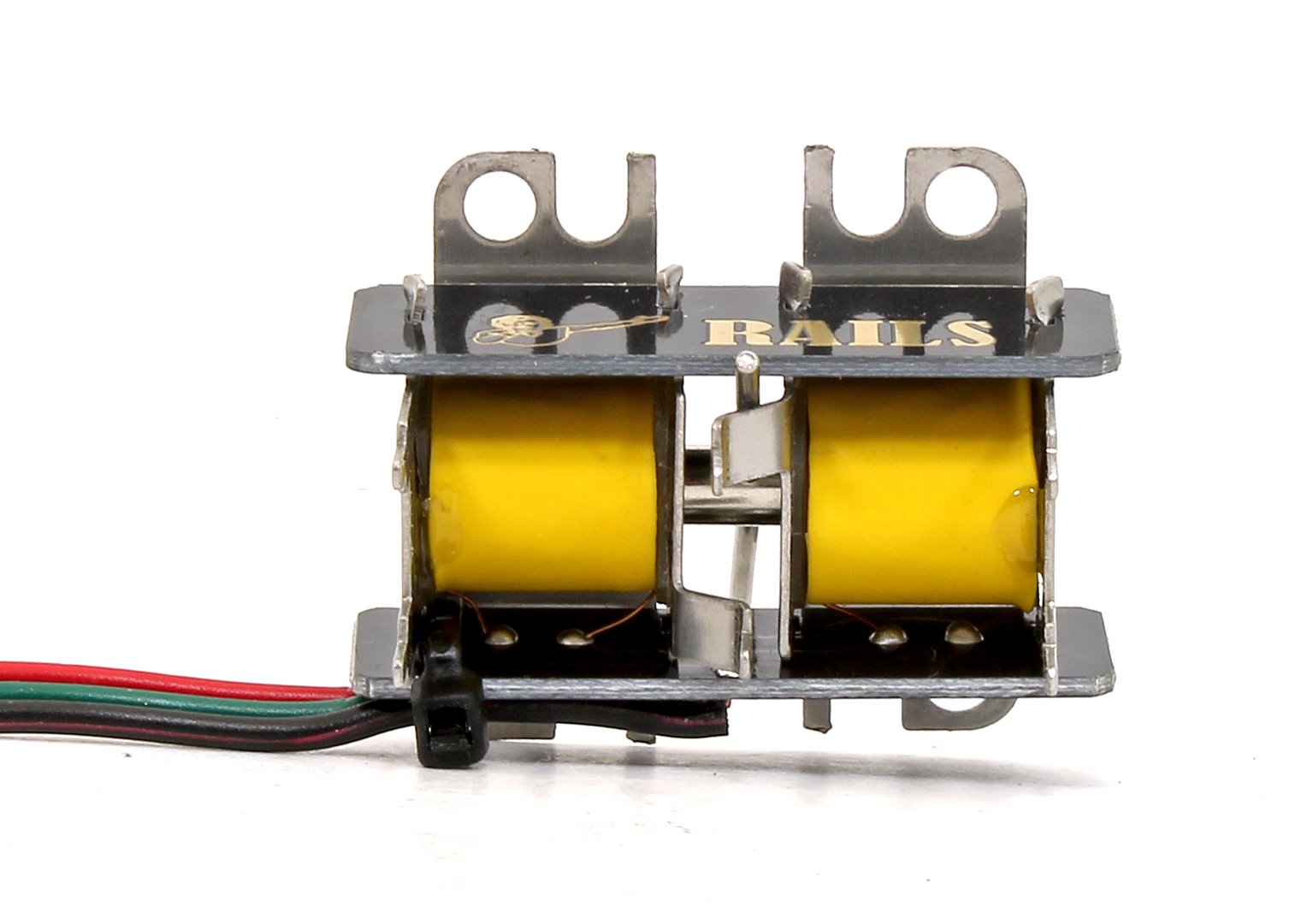

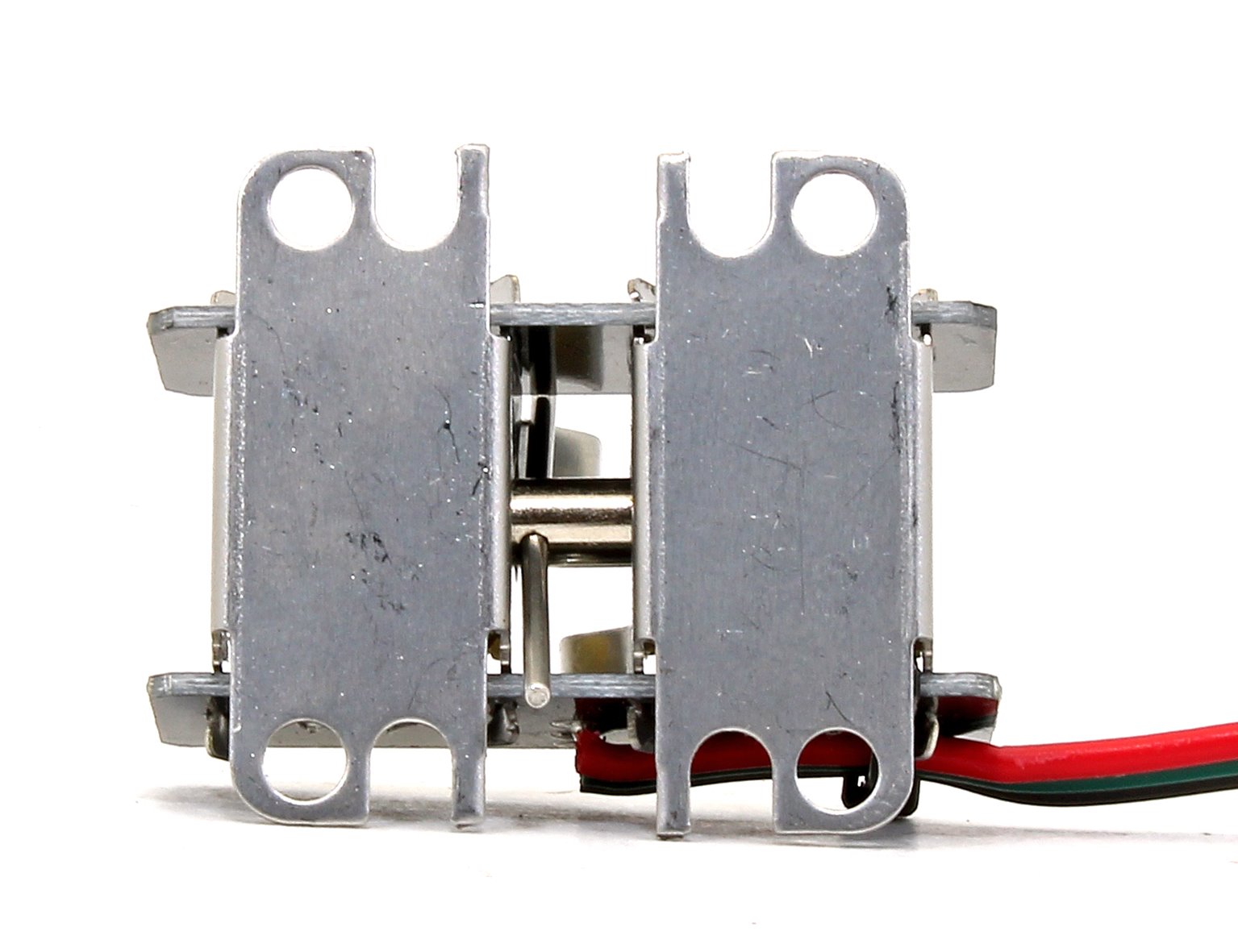

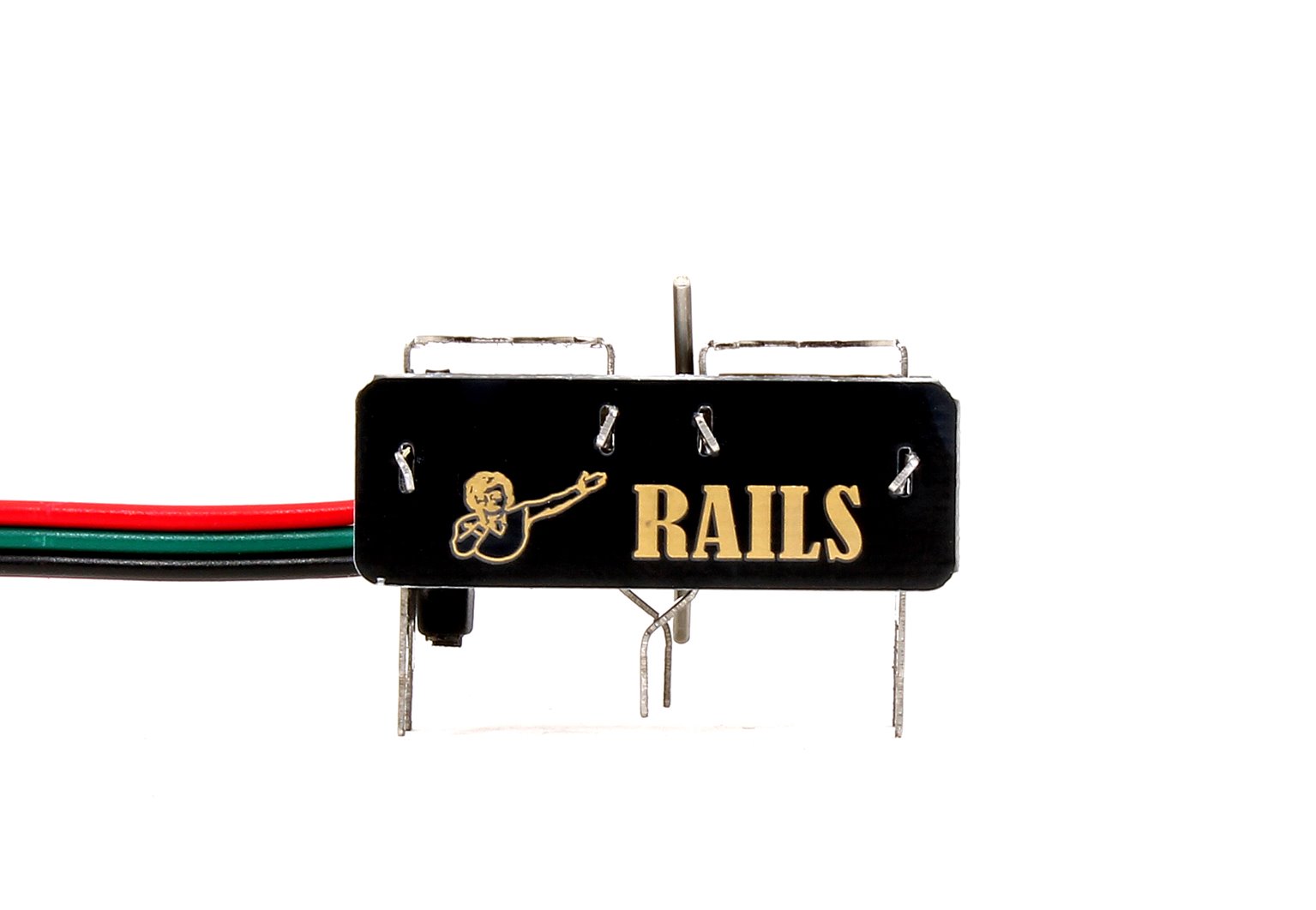

RPM-UBD.1 Rails Connect High Efficiency Under Board Stainless Steel DIGITAL Point Motor (Single Pack)

  • £16.95
    Unit price per
  • £11.00
UK Tax included. Shipping calculated at checkout.
Availability: In stock

Product Description


Rails Connect Point Motors - A range of super high quality analogue and digital solenoid point motors designed with you in mind!

Crafted for Rails by DCCconcepts.


  • Stainless Steel frames - being in Sheffield, what else would we use?
  • 8 screw mounting points to give ultimate flexibility and ease of installation
  • Fits directly to the point with 6 legs that can connect to OO/HO and N points
  • Pre-wired, stripped and tinned - no soldering needed!

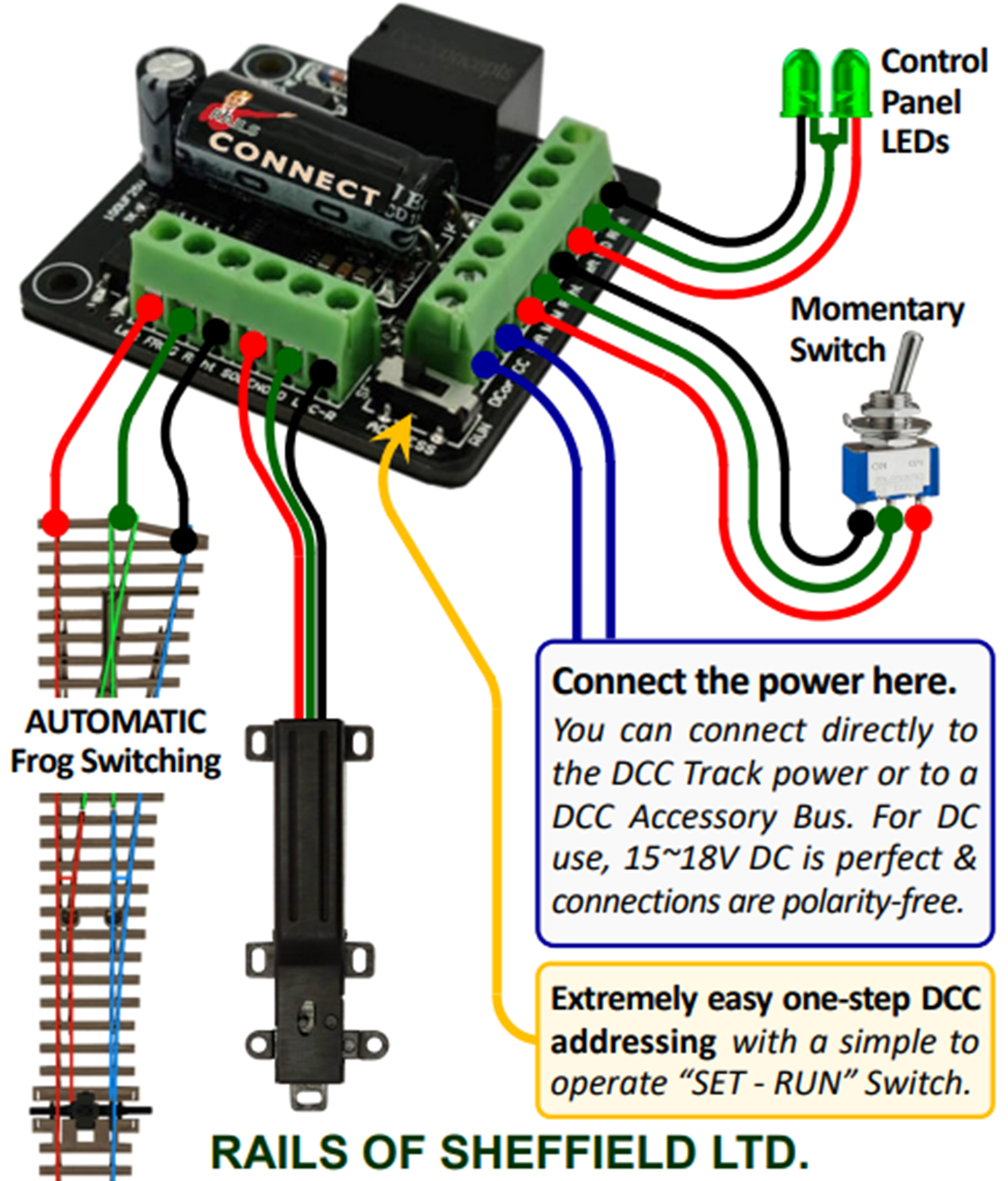

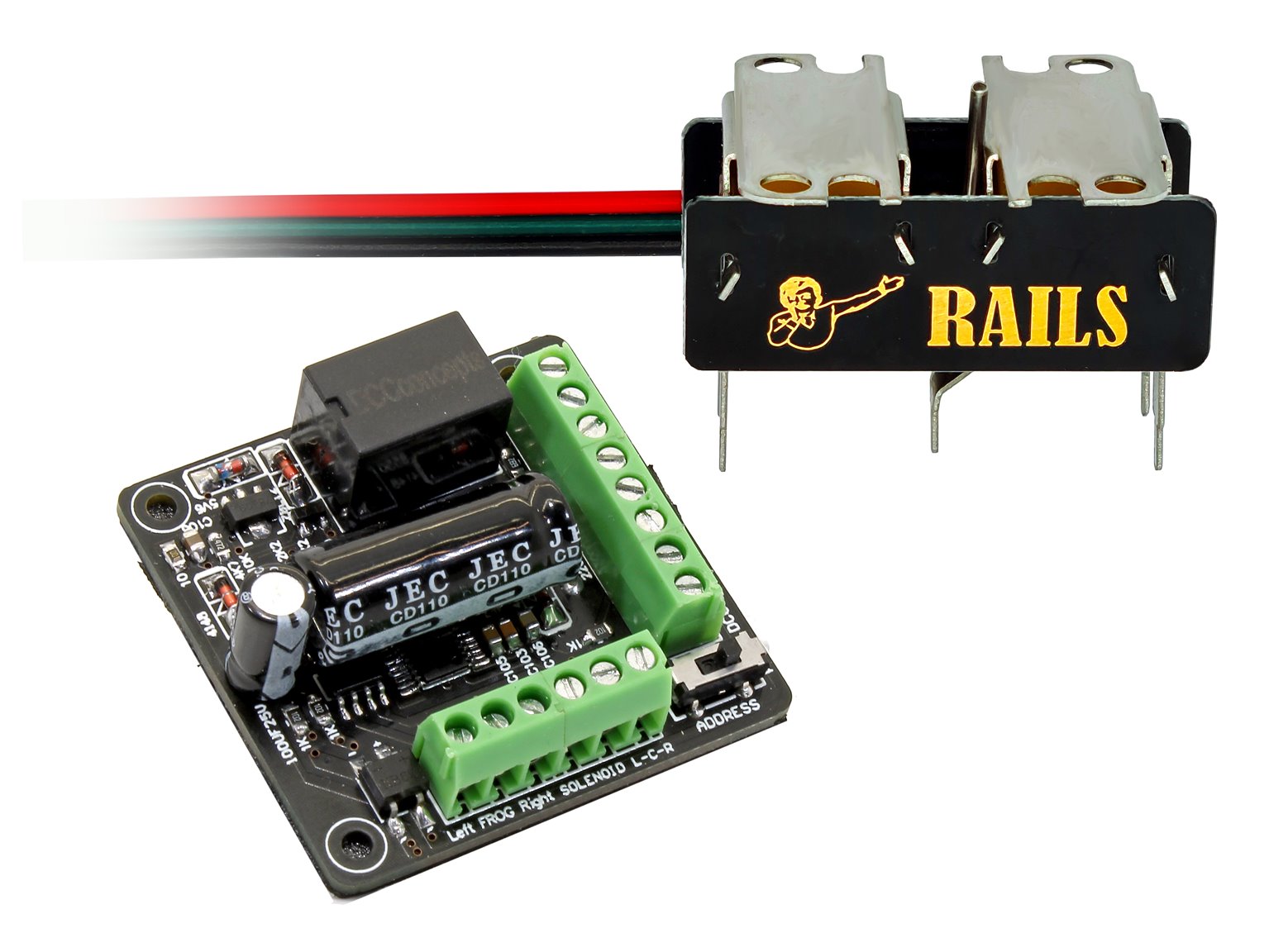

  • High-power accessory decoder with frog-switching included - just connect to your DCC bus or to 15-18V DC!

Dimensions (measured at widest points including connection lugs):

  • Length = 37mm
  • Width = 30mm
  • Depth = 25mm (not including pin)
  • Extension Pin = 30mm
