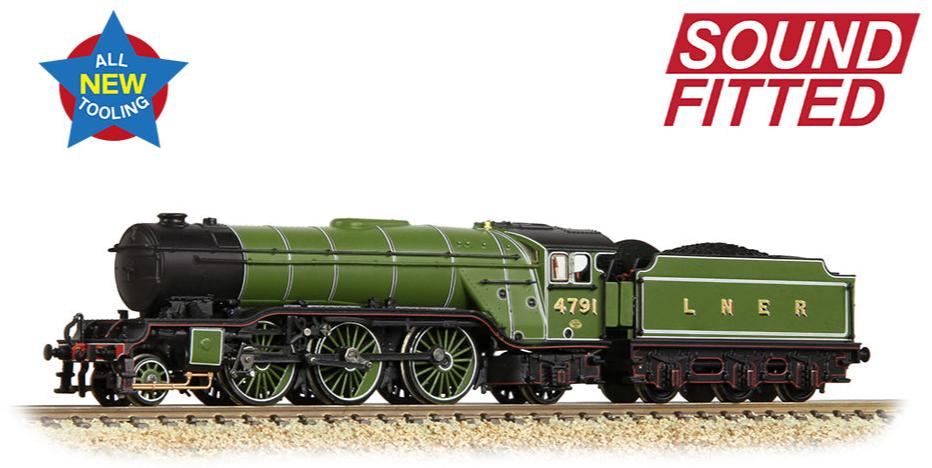

Graham Farish 372-610SF LNER V2 4791 LNER Lined Green (Original) Steam Locomotive - DCC Sound

Expected Delivery October / November 2024 (Subject to Change at Manufacturer's Discretion).

Some twenty years since the V2 was first produced in N scale by Graham Farish, this all-new model of the LNER Mixed Traffic icon is made to standards not even dreamt of twenty years ago. Often described as ‘the engines that won the war’, these new Graham Farish models are sure to win the heart of any discerning N scale enthusiast. Depicting one of the LNER’s most successful steam locomotive designs, this masterpiece in miniature captures the look and the character of the prototype to a tee. With highly detailed mouldings and many separate parts used on both the locomotive and tender, including era- and prototype-specific detailing to allow accurate models of any given class member throughout their working lives, the performance of these new V2s is just as impressive as their appearance.

A powerful coreless motor and flywheel is incorporated into the diecast locomotive chassis, powering the driving wheels which run in separate metal bearings. With electrical pickup from the driving wheels and tender wheels and the option to have traction tyres fitted to one driving wheelset, this new V2 is on a steady footing as soon as it hits the rails. Supplied complete with SOUND FITTED, this model will provide realistic sound effects on both analogue and DCC straight out of the box!

• Graham Farish N Scale
• Era 3
• Pristine LNER Lined Green (Original) livery
• Running No. 4791
• SOUND FITTED – Fitted with a Zimo MS590N18 DCC Sound Decoder – See below for the function list
• Length 141mm



DETAIL VARIATIONS SPECIFIC TO THIS MODEL

• Original ‘Monobloc’ Cylinder Casting with Inside Steam Pipes
• LNER Smokebox Door without Numberplate and with Lower Top Lamp Bracket
• Later Style Rocker Arm Guides
• Group Standard Tender with High-Front/Low-Rear Coal Space Dividers



GRAHAM FARISH LNER V2 SPECIFICATION

MECHANISM:

• Coreless motor with flywheel
• Electrical pickup from all driving and tender wheels
• Separate metal bearings fitted to each driving wheel axle
• Metal bearings fitted to each tender wheel axle
• Diecast metal chassis block
• Gearing arranged for prototypical running speeds and haulage capabilities
• 9mm (N gauge) wheels to NEM310 standards with authentic profile and detailing
• Sprung front pony truck
• Cartazzi truck with flanged wheelset (with side swing for operational necessity)
• Optional traction tyres fitted to the rear driving wheels (replacement wheelset without traction tyres supplied in the accessory pack)
• Valve gear of metal construction
• Discreet fixed locomotive to tender drawbar with integral electrical connections
• Coupling pocket to NEM355 standards fitted to the front pony truck
• Removable coupling pocket to NEM355 standards fitted to the tender chassis
• Designed to operate on curves of second radius (263.5mm) or greater

DETAILING:

• High-precision, injection-moulded bodyshell, running plate and tender with separately fitted details parts including lower front lamp irons, lubricators, reverser and sandbox fillers
• Separately applied metal components including handrails, lifting eyes, buffers and sand pipes
• Water scoop, tank filler, cylinder and rear lamp iron added to the tender as separate parts
• Tender fitted with metal coal-effect load
• Detailed cab interior including boiler backhead controls and gauges, driver’s and fireman’s seats, brake standard and water scoop standard
• Hinged and posable metal fall plate between the locomotive and tender
• Each model supplied with a full set of accessory parts including dummy coupling hooks, coupling bash plate, guard irons, cylinder drain cocks, and cab & tender doors

DCC:

• Next18 DCC decoder interface located in the tender

SOUND:

• Speaker installed in the tender of all models for optimum sound reproduction
• Zimo MS590N18 DCC Sound Decoder fitted to SOUND FITTED versions
• Sound files produced specifically for the Graham Farish LNER V2 Class using recordings from real locomotives
• SOUND FITTED models operate on DCC and Analogue control as supplied

LIVERY APPLICATION:

• Authentic liveries applied to all models
• Multiple paint applications employed on each model using LNER and BR specification colours
• Logos, numerals and text added as appropriate using multi-stage tampo printing using authentic typefaces, logos and colours
• Named locomotives are supplied with pre-fitted, fully decorated nameplates

SOUNDS

F1 - Sound - On/Off

F2 - Brake

F3 - Cylinder Drain Cocks

F4 - Single Whistle (Speed Related)

F5 - Reverser

F6 - Coal Shovelling

F7 - Injector

F8 - Blower

F9 - Flange Squeal (Speed Related)

F10 - Safety Valves Lifted

F11 - Handbrake

F12 - Water Tank Filling

F13 - Coupling/Uncoupling

F14 - Light Engine Mode

F15 - Fade All Sounds

F16 - Guard's Whistle & Response (Toot & Vocals)

F17 - Automatic Wagon Buffering

F18 - Unfitted Freight Mode

F19 - Pinned Brakes (F18 must be On)

F20 - Detonators

F21 - Short Whistle (Toot Toot)

F22 - Long Duration Whistle

F23 - Medium Duration Whistle

F24 - Vocals

F25 - Vocals

F26 - Driver to Guard Instructions (5 options, selectable via CV changes)

F27 - Volume Down

F28 - Volume Up

Analogue Users: Please note that normal load running sounds and any other automatic or randomised sounds will also operate when this model is used on analogue control (DC) straight from the box!

LNER V2 CLASS HISTORY

Faced with a growing threat to its freight traffic from road transport, in 1928 the LNER launched its ‘Green Arrow’ express goods services, a new range of fast, fully brake-fitted, long-distance goods, parcels and perishables trains. To haul these services a top link locomotives were required and at first, A1 and A3 Class ‘Pacifics’ were employed along with the LNER’s K3 2-6-0s, although the K3s were not suited to the high speeds required for the ‘Green Arrow’ services. With the Pacifics required for passenger work, in 1935 the LNER announced its intention to develop a new locomotive for long-distance, mixed traffic work and the following year the first of Sir Nigel Gresley’s V2 Class entered traffic.

Following the convention of naming a locomotive after the named train it was principally employed on, the first V2 was named ‘Green Arrow’. Another convention not followed by the V2 however was that of the wheel arrangement, with the V2 using the 2-6-2 ‘Prairie’ wheel arrangement which in Great Britian was generally the preserve of tank locomotives, with other ‘Big Four’ railway companies generally using the 4-6-0 formation for their larger mixed traffic machines. The 2-6-2 wheel arrangement accommodated a wide firebox, the same type used so successfully on Gresley’s Pacifics and P1/P2 ‘Mikados’, and whilst visually the V2s had many similarities to the Pacifics, their similarities to the P2s were in many ways their crowning features, including 6ft 2in driving wheels, v-fronted cab, and monobloc cylinder castings.

Four more locomotives emerged soon after ‘Green Arrow’, and such was their success that a further 179 were quickly ordered. Despite the outbreak of the Second World War, construction continued of what was to become an important contributor to the war effort. Whilst services such as the ‘Green Arrow’ goods trains were suspended in wartime, the V2s were employed plentifully moving goods, people, mail, parcels, troops and munitions far and wide. Their performances on lengthened passenger trains were notable, often hauling trains much heavier than what the class had been designed to haul, and at speed too. Such was their contribution to the British transport network between 1939 and 1945 that the V2s later became known to many as ‘the engines that won the war’.

Once peacetime returned, the V2s went back to hauling fast freight and passenger services across much of the LNER network. Many were deployed to the former Great Central routes and in Scotland and in both areas, the Class would become a stalwart until the final days of steam. Notable modifications made to the V2s during their operational years include the replacement of the monobloc casting with three separate cylinders – 71 engines were so treated between 1956 and the final withdrawals in 1966. Several types of chimneys were experimented with; one locomotive received a lipless single chimney and three others trialled separate versions including a double blast pipe borrowed from the LMS ‘Royal Scot’ 4-6-0s. Ultimately, the Kylchap exhaust was trialled and proved successful, so much so that it was recommended the entire class should be fitted, however the onset of dieselisation meant only five locomotives received the new exhaust and associated double chimney.

Withdrawals began in 1962 and in December 1966 the final V2 was taken out of service. Class pioneer ‘Green Arrow’ was one of the first locomotives to be withdrawn, however its future had already been secured as it was selected for preservation as part of the national collection and following withdrawal, ‘Green Arrow’ was restored at Doncaster Works. Returning to the mainline during the 1970s, ‘Green Arrow’ went on to be a popular performer on both the national network and heritage railways until 2008 when she was withdrawn from service with a boiler failure. Notwithstanding the work required to repair the boiler, it is a crack in the monobloc cylinder casting which is the greatest challenge that would need to be overcome if the locomotive were to be restored and returned to steam once again. Today, ‘Green Arrow’ can be found on display in the Danum Gallery, Library and Museum in its birthplace, Doncaster, where it is on loan from the National Railway Museum.
