Kadee KDE308 Delayed Under the Track Uncoupler

  • KDE308
  • Kadee
  • OO Gauge Scale
  • £7.00
    Unit price per
UK Tax included. Shipping calculated at checkout.
Availability: On order

Product Information

Product Description

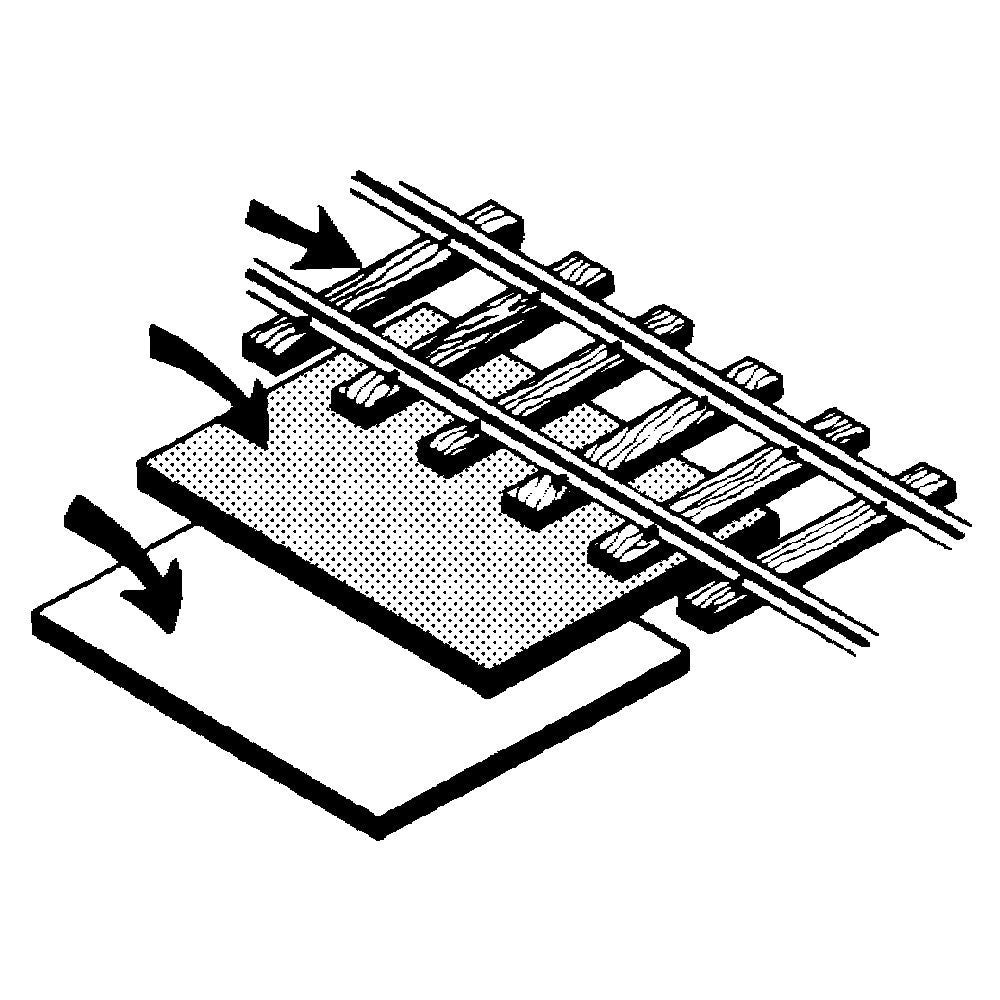

Under-the-Track "hidden" installation. A permanent magnet and steel intensifier plate are included along with instructions. Suitable for a variety of scales from HO to O-Scale.

Track not included


Because of the thicker ties and higher rail in O-scale it will be necessary to use 2 or 3 magnets stacked together and one steel intensifier plate on the bottom of the stack. On some track you may need to trim the bottom of the ties to fit the magnet(s) closer to the rails.

Contains: One Delayed Action Magne-Matic® Uncoupler & One steel intensifier plate


Package Includes:

  • (1) each #308 Delayed Action Magne-Matic® Uncoupler Magnet
  • (1) each Steel Intensifier Plate

KDE308 Dimensions:

  • Magnet Dimensions      - 2"L x 1 1/2"W x 3/16"H
  • Intensifier Plate             - .045" thick
