Kadee KDE26 20 Series Coupler Long (25/64'') Centreset Shank (2pr)

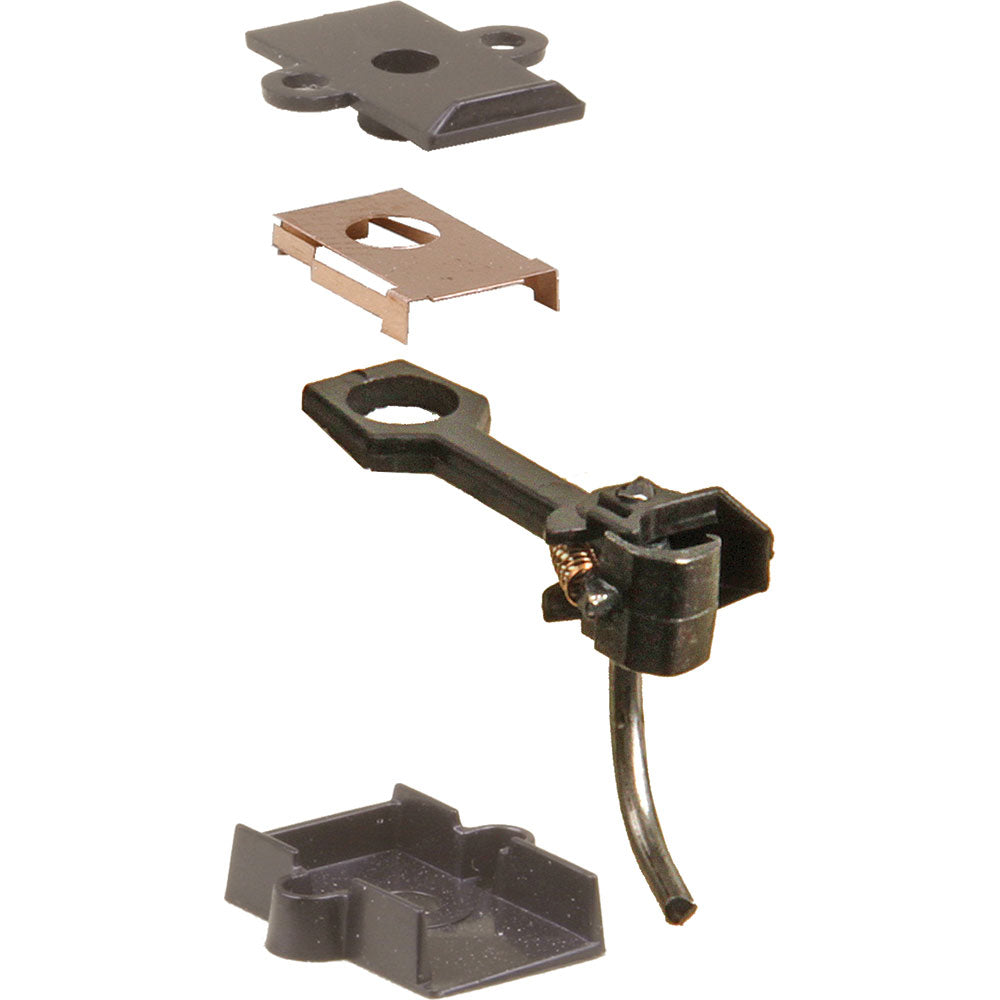

This industry leading coupler features plastic standard coupler with metal knuckle, and #634 standard centring spring and comes complete with insulated draft gearbox and lid. The#26 Magne-Matic® Plastic Coupler may be mounted with the included #213 or #232 Gearbox or with most other manufacturers cast-on coupler pockets.

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.

Package Includes:

• (2) Pair #26 Plastic Shank Couplers - Long Centerset Shank
• (2) Pair #634 Centering Spring NO.5® Style
• (2) Pair #213 055" ID & .100" ID Bushing/Sleeves
• (2) Pair #212 Talgo Truck Adaptors
• (2) Pair #213 Gearboxes
• (2) Pair #232 Gearboxes
• (2) #622 Knuckle Springs

Recommended Tools:

• #206 Insulated Muti-Purpose Coupler Height Gauge
• #231 Greas-em Dry Graphite Lubricant
• #241 Dual Tool Manual Uncoupling Tool and Spring Pick
