Kadee KDE19 NEM362 European Coupler Long 10.76mm (2pr)
Product Details
| SKU | KDE19 |
|---|---|
| Vendor | Kadee |
| Categories | Best selling products HO-OO In stock Items Kadee New products OO Gauge scale |
| Scale | OO Gauge |
| Share | |
| Features |
Product Description
This industry leading coupler features an NEM 362 European Style Coupler. The #19 Magne-Matic® NEM 362 European Style Coupler that is mounted in the HO-Scale NEM 362 draft gear box pocket.
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.
Package Includes:
- (2) Pair #19 Couplers (Aassembled) - Long Underset
- (2) #622 Knuckle Springs

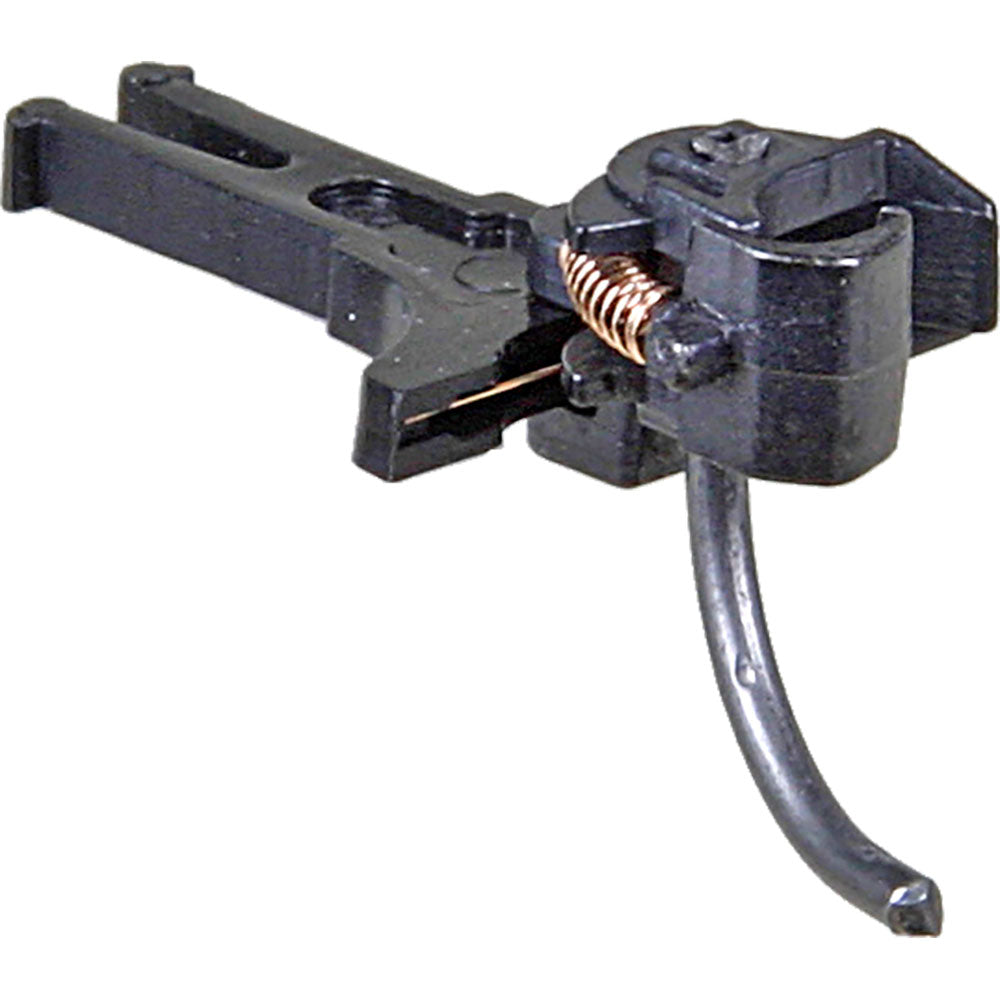

#19 Coupler Features:
- Material - Metal Knuckle, Plastic Coupler Swallow-tail Shank

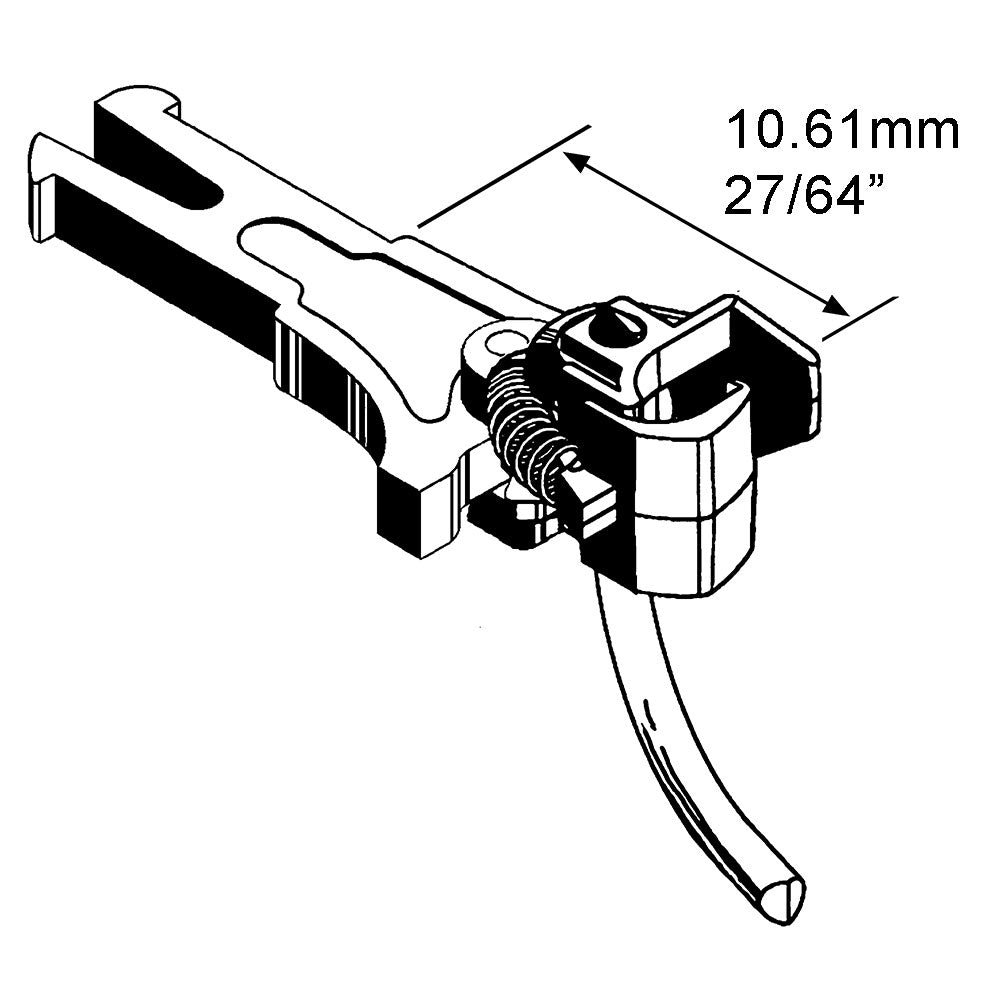

- Length - Long (10.67mm , .420 inch , 27/64") (pulling face to the dovetail shoulder)
- Coupler Offset - Underset
- Knuckle Spring - #622
- Centring System - NEM European Style Coupler
- Head - Standard Head

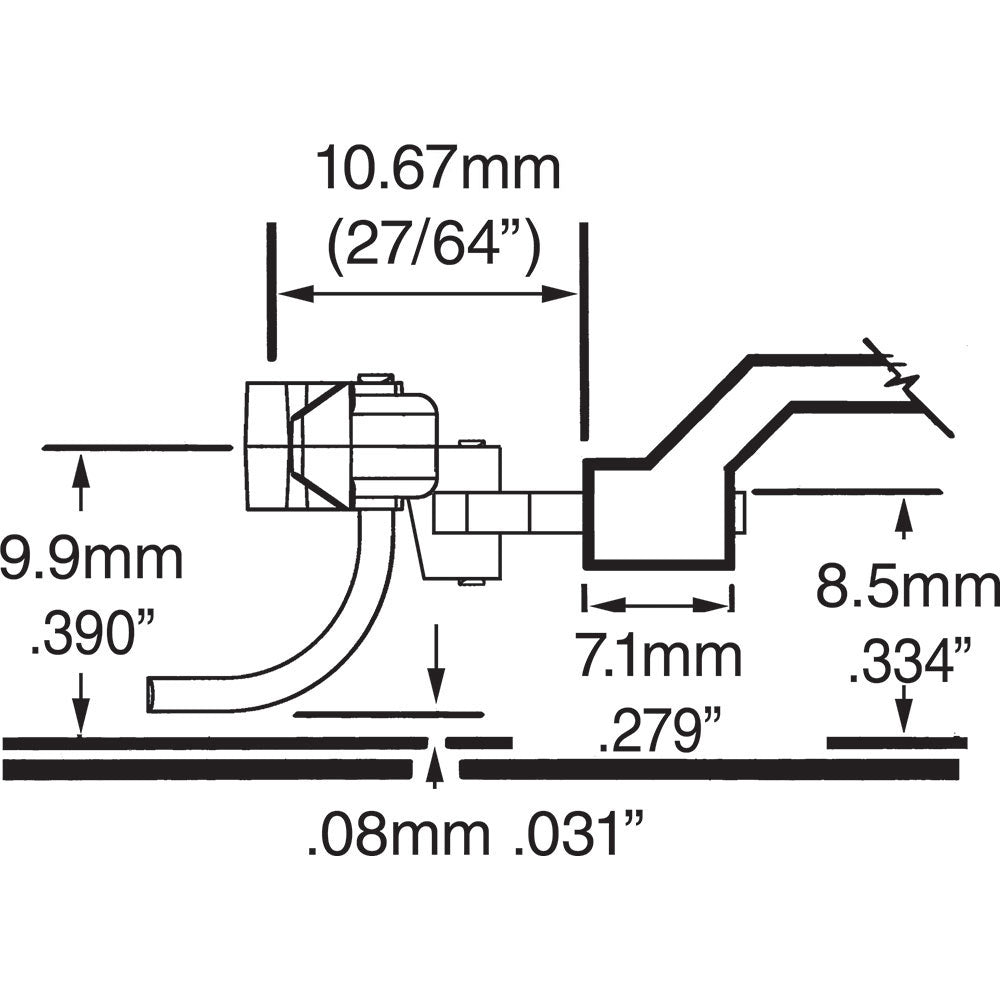

Mounting Specifications:
- Mounting Height - 10.67mm , .420"
- Centreline - 9.9mm , .390"
- Trip Pin Height - .08mm , .031"
