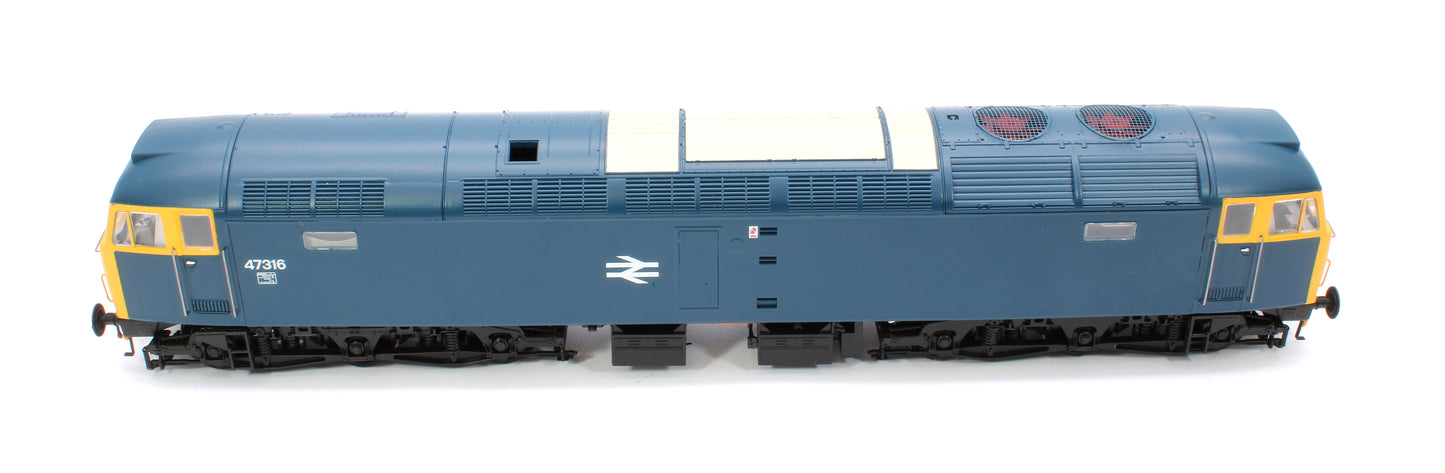

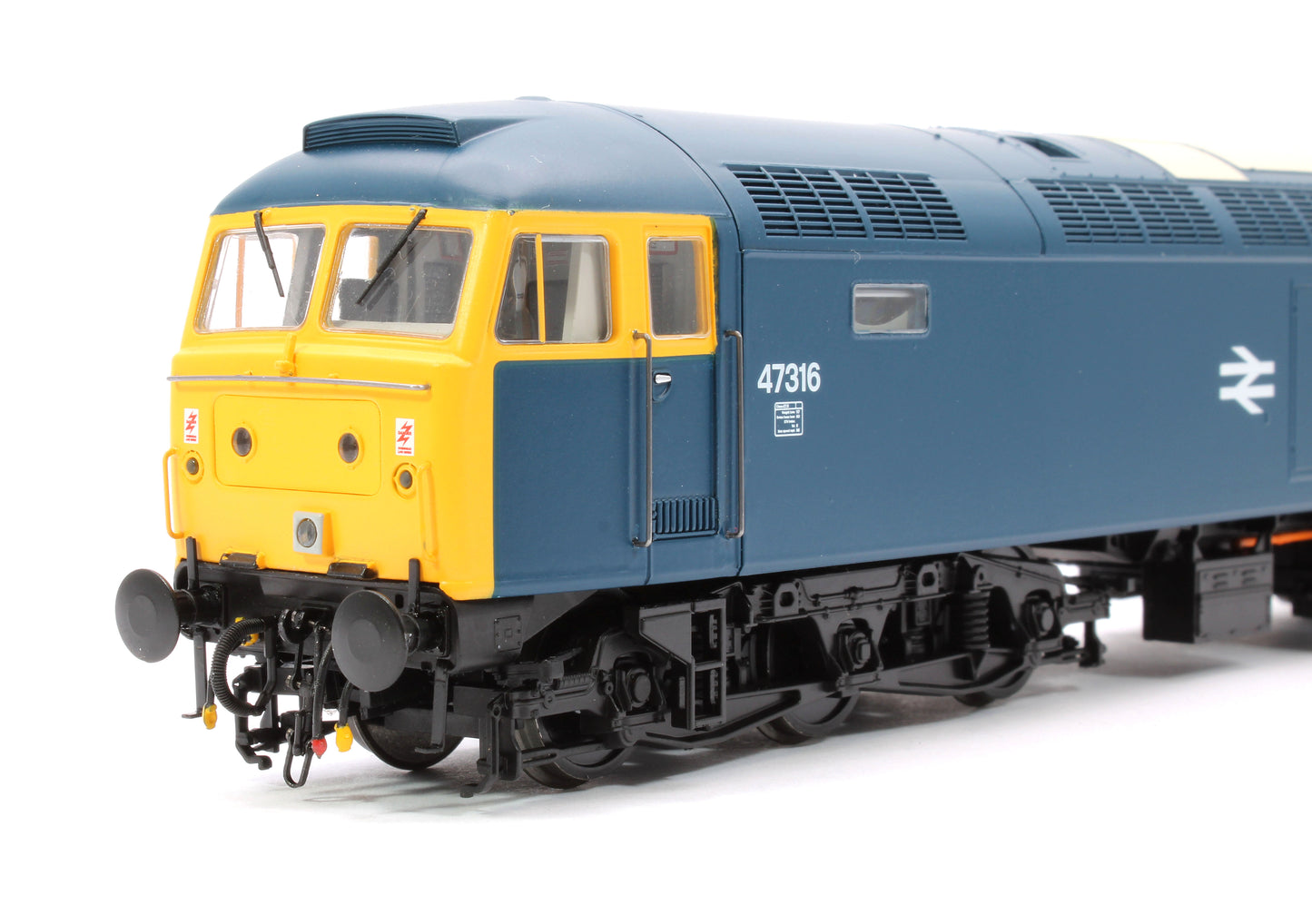

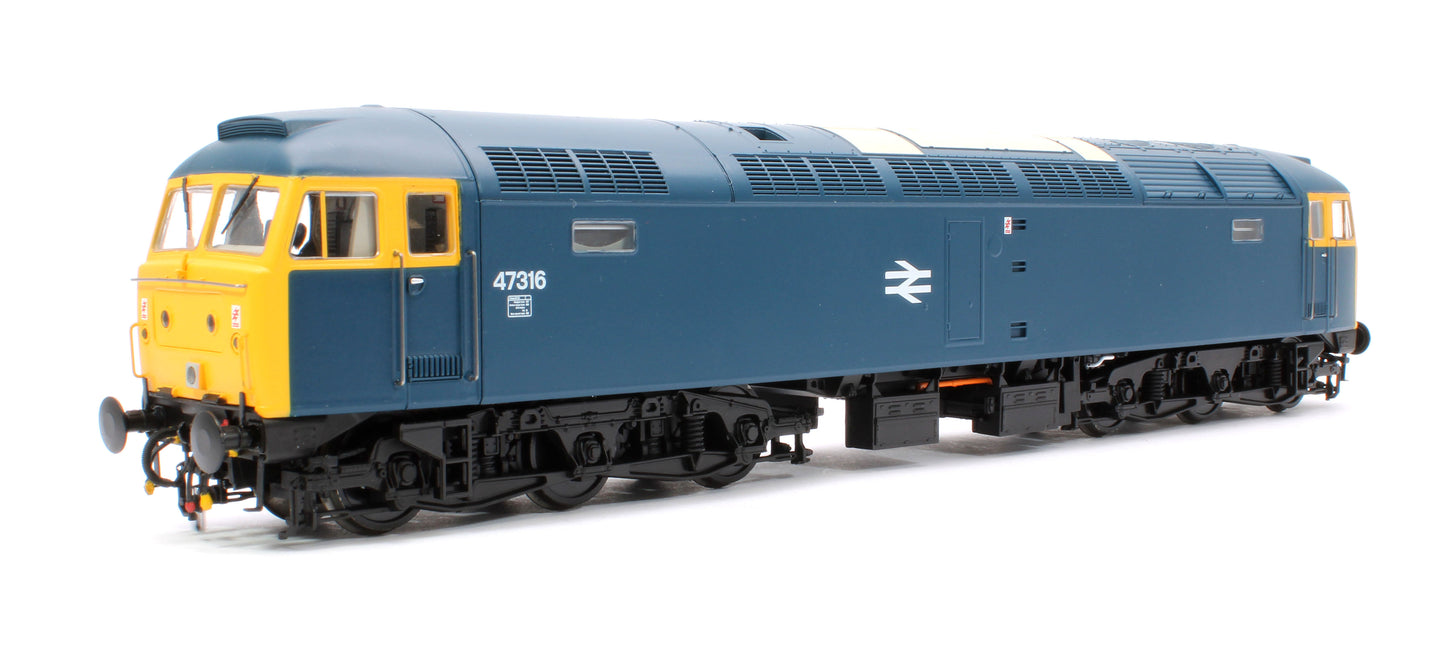

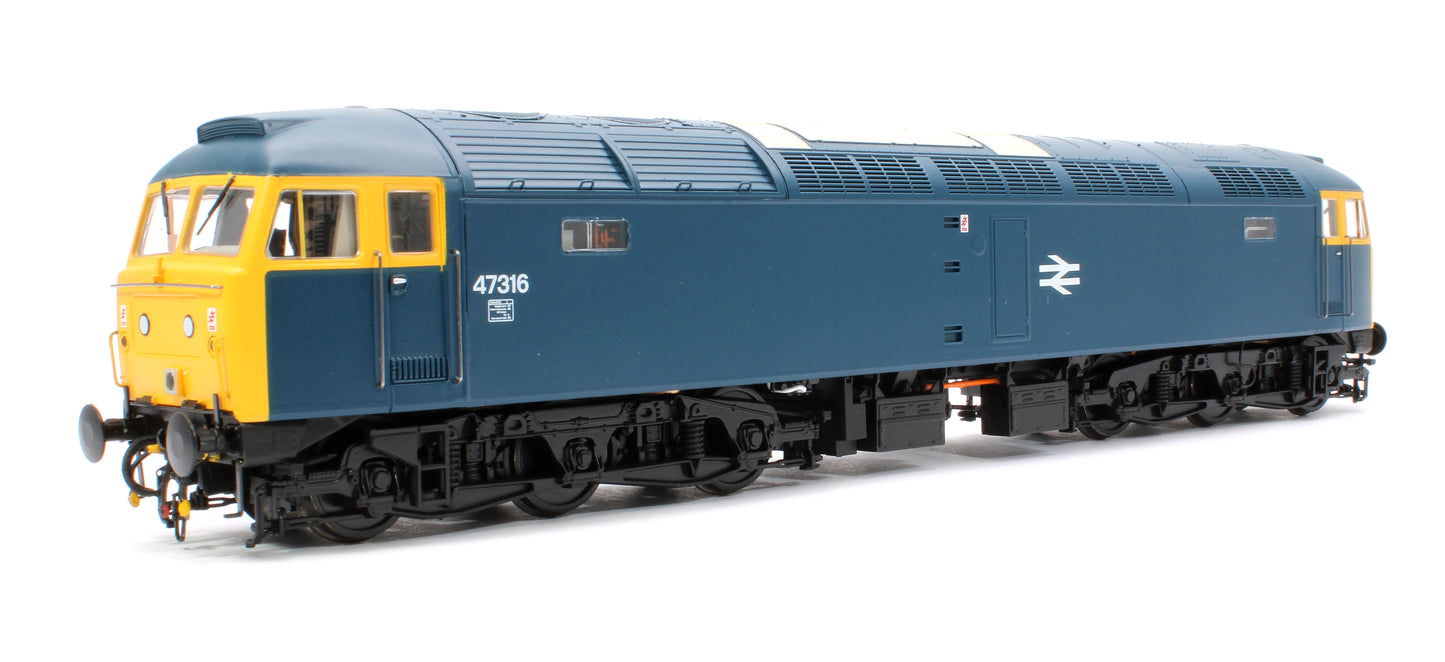

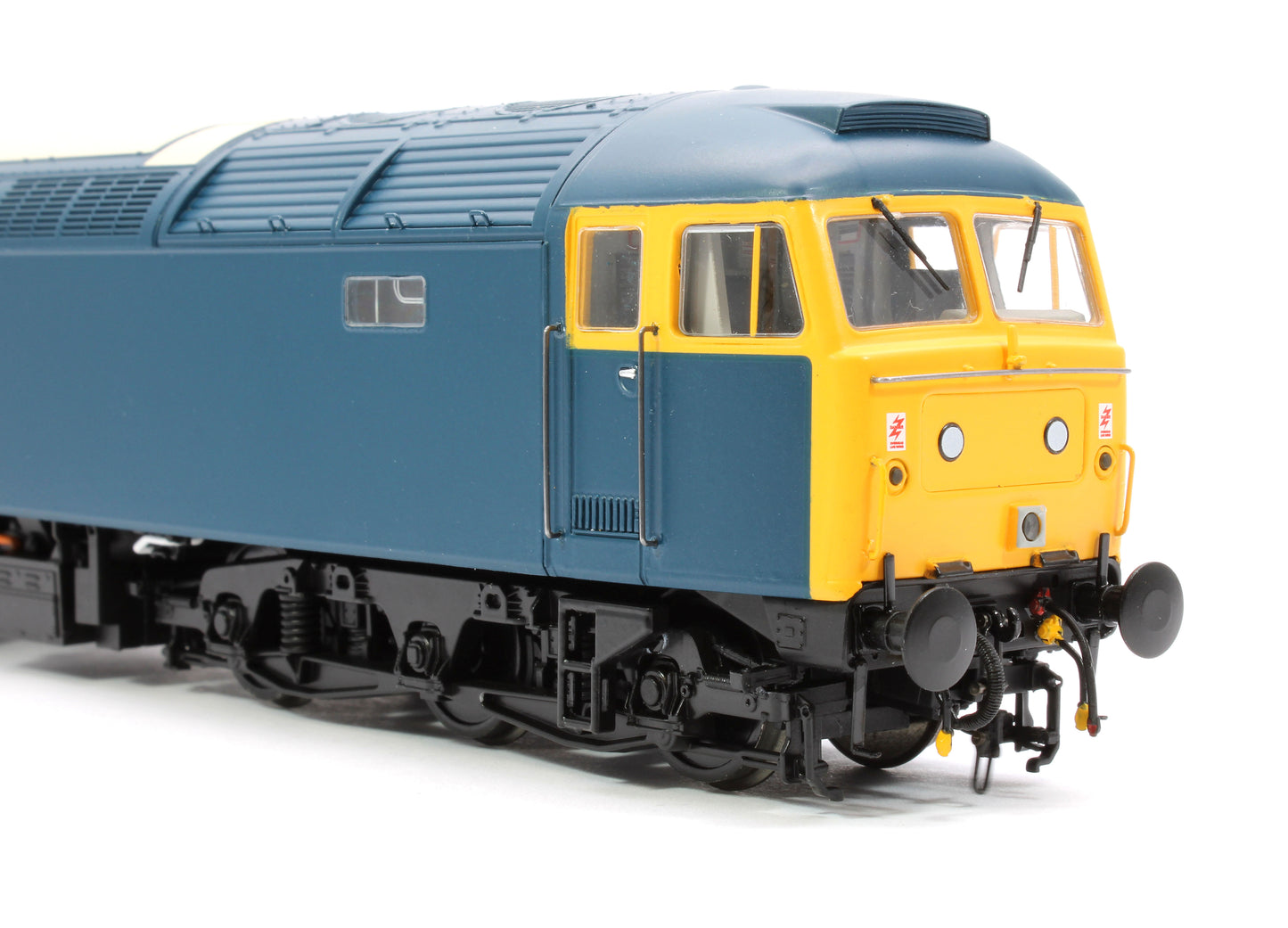

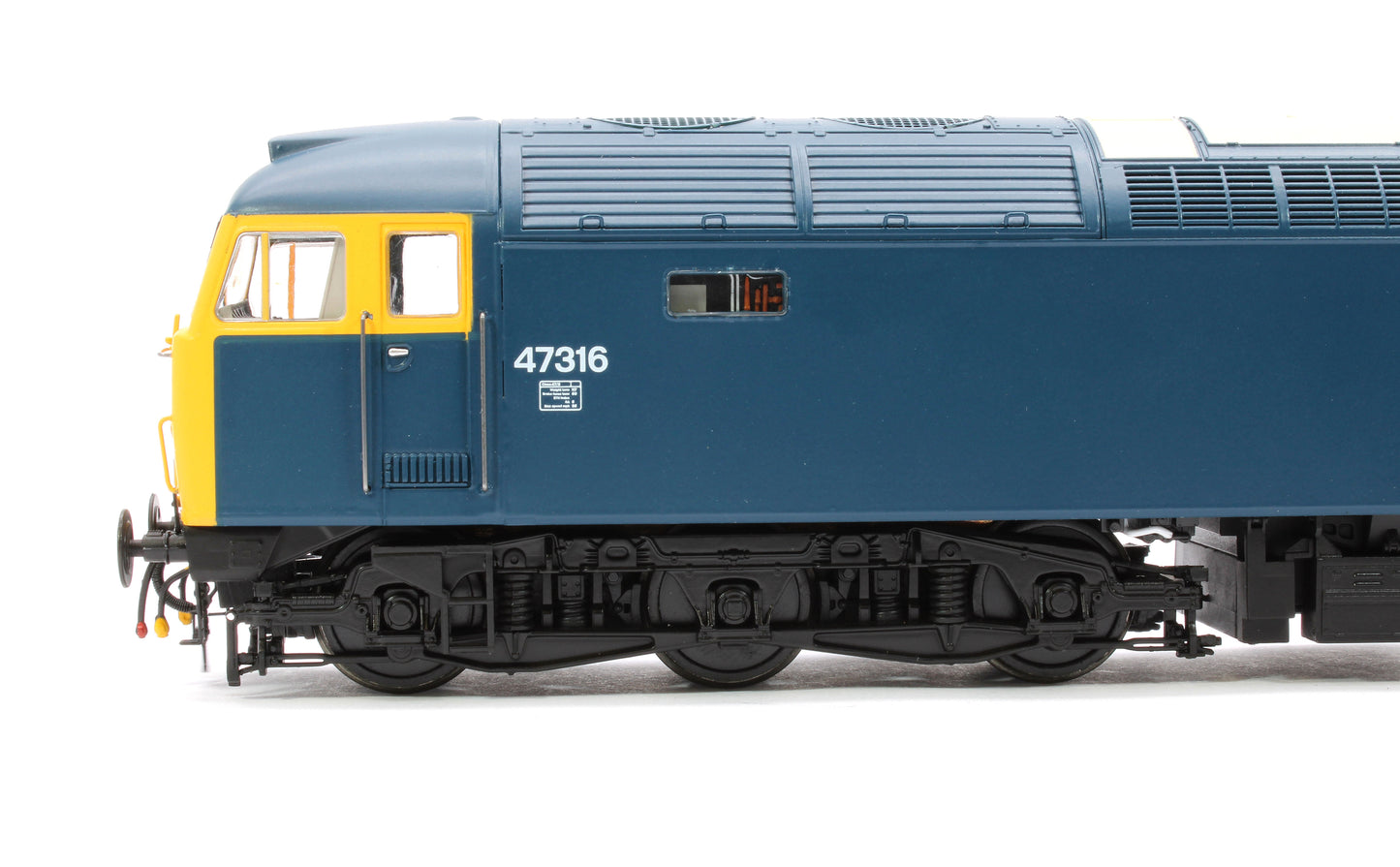

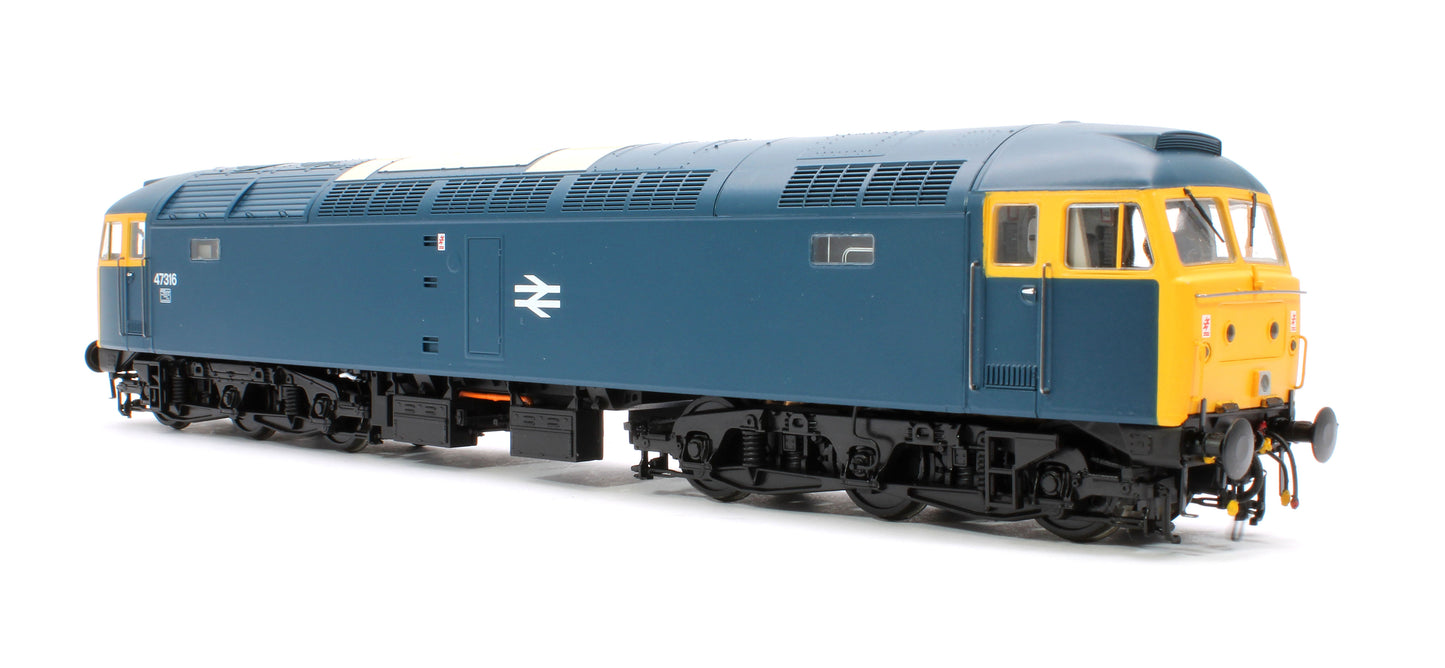

Heljan 4720 Class 47 316 BR Blue (plated headcode panels) Diesel Locomotive

4720 Heljan OO Gauge
1 10
£199.95
-20%
UK tax included. Shipping calculated at checkout.
Availability: On order

Weathering Options

View full details
Order within the next to be eligible for Next Day Delivery (T&Cs apply, see shipping policy for next day services.)
We Want Your
Second-Hand Items
top prices paid
click to find out more

Product Details

SKU HEL-4720
Vendor Heljan
Categories Best selling products Class 47 Locomotives Diesel Locomotives Era 7 Heljan Heljan OO Class 47 HO-OO Locomotives New products OO Gauge Diesel Locomotives OO Gauge Locomotives OO Gauge scale
Scale OO Gauge
Share
Features
  • Era 7. 1971-1982 British Rail Blue Tops era
  • 21 Pin DCC
  • DCC Sound Ready
  • Product features directional lighting
  • Product features internal lighting
  • What the icons mean

Product Description

Unsuitable for Rails DCC Fitting Service as the required decoder is not a part of our fitting service at this time. Please contact us for more details.

The Class 47 is one of the most mass produced locomotives of the BR Fleet. These locomotives were designed and built between 1962 and 1968 by Brush Traction and British Rail Crewe Works. They were used all over the western region hauling passenger services and can still be seen running up and down the country with special services.

MECHANICAL

  • Powerful 5-pole, twin shaft motor with two brass flywheels providing drive to both bogies
  • Four axle drive with ‘floating’ middle axle for smooth riding qualities
  • Diecast metal chassis block
  • Precision gearboxes with gearing arranged for prototypical running speeds and haulage capability
  • OO gauge finescale wheels with painted wheel faces
  • Detachable coupling pockets to NEM362 standards at both ends
  • Designed to operate on curves of second radius (438mm) or greater


DETAILING

  • Highly detailed bogies with superb relief detail and separate components
  • Exquisitely detailed underframe area with original water/fuel tanks, battery boxes or extended range fuel tanks and battery boxes
  • 9 different cab end designs based on common variations, with the potential to mix-and-match cab versions to produce specific locomotives
  • Authentic ride height
  • Original or ‘cutaway’ bufferbeam assemblies
  • Body-mounted or bufferbeam-mounted ETH equipment
  • Single arm or pantograph windscreen wipers
  • Original fixed or Serck radiator shutter options for No1 end roof panels
  • 7 options for No2 end boiler roof panel including all major Spanner/Stones/Clayton versions in original open design or plated over.
  • Glazed headcodes and two versions of plated headcode panel
  • Original cab or later ‘life extended’ style with cutaway bufferbeam cowling
  • Options for ScotRail and Rail express systems Class 47/7s
  • Highly detailed and decorated cab interiors with authentic angled frames visible in cabside windows
  • Authentic pipework detail visible in engine room windows
  • Separately applied metal detail parts, including handrails and etched fan grilles
  • Finely detailed three-piece miniature snowploughs which attach to the underside of the chassis for a more realistic appearance
  • Sprung finescale buffers
  • Beautifully decorated bufferbeam pipework/cables
  • More than 150 separate parts per model


LIGHTING FUNCTIONS

  • Directional headcode panel and tail lights
  • Separately switchable Cab interior lights (DCC mode)
  • Separately switchable Engine Room lights
  • Separately switchable tail lights (DCC mode)
  • Separately switchable HI Headlights (DCC mode)
  • Light engine mode
  • Parking mode with tail lights at both ends
  • Train mode with tail and/or marker lights off
  • Push-pull mode for ScotRail Class 47/7s
  • Authentic light colours for each model based on era and application
  • Authentic Class 47 lighting arrangements in DCC mode, supplied by DCC sound specialist Legomanbiffo, featuring different lighting functions for locomotives with/without HI headlights and unique light functions for using ScotRail Class 47/7s in push-pull mode with Mk2 DBSO coaches.
  • Cab light extinguishes automatically when locomotive starts moving (DCC mode)

DCC

  • MTC 21-pin DCC decoder interface (DCC Ready)
  • Factory fitted ESU LokSound V5 decoder (DCC Sound models)
  • Authentic Class 47 sound projects in DCC mode, supplied by DCC sound specialist Legomanbiffo, featuring different sounds for Class 47/0s or 47/3s and ETH-fitted Class 47s.
  • Up to 30 sound/light and control functions on models with factory fitted DCC/Sound
  • Playable braking function when locomotive is in motion (F5)
  • ‘Heavy Load’ function for extra ‘thrash’


SOUNDS

  • ESU Loksound V5 DCC Sound Decoder as standard
  • Two high-quality speakers encased in bespoke sound enclosure for optimum sound reproduction
  • TWO super-realistic Class 47 sound projects supplied by DCC sound expert Legomanbiffo, featuring different sound recordings for Class 47/0 and ETH-fitted Class 47/4s
  • 19 authentic sound functions including Spirax air dump valve, compressor, cooling fans, wipers, sanders, AWS bell and buzzer
  • Playable two-tone horn function (F2/F3)
  • Driver-Guard communication beep for ScotRail Class 47/7
  • Speed dependent flange squeal
  • Speed dependent detonator explosion
  • Mk1/2/3 door slam options
  • Mk3 air suspension sound (for ScotRail Class 47/7)


DECORATION

  • Minutely researched and applied liveries on all models, based on archive photos and comments provided by acknowledged Class 47 experts
  • Multiple paint applications employed on each model using colours based on original paint specifications
  • Logos, numerals and text added as appropriate using multi-stage tampo printing using authentic typefaces, logos and colours
  • Painted wheel faces to eliminate toy-like shiny effect of chemically blackened wheels
  • Colours based on official BR and train operator paint references and painting instructions.
