Dapol 2S-043-006 GWR Churchward Built 63xx 2-6-0 Mogul 7310 BR Green, Late Crest
- Pre-Order
Product Details
| SKU | 2S-043-006 |
|---|---|
| Vendor | Dapol |
| Categories | Best selling products Dapol Era 5 Locomotives N Gauge Latest Releases N Gauge Locomotives N Gauge scale N Gauge Steam Locomotives New products Pre-Orders Steam Locomotives |
| Scale | N Gauge |
| Share | |
| Features |
|
Product Description
Expected Delivery Q3 2025 (Subject to Change at Manufacturer's Discretion).
The series of models being manufactured by Dapol are to the later Churchward build from numbers 5390 through to 7321, constructed between 1920 and 1923 with the final eight (6362-6369) in 1925 under Collett. These Collett locomotives had outside cylinder steam pipes fitted from new, whilst this feature was added to the majority of the earlier batch from the late 1940s to the early 1950s. The last to be withdrawn was 6395 on 21-11-1964.
Specifications:
Body
- Diecast boiler
- Smokebox with/without cylinder steam pipes
- Diecast footplate
- Churchward tapered buffers
- Collett straight shank buffers
- Tall vacuum pipe for early version
- Lower vacuum pipe for later period
- Tall safety valve coverShort safety valve cover
- Smoke box top mounted lamp bracket
- Smoke box door mounted lamp bracket for B.R. period
- Smoke box number plate for B.R. period
- Highly detailed cab interior
Chassis
- Diecast chassis – split frames for live bearing pick-up
- Blackened nickel plated diecast driving wheels
- Brass bearings
- Plastic keeper plate with brake shoe/linkage details
- Sprung centre driving wheels
- Wheels to NMRA standard
Electrical
- Pickup from loco driving wheels and tender
- Coreless motor
- Tender body to be easily removable
- Space for sugar cube speaker in tender
- DCC Ready with provision for a NEXT-18 Decoder in the tender

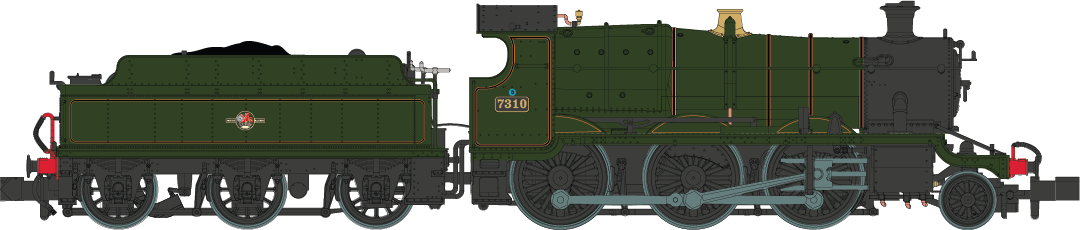

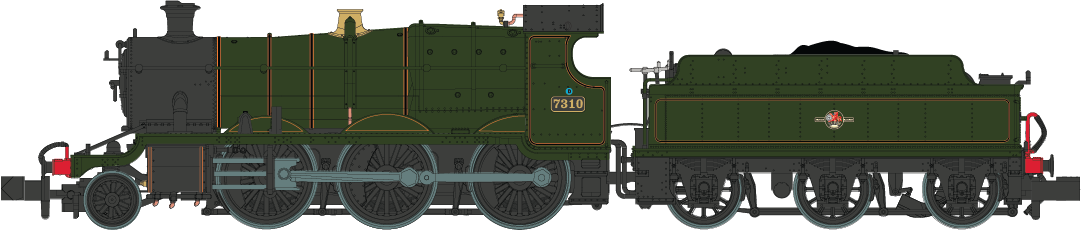

- Locomotive to tender electrical connections for motor and locomotive pick-up via pin and socket vertically mounted under the cab. Loco to tender coupling not shown in the artworks below.
