Gaugemaster UO Single Track Panel Mounted Controller with Simulation for O

UO Gaugemaster O Gauge
1 3
£71.95
-20%
UK tax included. Shipping calculated at checkout.
Availability: On order
View full details
Order within the next to be eligible for Next Day Delivery (T&Cs apply, see shipping policy for next day services.)
We Want Your
Second-Hand Items
top prices paid
click to find out more

Product Details

SKU UO
Vendor Gaugemaster
Categories Best selling products Control & Digital Controllers and Transformers Gaugemaster New products O Gauge Controllers and Transformers O Gauge scale
Scale O Gauge
Share
Features

Product Description

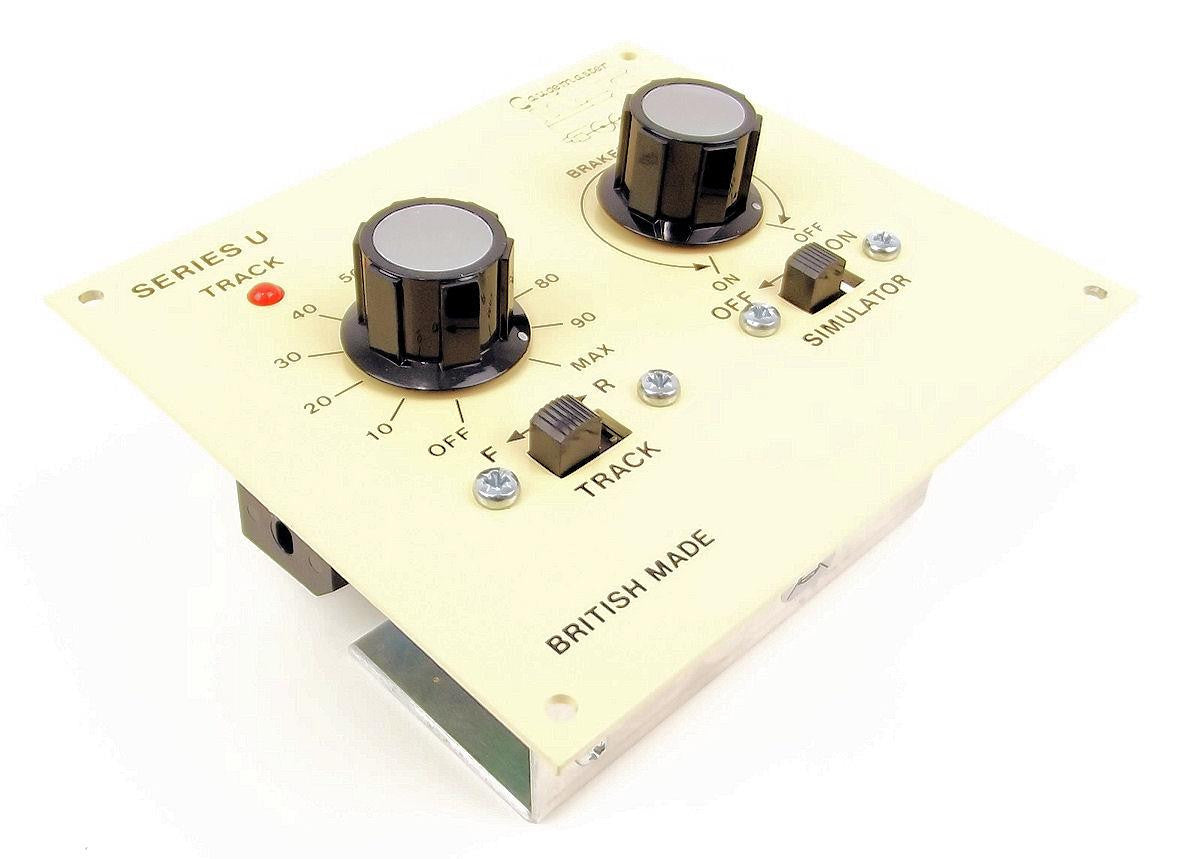

Single track controller designed to sit inside a control panel. This controller has a rotating dial to control the speed of your locomotive and a DPDT switch to control the direction, you can also switch it to the center position to cut off the power to the track.

This controller is also fitted with a Brake Simulator which allows the user to apply the brake to slow the locomotive down without altering the throttle.

The following power supplys can be used to power this unit.

TECHNICAL DETAILS

  • INPUT 16v AC
  • CONTROLLED OUTPUT 14v DC
  • CURRENT RATING 2.5A

MEASUREMENTS

  • WIDTH 120mm
  • DEPTH 50mm
  • HEIGHT 105mm

GMC-UO - Instructions - Click here to download
