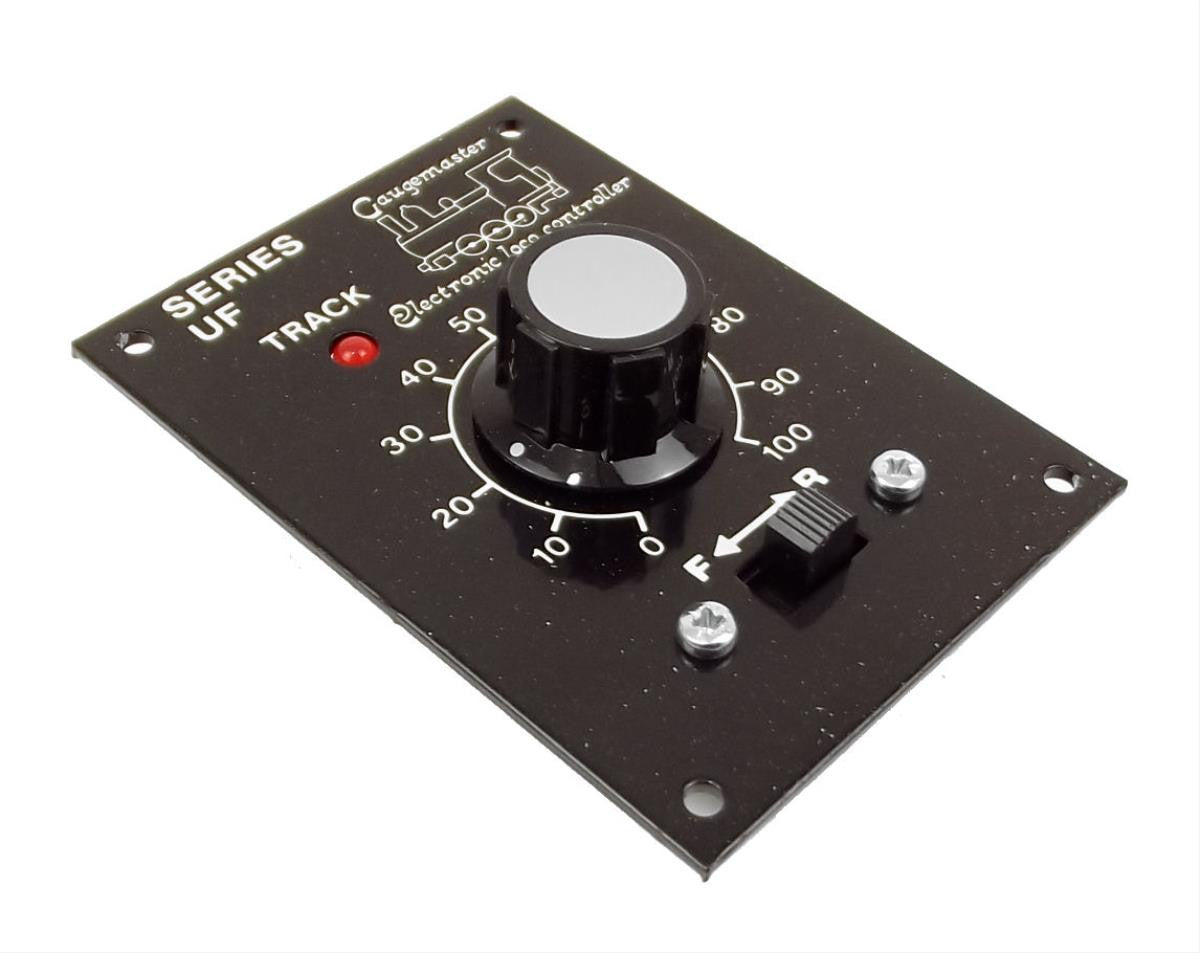

Gaugemaster UF Single Track Panel Mounted Controller with Feedback

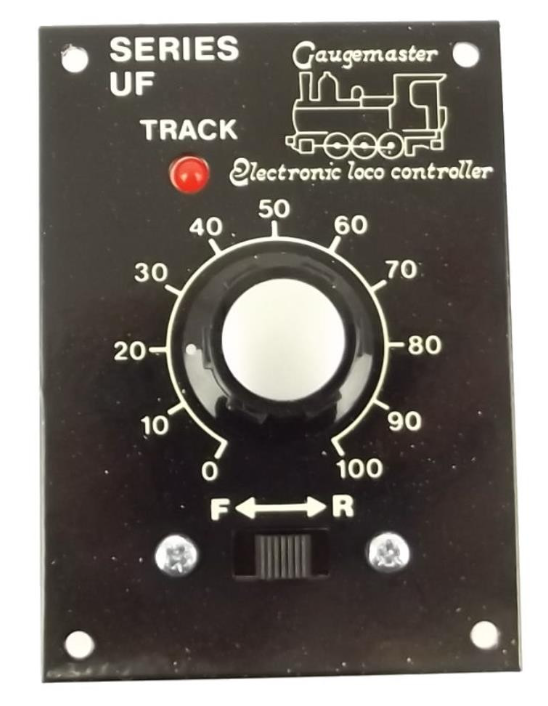

Single track controller designed to sit inside a control panel. This controller has a rotating dial to control the speed of one locomotives and a DPDT switch on the circuit to control the direction of travel, you can also switch it to the center position to cut off the power to the track.

This controller also features Feedback control which allows the locomotive to stay the same speed while going up and down gradients. This handheld controller is not recommended for use with coreless design motors, DCC ready or N Gauge Models.

The following power supplys can be used to power this unit.

• GMC-M1 - Cased Transformer
• GMC-T1 - Open Transformer
• GMC-WM1 - Wall Mounted Transformer

TECHNICAL DETAILS

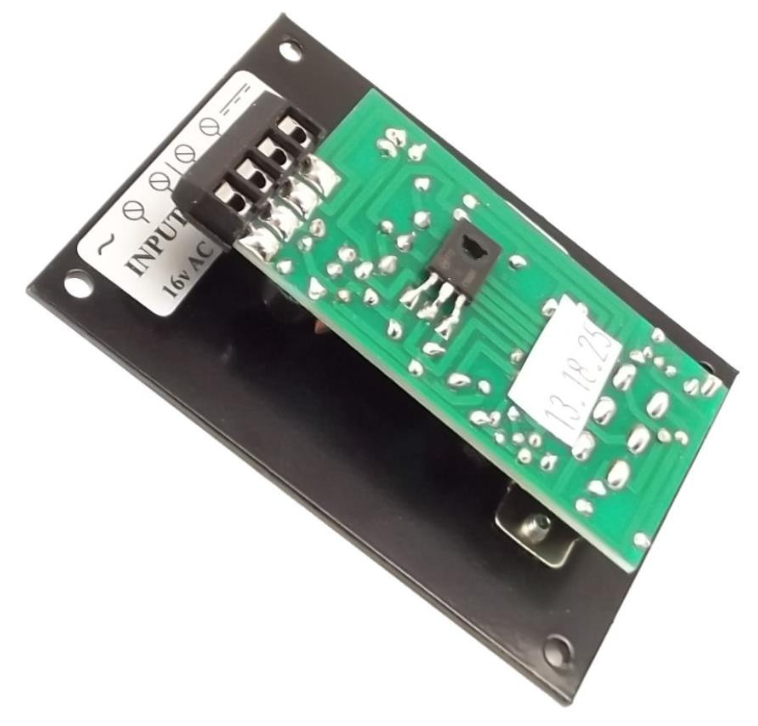

• INPUT 16v AC

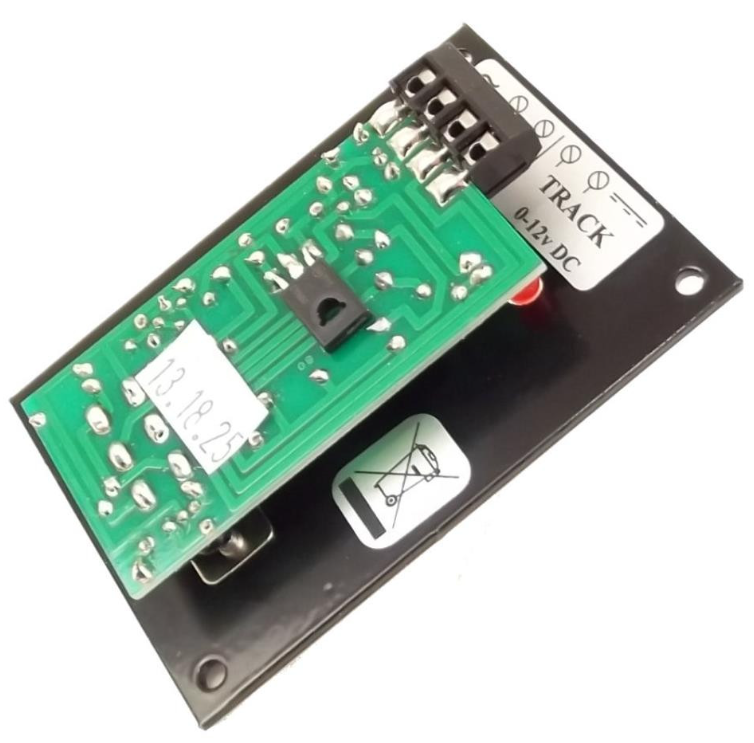

• CONTROLLED OUTPUT 12v DC
• CURRENT RATING 1.25A

MEASUREMENTS

• WIDTH 65mm
• DEPTH 50mm
• HEIGHT 90mm

GMC-UF - Instructions - Click here to download
