Gaugemaster Single Track Panel Mounted Controller with Simulation

Product Description

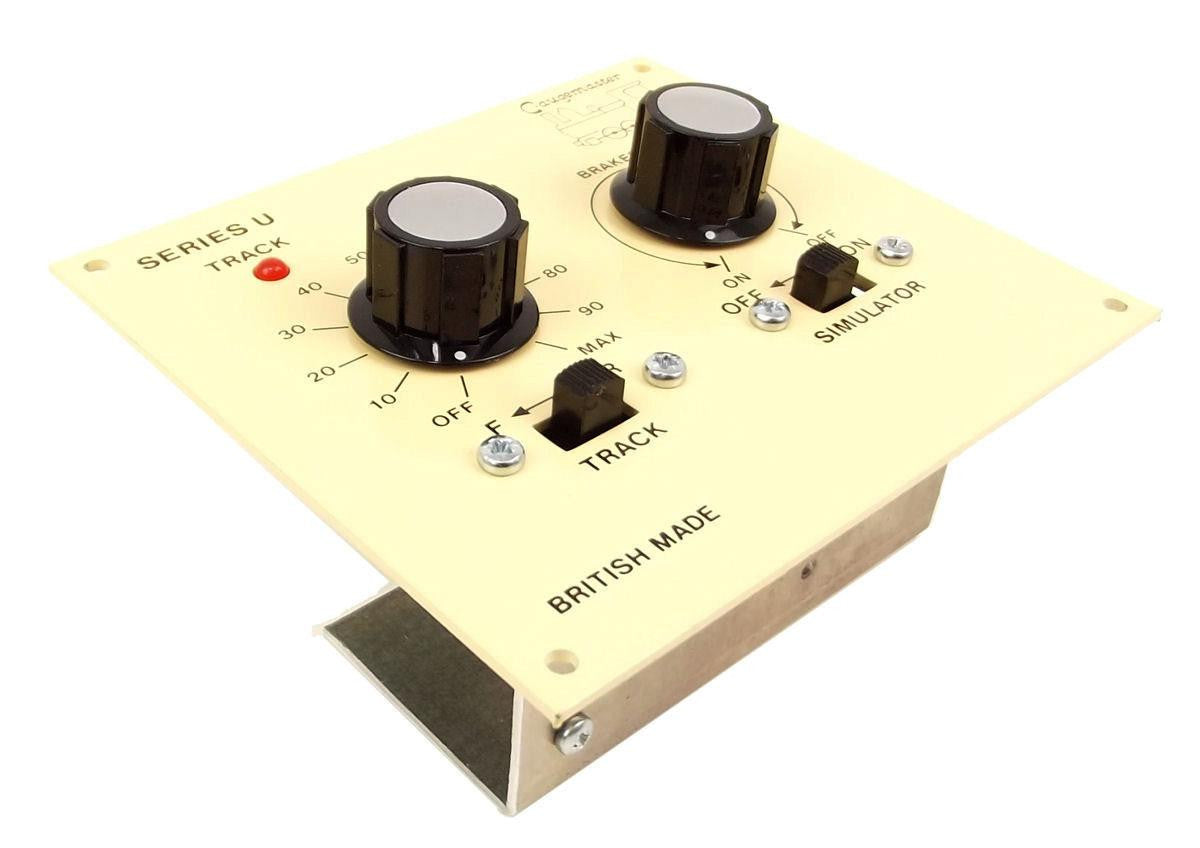

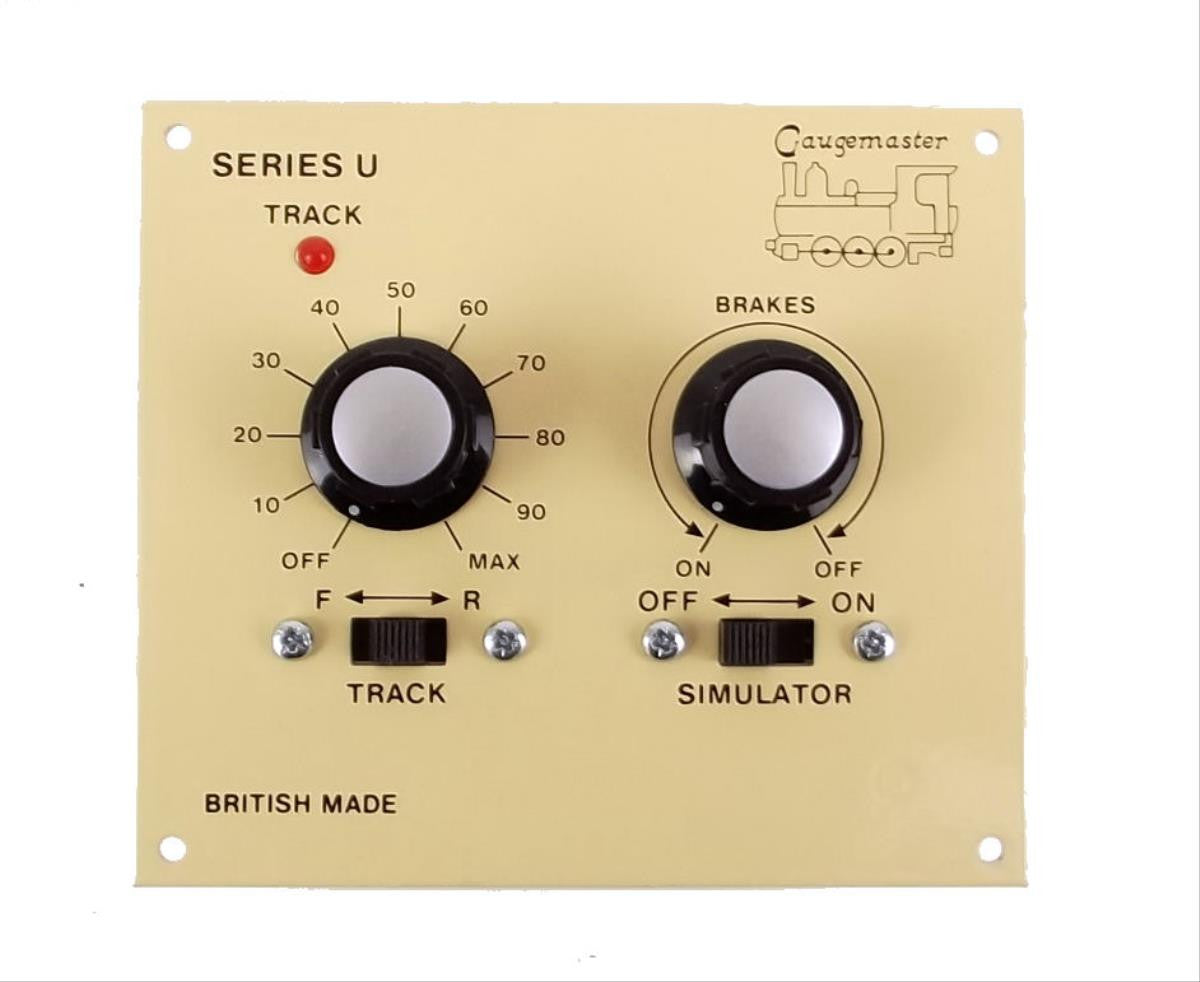

Single track controller designed to sit inside a control panel. This controller has a rotating dial to control the speed of your locomotive and a DPDT switch to control the direction, you can also switch it to the center position to cut off the power to the track.

This controller is also fitted with a Brake Simulator which allows the user to apply the brake to slow the locomotive down without altering the throttle.

The following power supplys can be used to power this unit.

• GMC-M1 - Cased Transformer
• GMC-T1 - Open Transformer
• GMC-WM1 - Wall Mounted Transformer

TECHNICAL DETAILS

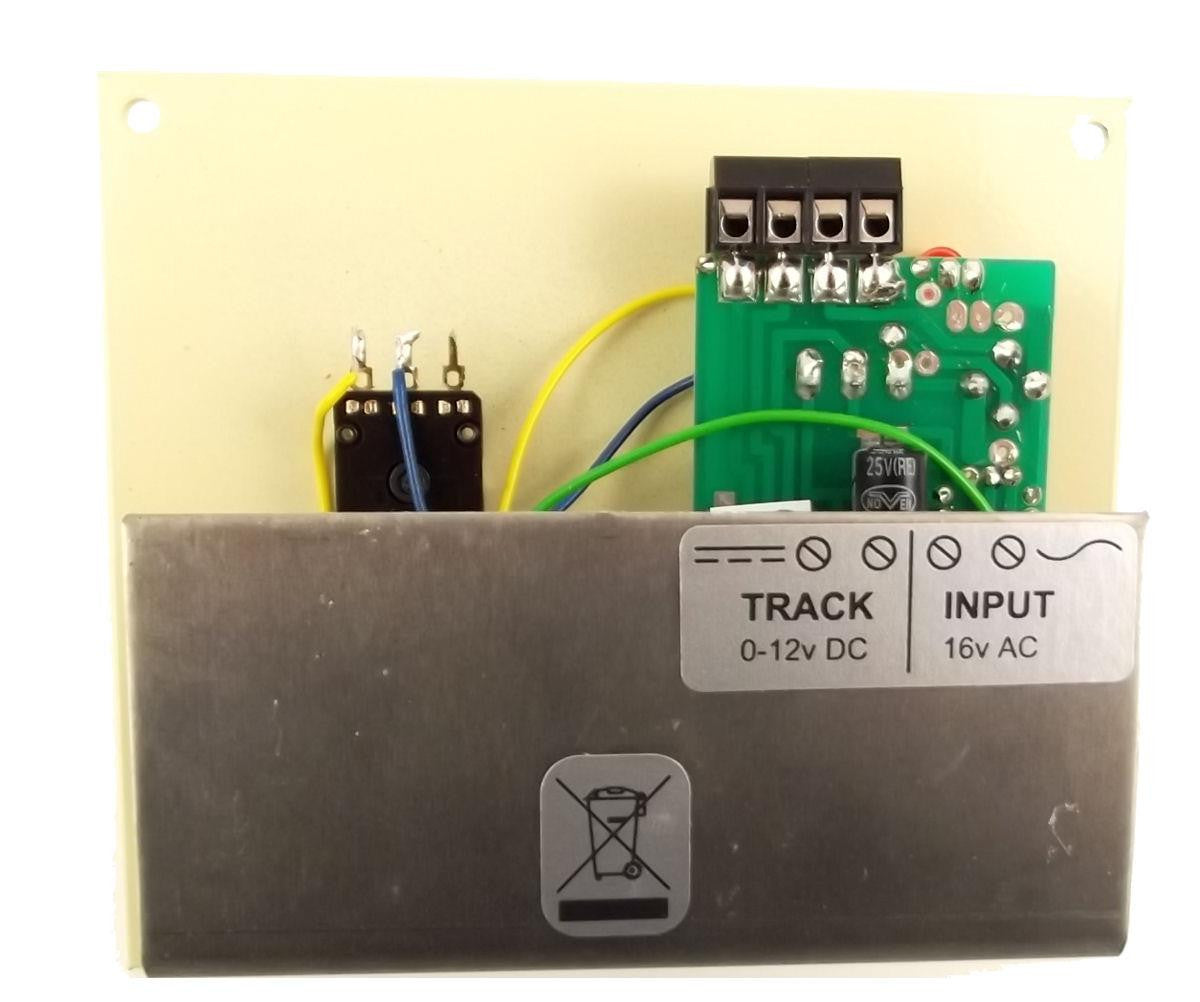

• INPUT 1 x 16v AC
• CONTROLLED OUTPUT 1 x 12v DC
• CURRENT RATING 1.25A

MEASUREMENTS

• WIDTH 120mm
• DEPTH 50mm
• HEIGHT 105mm

GMC-U - Instructions - Click here to download
