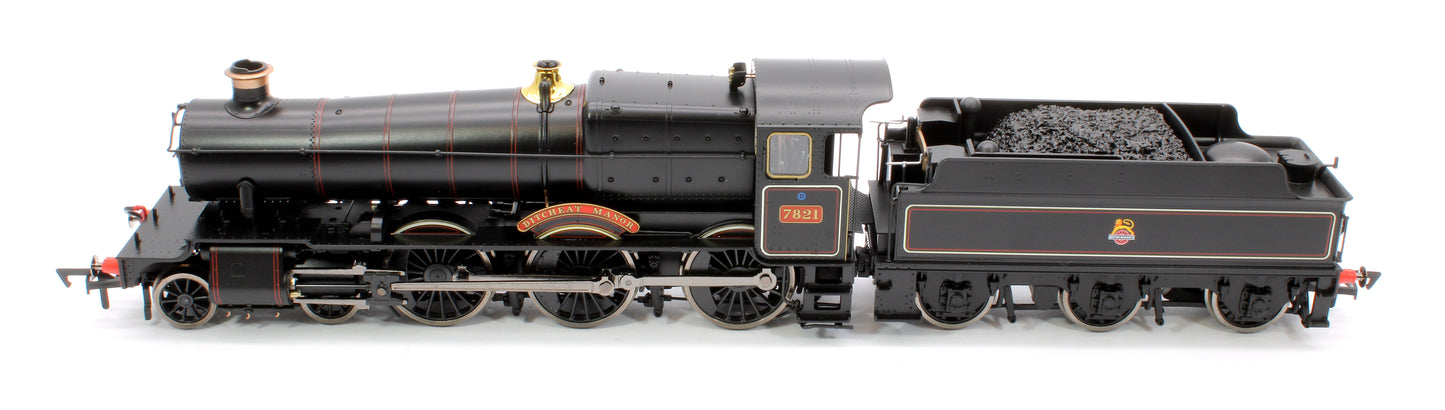

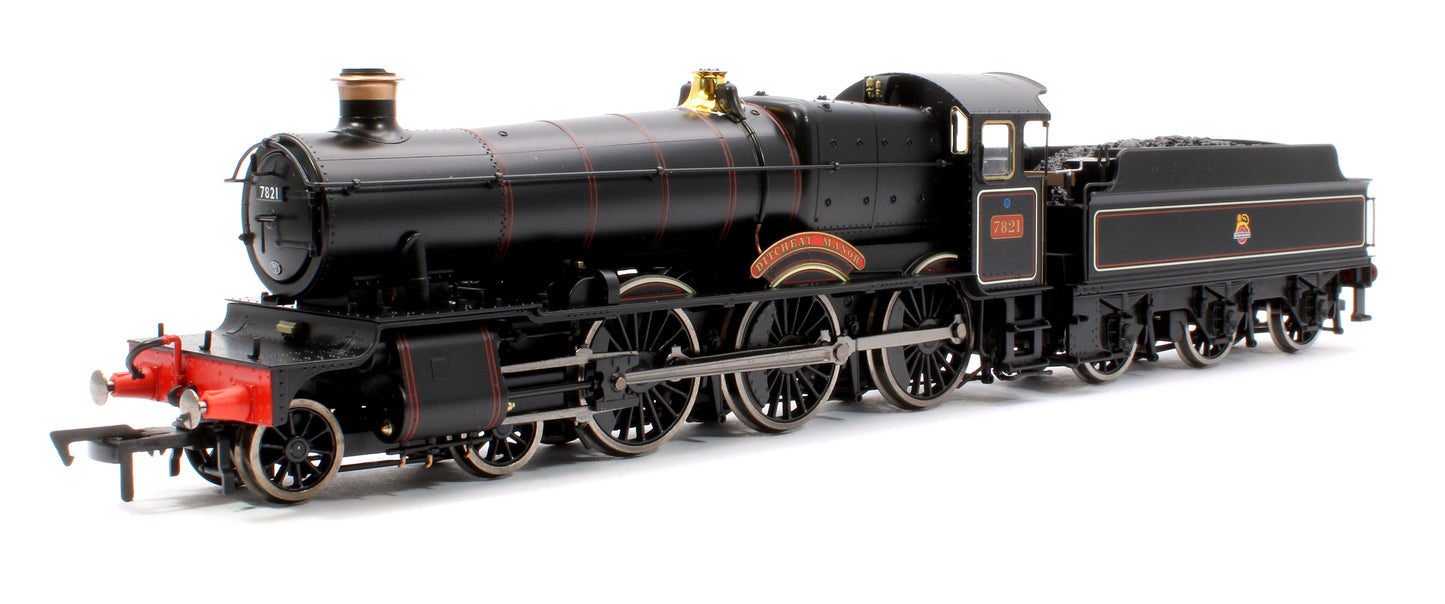

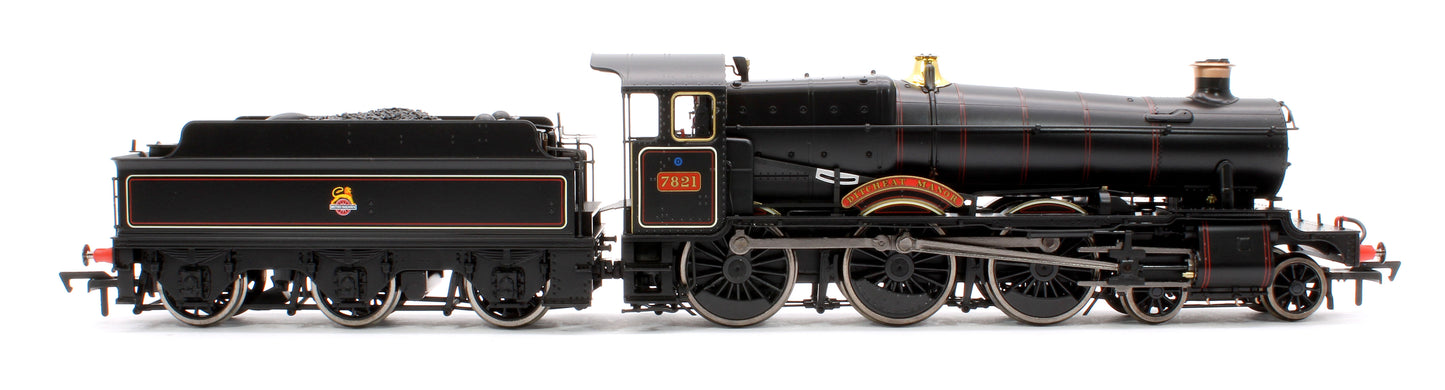

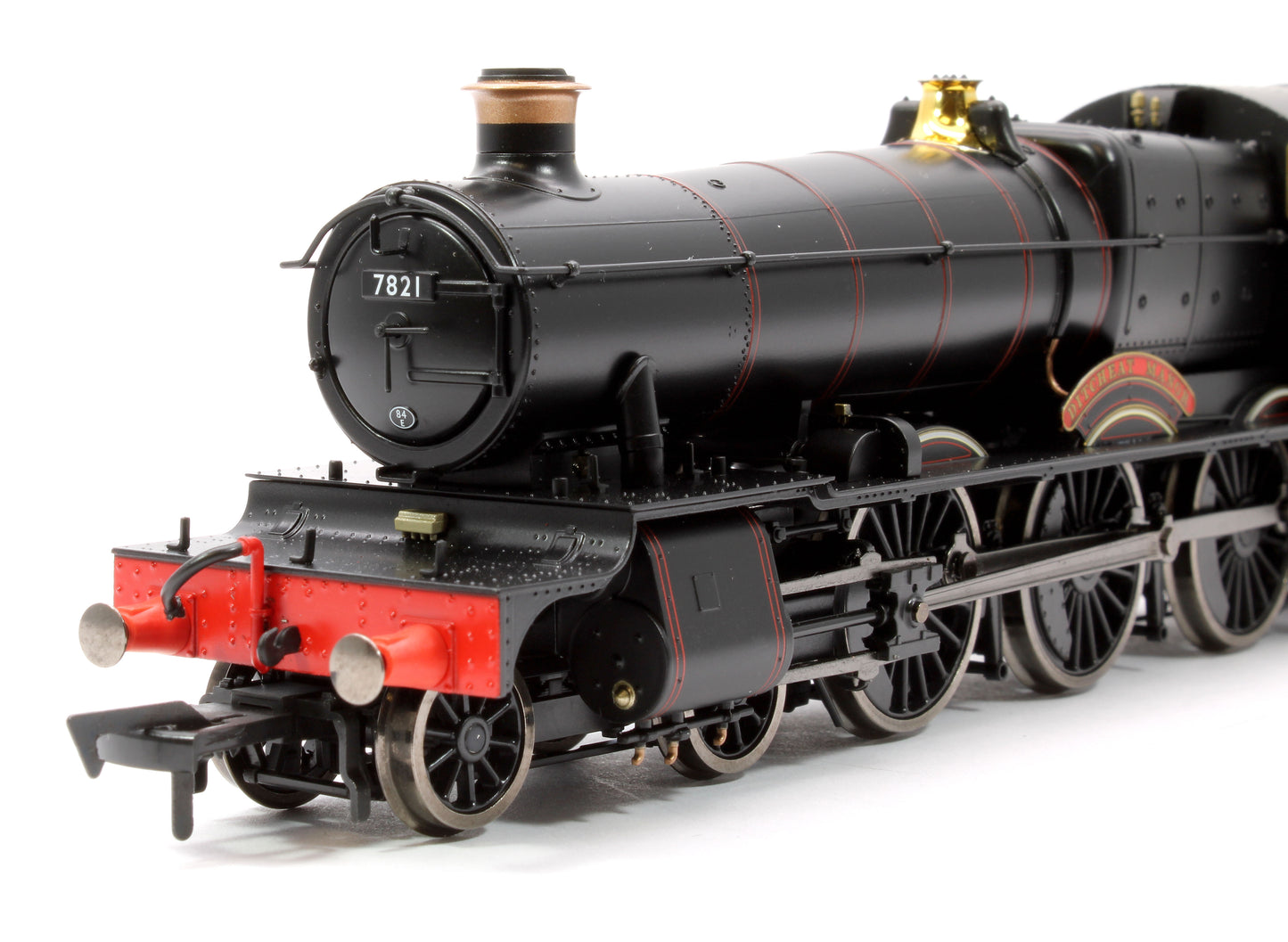

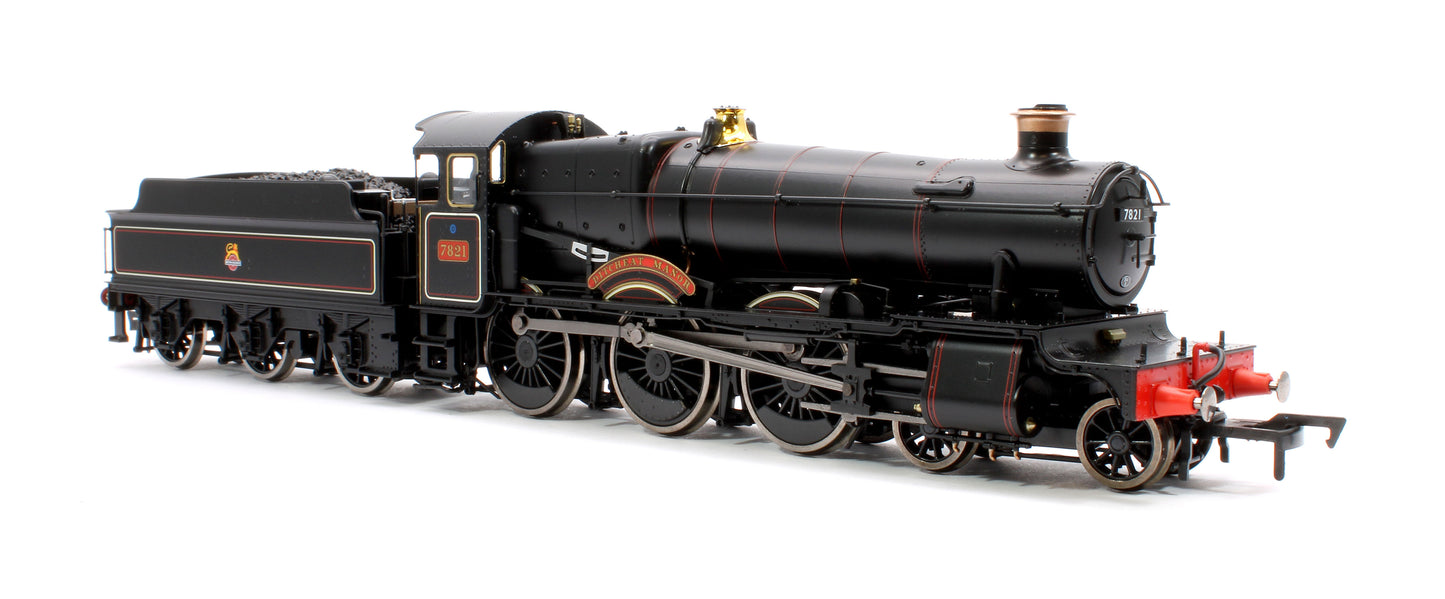

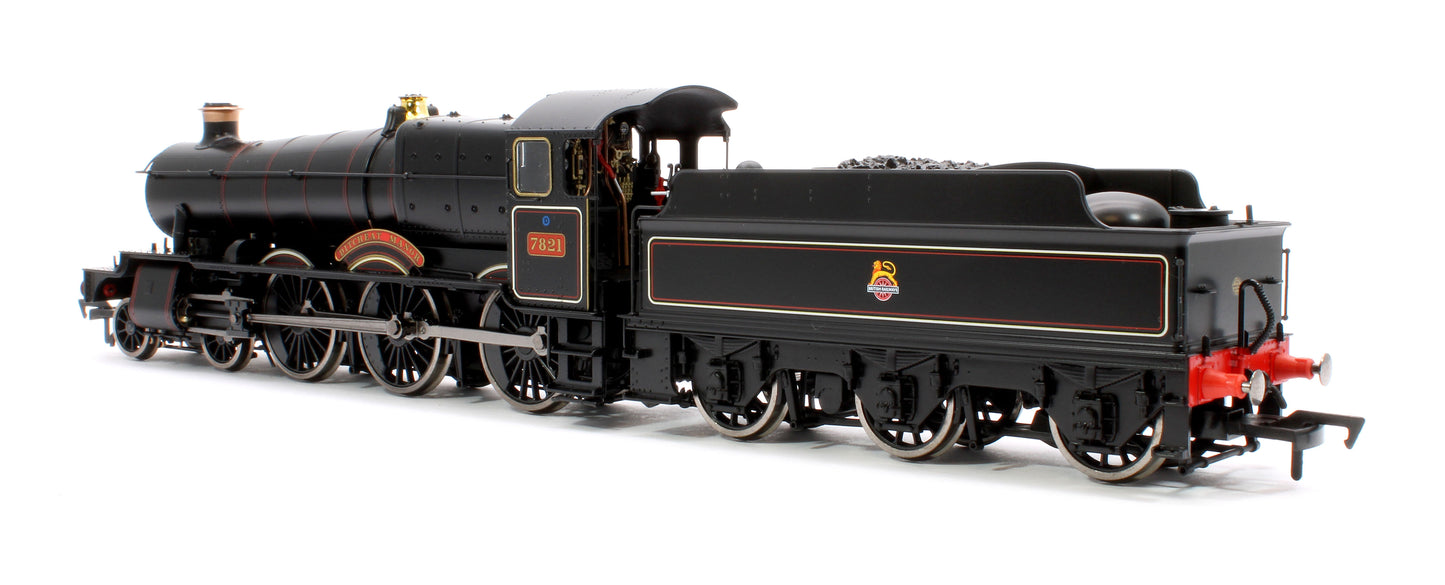

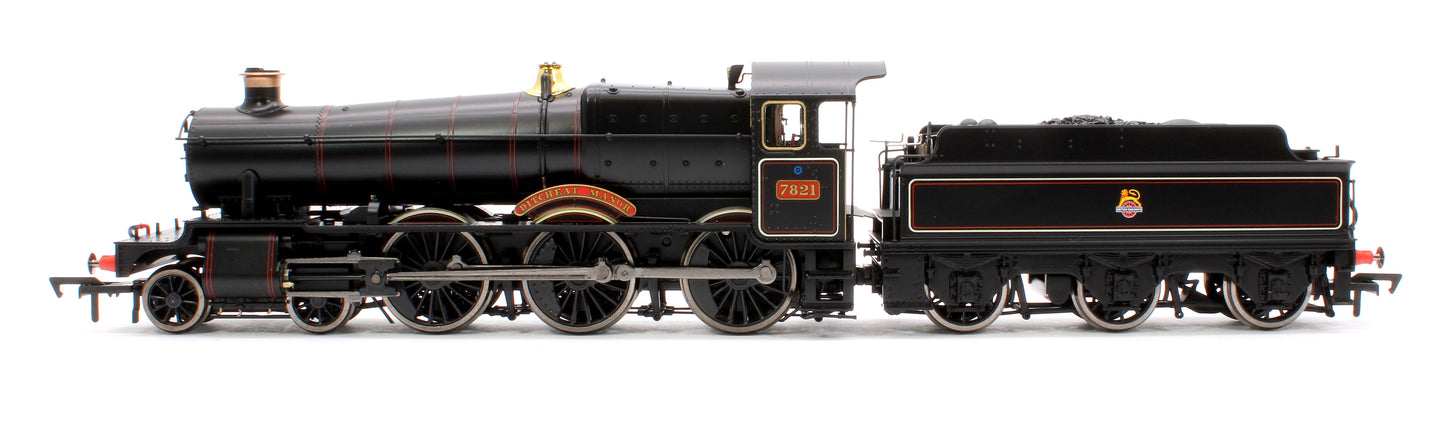

Dapol 4S-001-011S Ditcheat Manor BR Lined Black Early Crest GWR 78xx Manor Class 4-6-0 Steam Locomotive No.7821 - Sound Fitted
Product Details
| SKU | 4S-001-011S |
|---|---|
| Vendor | Dapol |
| Categories | Best selling products Dapol Dapol OO 78xx Manor Era 4 HO-OO Latest Releases Locomotives NEW Dapol OO 78XX Manor Locomotives New products OO Gauge Latest Releases OO Gauge Locomotives OO Gauge scale OO Gauge Steam Locomotives Steam Locomotives |
| Scale | OO Gauge |
| Share | |
| Features |
|
Product Description
The GWR Manor was a versatile 4-6-0 configured locomotive designed with a lighter axle loading than the existing and popular Grange class which enabled the Manor to operate in regions of the GWR where this was not possible with a locomotive of comparable power.
In all, 30 Manor class locomotives were manufactured at Swindon in two batches: 20 between 1938 and 1939 and then a further 10 post nationalisation in 1950 which were designated 5MT. Although initially the performance of the locomotive was deemed at best mediocre, subtle internal refinements made towards the mid 1950s resulted in a successful and popular locomotive. In all nine examples of the Manor survived into preservation.
MODEL
Many original GA drawings were used in the development of these accurate and authentic model.
Building on the many developments from the Dapol Mogul including Dapol's award winning slide in PCB in the boiler for tool free DCC fitting and sugar cube speaker enclosure (for sound models). Conductive drawbar providing tender wheel pick-up and connections for high bass speaker.
The locomotive will have all of the usual refinements that are expected to be found on all Dapol models.
FEATURES
- A diecast compensated chassis

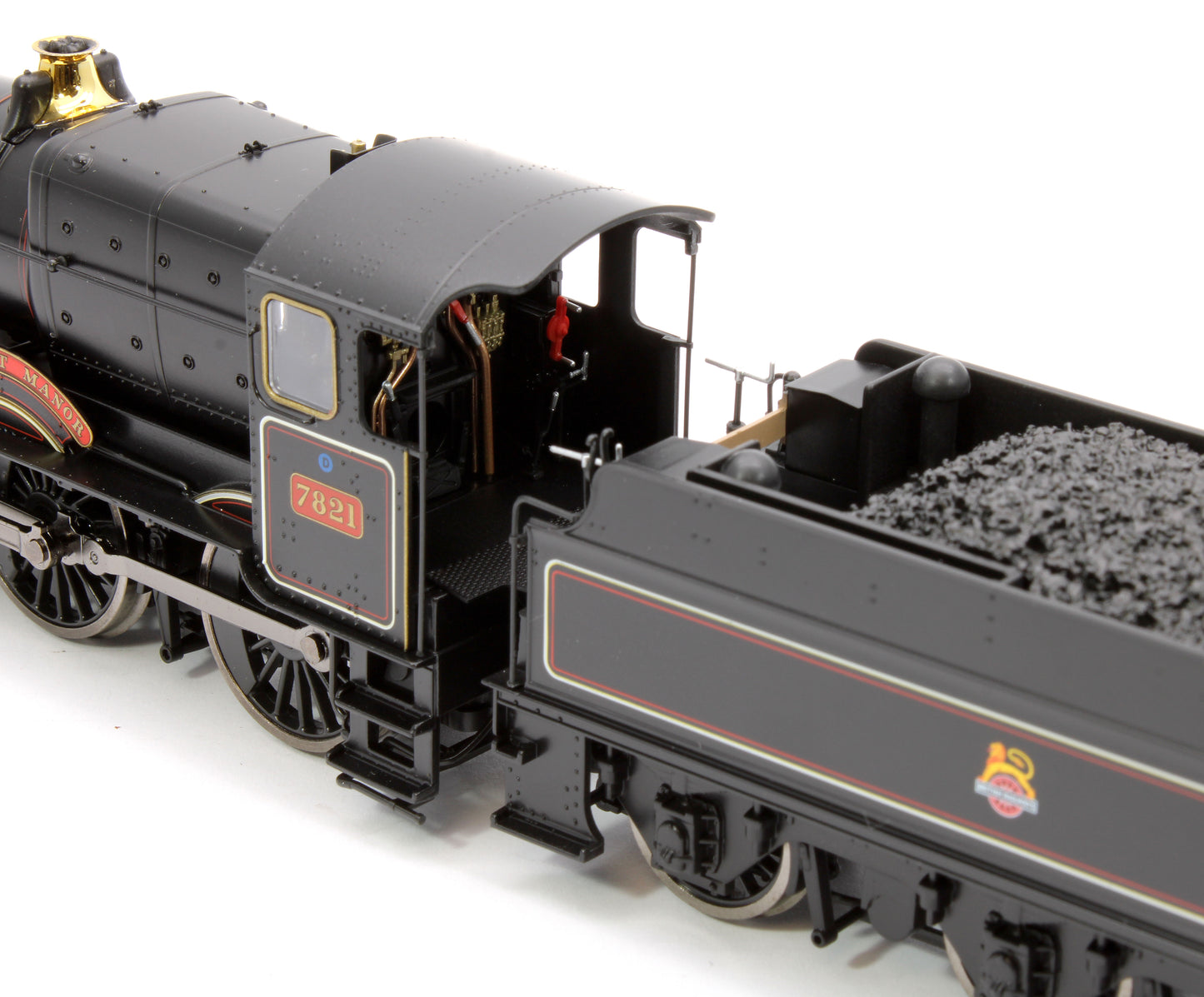

- Detailed cab interior with screw reverse

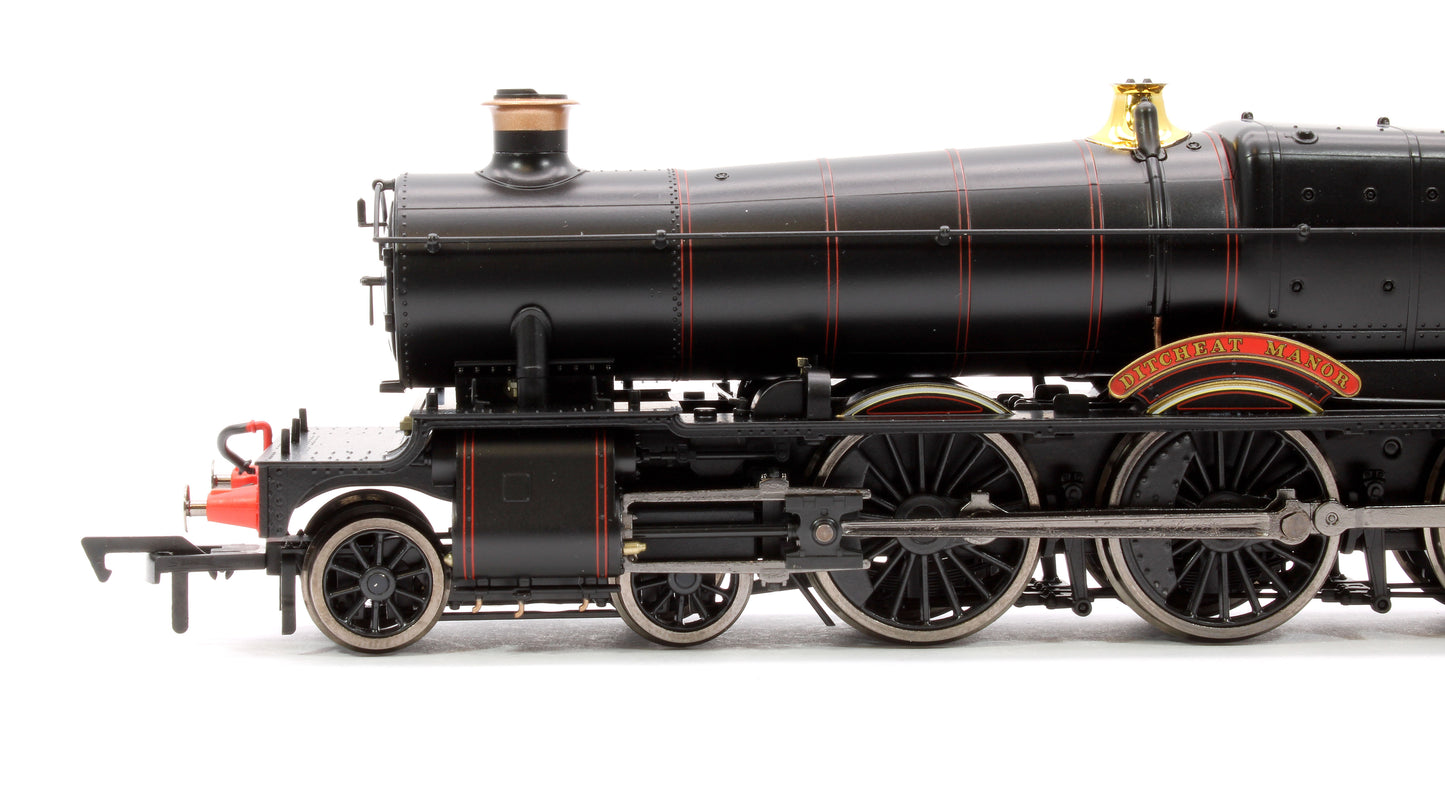

- The front pony truck is also sprung and operates on a cam so the model will negotiate R2 curves with ease.
- A slide in PCB offers simple ‘tool-free’ installation of a NEXT-18 DCC decoder and a ’no-solder’ speaker connection. This board slides through the smoke box door and connects directly to the locomotive mother board.

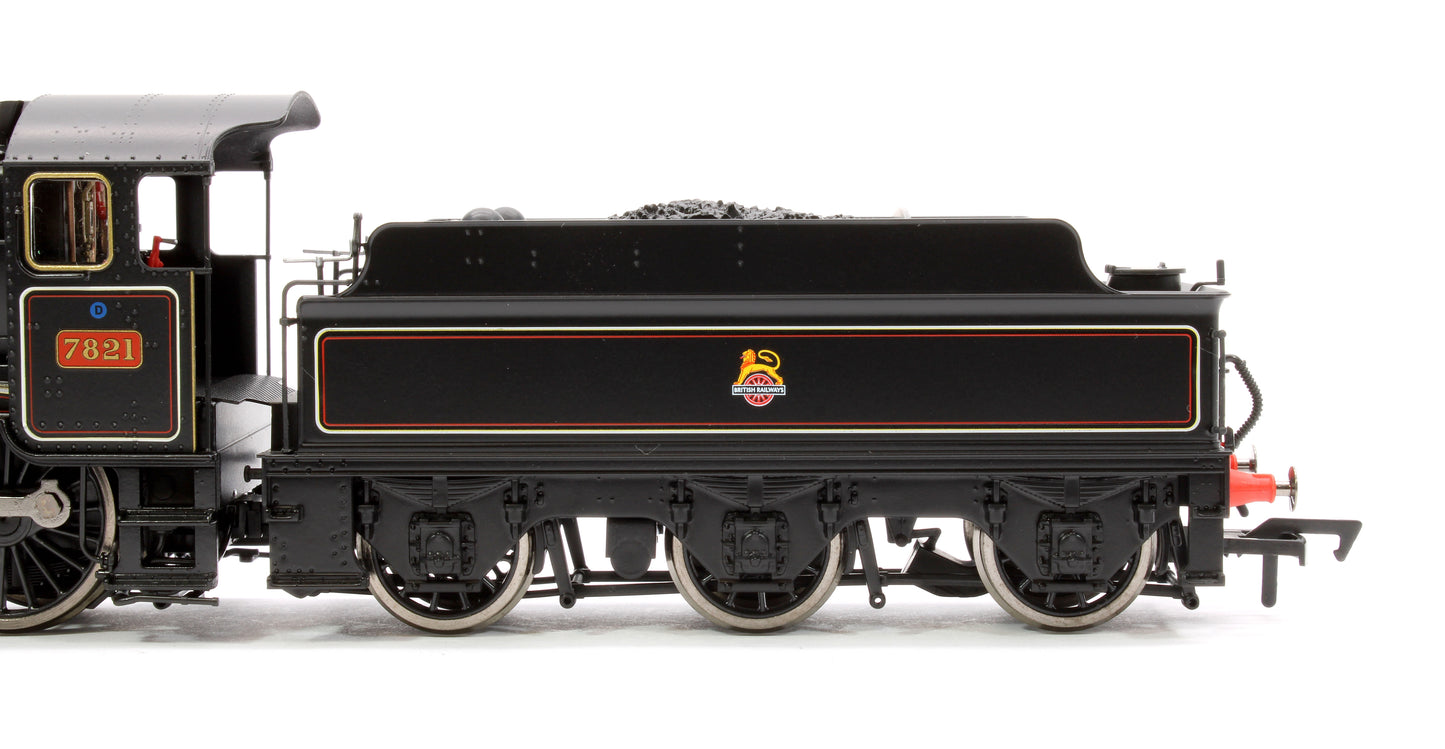

- The tender to locomotive drawbar includes reliable electrical connections moulded within the close-coupling push-fit coupling. This eliminates wired plugs and unreliable wiper style connections.

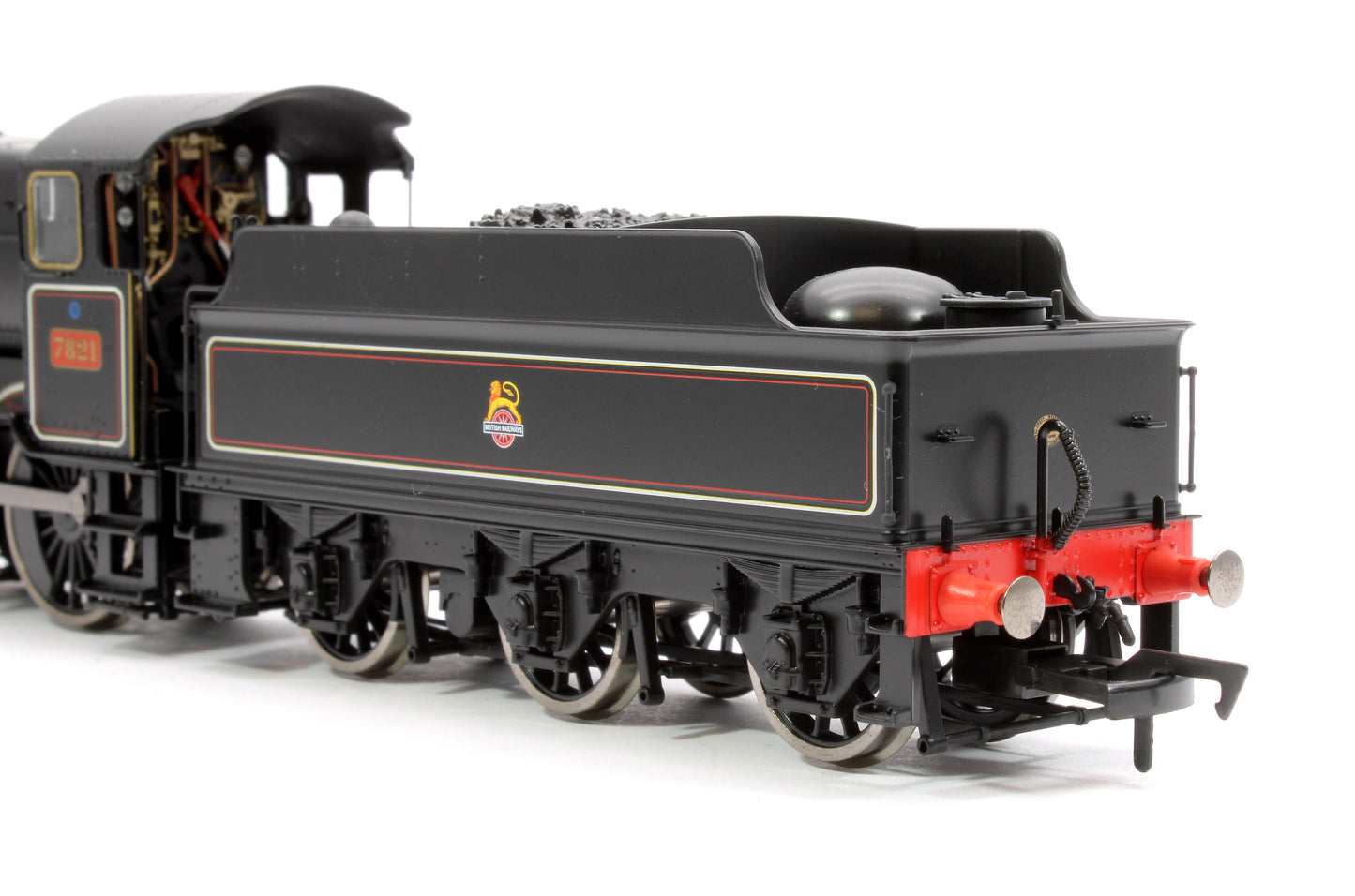

- The locomotive and tender have electrical pick-up on all driving and tender wheels
- Firebox glow
- Dapol’s proven slow speed mechanism and high torque motor
PROTOTYPE SPECIFICATIONS
- CLASS 78xx (Manor)
- BUILT BY GWR/BR Swindon Works
- ENTERED SERVICE 1938
- NUMBER BUILT 30
- OPERATOR GWR / BR
- WHEEL CONFIGURATION 4-6-0
- PURPOSE Local Passenger and Freight
- NUMBER PRESERVED 9
MODEL SPECIFICATIONS

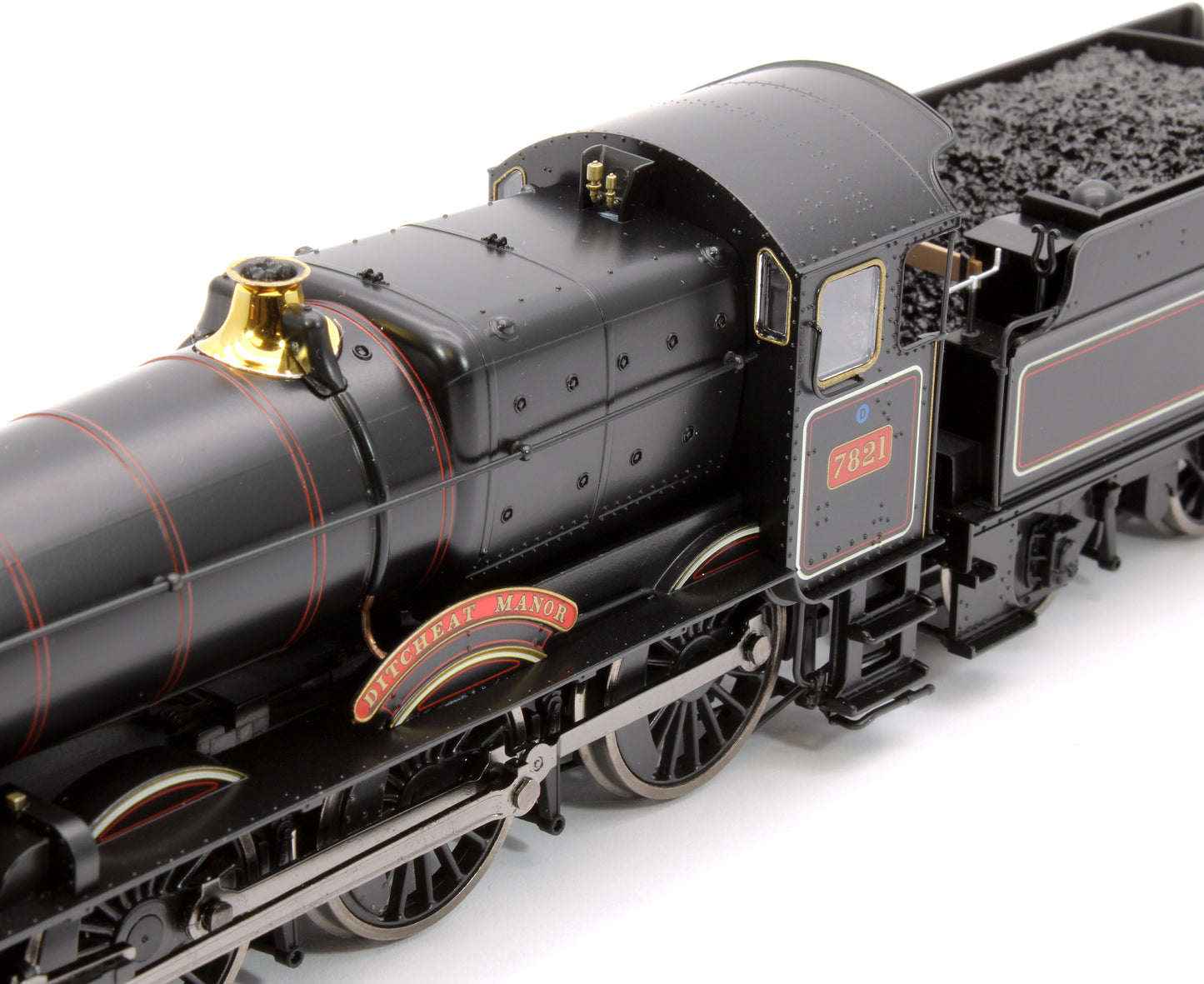

- NAME Ditcheat Manor
- LIVERY BR Lined Black
- DCC TYPE DCC Sound Fitted
- TRACK SUPPLY 2 Rail DC
- FINISH Pristine
MEASUREMENTS
- LENGTH OVER BUFFERS 247mm
