Digital Plus by Lenz 10330-01 Silver Direct + 1.0/1.8A with NEM 652 plug

10330-01 Digital Plus by Lenz
  • Silver Direct + 1.0/1.8A with NEM 652 plug
1 2
£33.50
-15%
UK tax included. Shipping calculated at checkout.
Availability: In stock
View full details
Order within the next to be eligible for Next Day Delivery (T&Cs apply, see shipping policy for next day services.)
We Want Your
Second-Hand Items
top prices paid
click to find out more

Product Details

SKU 10330-01
Vendor Digital Plus by Lenz
Categories Best selling products Control & Digital DCC Decoders Digital Plus by Lenz In stock Items Latest Releases New products
Share
Features

Product Description

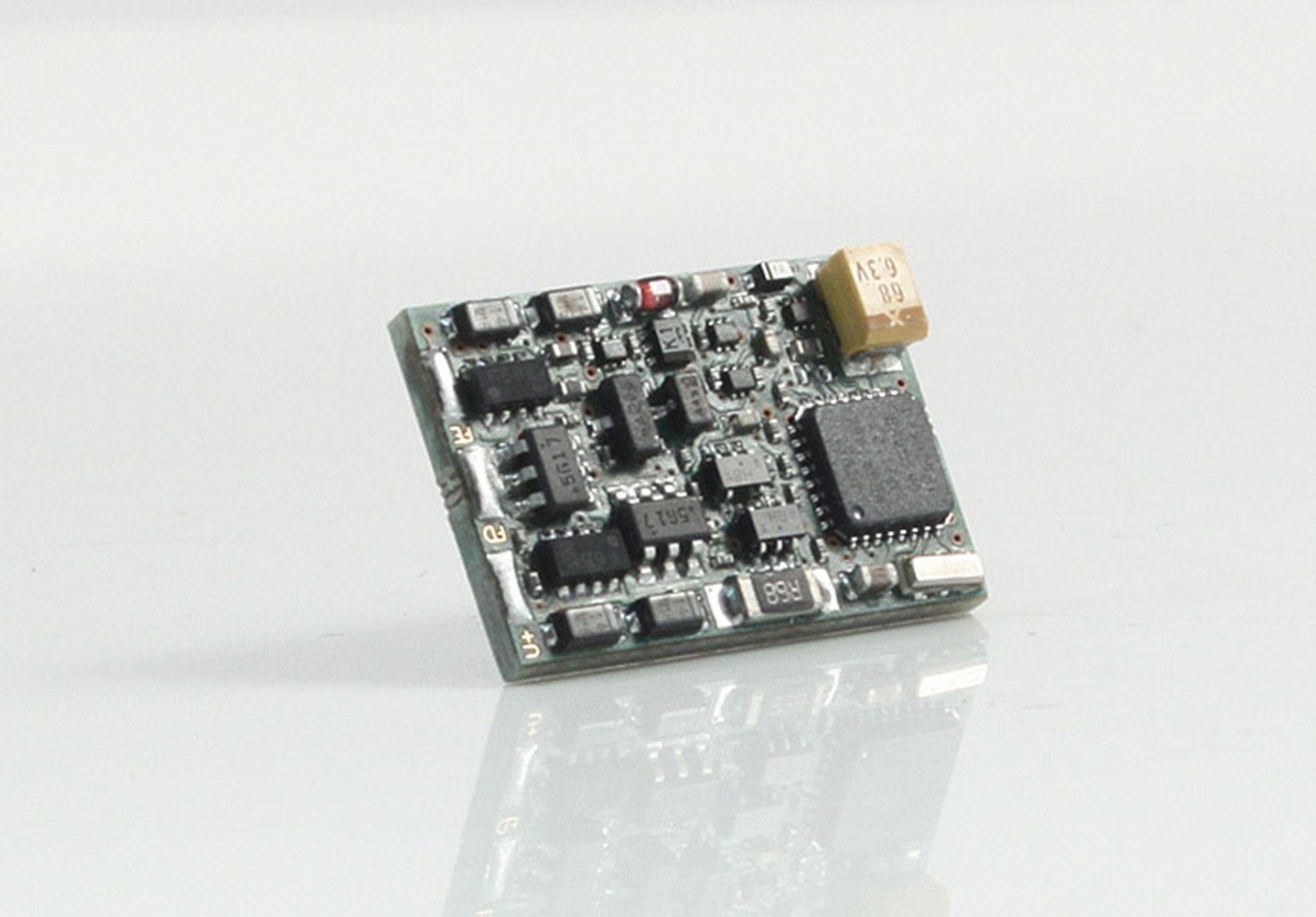

The DIGITAL plus SILVER locomotive decoder has a built in NMRA 8 pin plug and is suitable for all DC locomotives with continuous current draw of 1.0 Amp. or less that have a DCC Medium plug socket.

The characteristics of the decoder are:

  • Super smooth and silent high frequency back-emf motor control.
  • Supports Automatic Braking Control (ABC)
  • Adjustable precision stopping control.
  • Shunting speed on F3
  • Selectable for operation with 14/27, or 28/128 speed steps.
  • Operation on conventional DC layouts is possible or can be disabled.
  • Motor output = 1A continuous, 1.8A max, > 5 A stall.
  • Motor and function outputs protected.
  • Four function outputs rated at 100mA each with advanced function mapping.
  • Directional or independent lighting with dimming and special effects.
  • Support for Multiple traction and long addresses (Loco addresses up to 9,999)
  • Support for programming on the mainline (Programming on Main POM)
  • Support for all form of programming as described in NMRA RP-9.2.3
  • RailCom
  • Size: L 19mm x W 13 mm x H 3.35mm.
