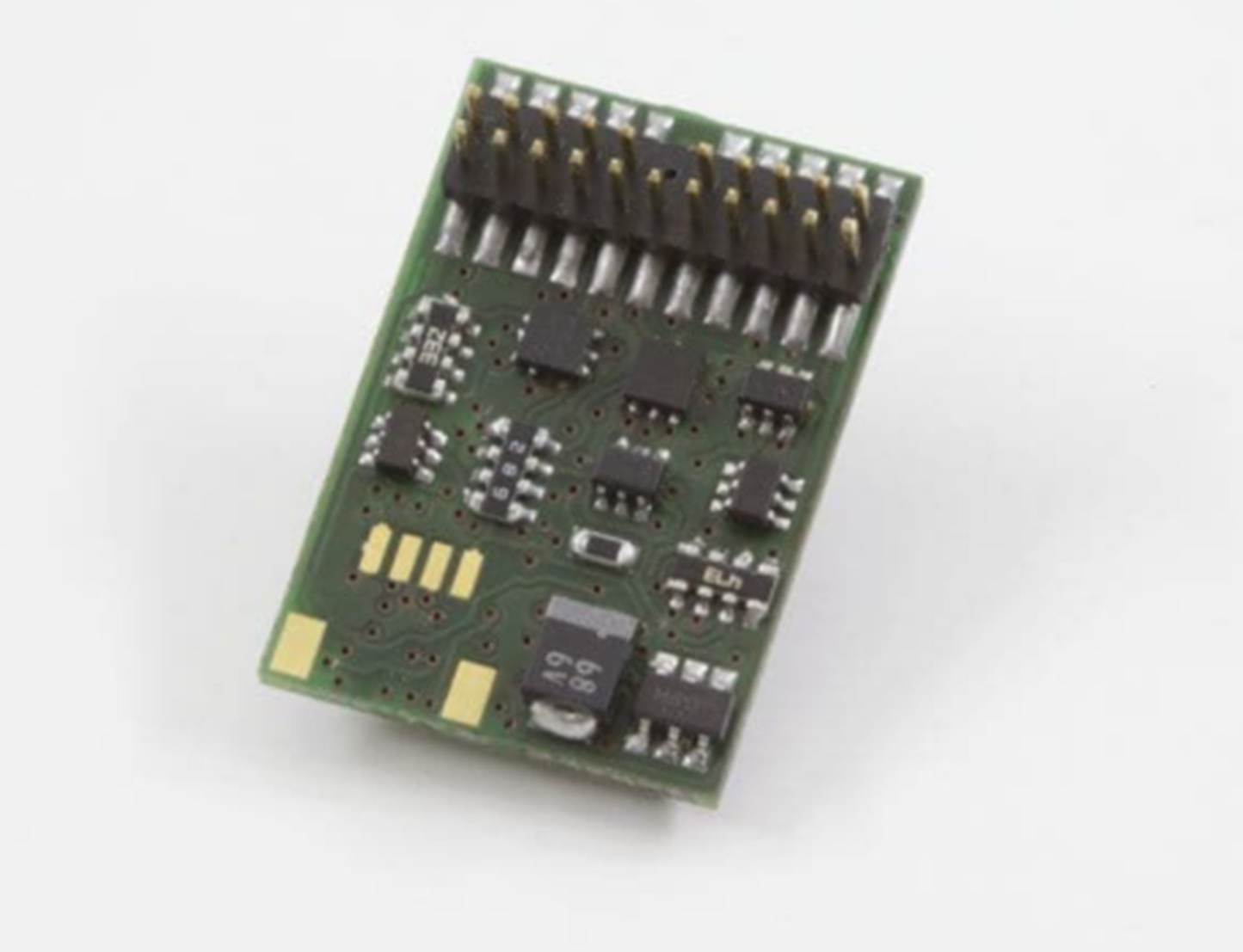

Digital Plus by Lenz 10322-01 Silver+ PluX22

Product Description

The DIGITAL plus SILVER PluX22 locomotive decoder has a built in NMRA 22 pin plug and is suitable for all DC locomotives with continuous current draw of 1.0 Amp. or less. For OO/HO models with PluX22 decoder plug

The characteristics of the decoder are:

• Super smooth and silent high frequency back-emf motor control.
• Supports Automatic Braking Control (ABC)
• Adjustable precision stopping control.
• Shunting speed on F3
• Selectable for operation with 14/27, or 28/128 speed steps.
• Operation on conventional DC layouts is possible or can be disabled.
• Motor output = 1A continuous, 1.8A max, > 5 A stall.
• Motor and function outputs protected.
• 9 function outputs rated at 100mA each with advanced function mapping. (Maximum for all functions 500mA
• Directional or independent lighting with dimming and special effects.
• Support for Multiple traction and long addresses (Loco addresses up to 9,999)
• Support for programming on the mainline (Programming on Main POM).
• Support for all forms of programming as described in NMRA RP-9.2.3
• S.U.S.I. Interface through pins 1-4 in the PluX interface for specialist modules
• RailCom
• Size: L 22 mm x W 15mm x H 6mm
