Digital Plus by Lenz 10312-01 Silver + PluX 12 0.75/1.0A - 2 Function outputs with NEM 653 plug

10312-01 Digital Plus by Lenz
  • Silver + PluX 12 0.75/1.0A - 2 Function outputs with NEM 653 plug
1 1
£27.95
-16%
UK tax included. Shipping calculated at checkout.
Availability: In stock
View full details
Order within the next to be eligible for Next Day Delivery (T&Cs apply, see shipping policy for next day services.)
We Want Your
Second-Hand Items
top prices paid
click to find out more

Product Details

SKU LEN-10312-01
Vendor Digital Plus by Lenz
Categories Best selling products Control & Digital DCC Decoders Digital Plus by Lenz In stock Items Latest Releases New products
Share
Features

Product Description

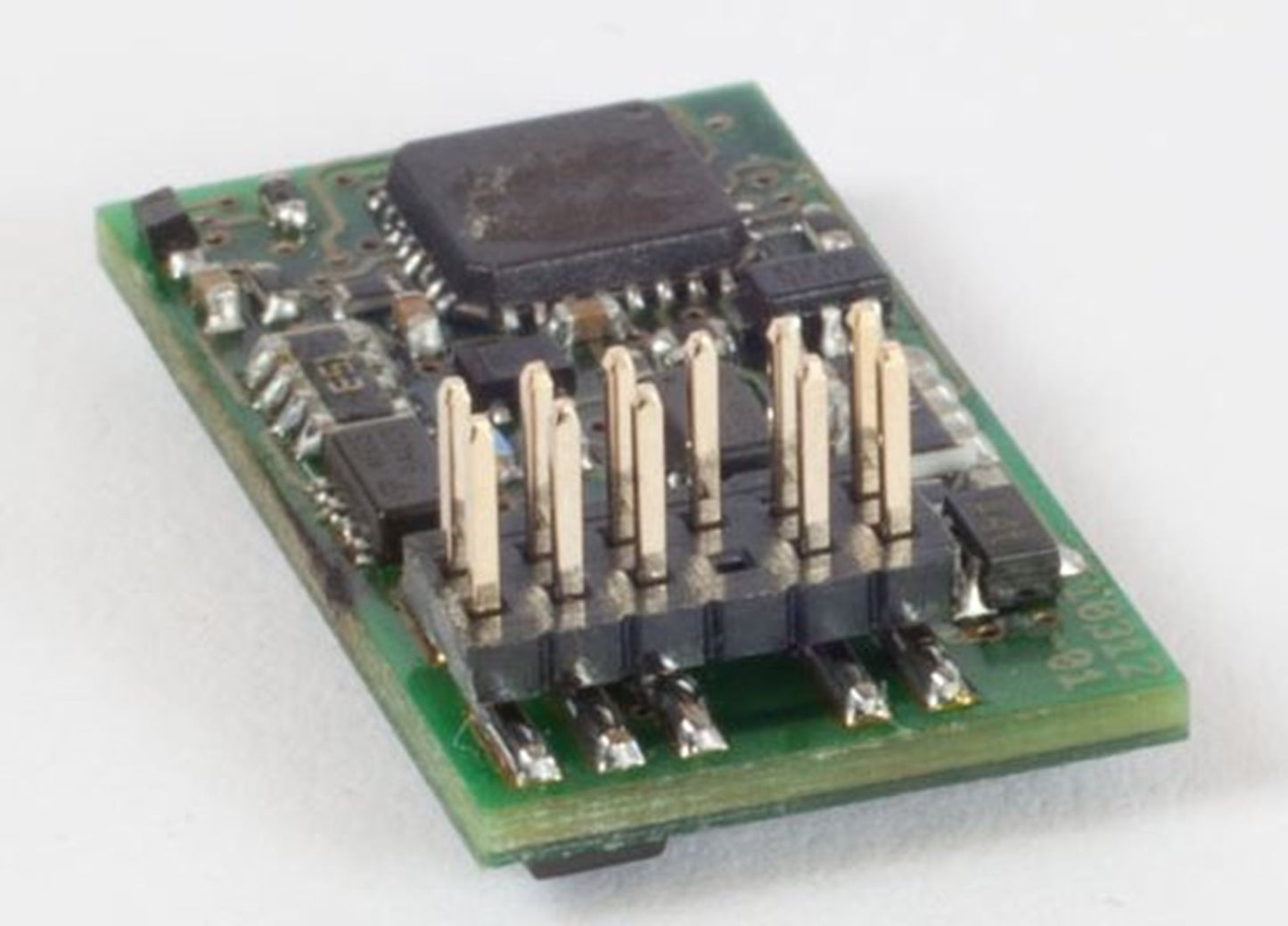

The Digital Plus Silver locomotive decoder is suitable for all DC locomotives with continuous current draw of 0.75Amp or less.

The characteristics of the decoder are:

  • Super smooth and silent high frequency back emf motor control
  • Supports Automatic Braking Control (ABC)
  • Shunting speed on F3
  • Suitable for operation with 14/27 or 28/128 speed steps
  • Operation on conventional DC layouts is posible or may be disabled
  • Motor output = 0.75A continuous 1.0A max
  • Motor and function outputs have short circuit protection
  • Four function outputs rated at 500mA each with advanced function mapping
  • Directional or independent lighting with dimming and special effects
  • Support for Multiple traction and long addresses (Loco addresses up to 9,999)
  • Support for programming on the mainline (Programming on Main POM)
  • Support for all forms of programming as described in NMRA RP-9.2.3
  • RailCom
  • SUSI solder points
  • Size: L 20 x W 11 x H 3.9mm.
