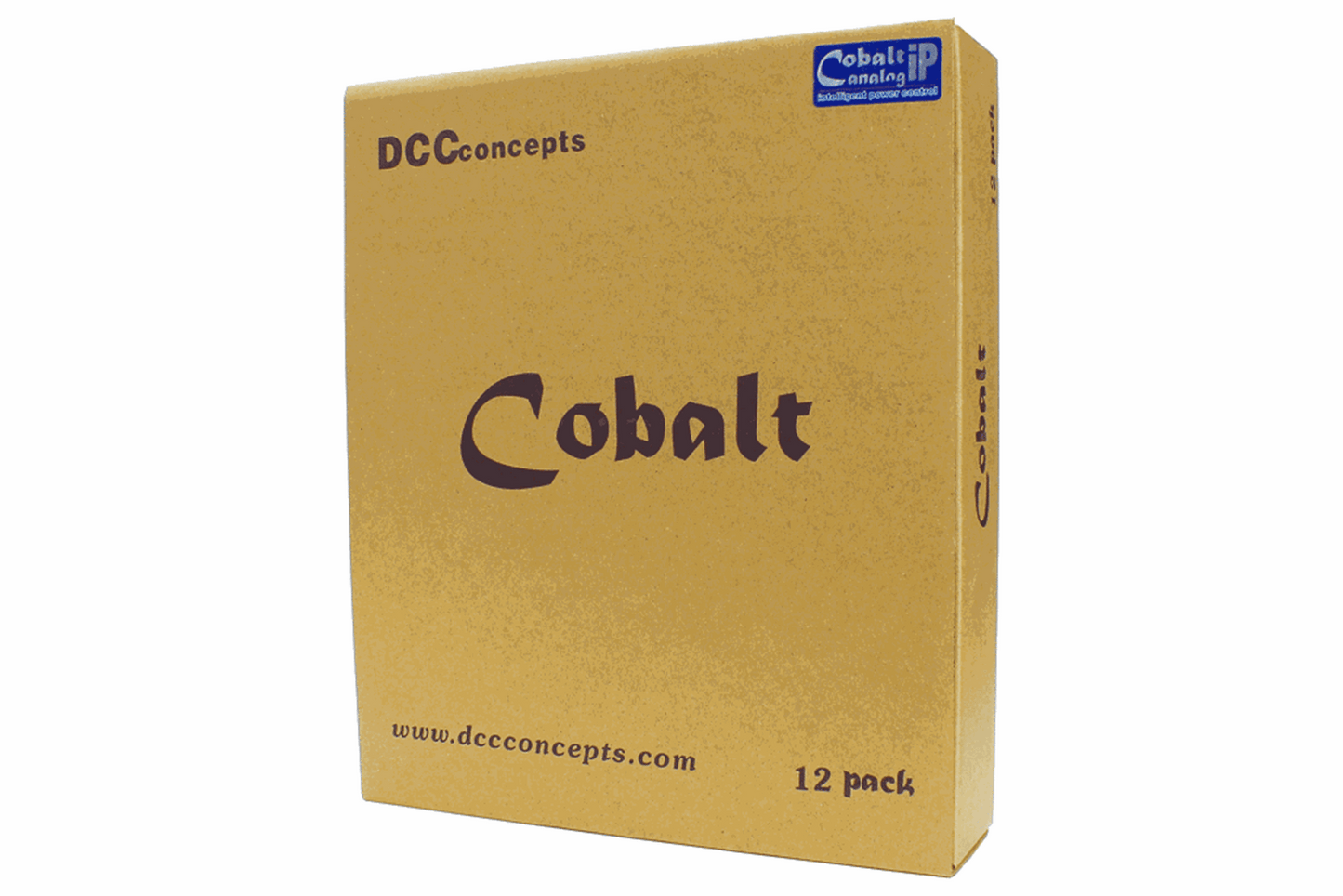

Twelve Cobalt iP Analog “Intelligent Power” Turnout Motors with all installation accessories including mounting screws and one of our very popular double-sided foam mounting pads.
Suitable for all gauges from large to very small, we even have an easy-to-use Cobalt Installation Template complete with Tools!
The Cobalt iP’s super-low static current draw means very low power bus loading and the Cobalt iP is also able to cope with a very wide range of DC power supply voltages. We prefer 9~12V regulated power but any voltage from 7 to 23 volts is acceptable. Similarly, connection via an accessory decoder to a wide range of DCC track voltage is also OK – covering the full spectrum of DCC standards, 9~24V. For DCC control we strongly recommend that you use our AD8fx decoders to add additional functionality not available from other brands.
The Cobalt iP is supplied with the throw bar already centred for easy installation and it has three “break before make” changeover switches. One is a low power SPDT switch linked to the Cobalt iP drive power directly to allow easy connection of low current lighting (for example panels or signals) or for linking to your computer or system control to report turnout position. The other two are super high power SPDT switches suitable for up to 5 amps continuous power handling and so are usable for frog polarity, interlocking or many similar applications.
Because Cobalt-IP “Intelligent Power” Analog motors are switched with reversing DC power, the LEDs for control panel indication can simply be put in-line with power leads! You can then use all the switching for other layout needs.
You can also have it both ways with the Cobalt iP. Just add digital control with our Cobalt AD8fx accessory decoders and still retain the ability for both conventional control panel as well as DCC or computer control at any time!
All of this – with a lifetime warranty!
Width 28.5mm (67mm over the mounting wings)
Depth 40mm (48mm over the mounting wings)
Height 44mm (67mm over the connector)
