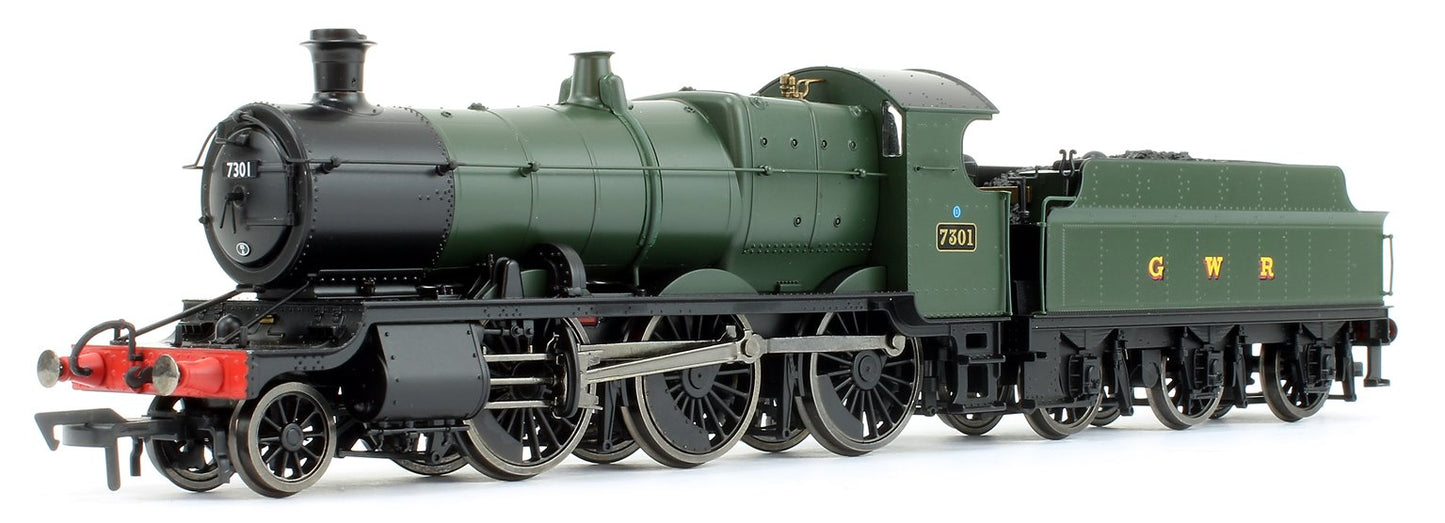

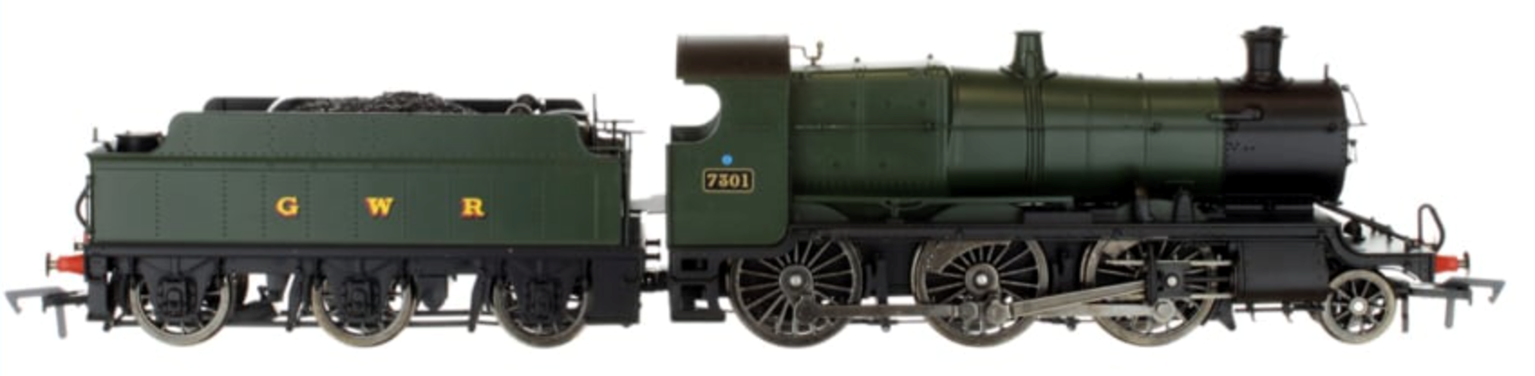

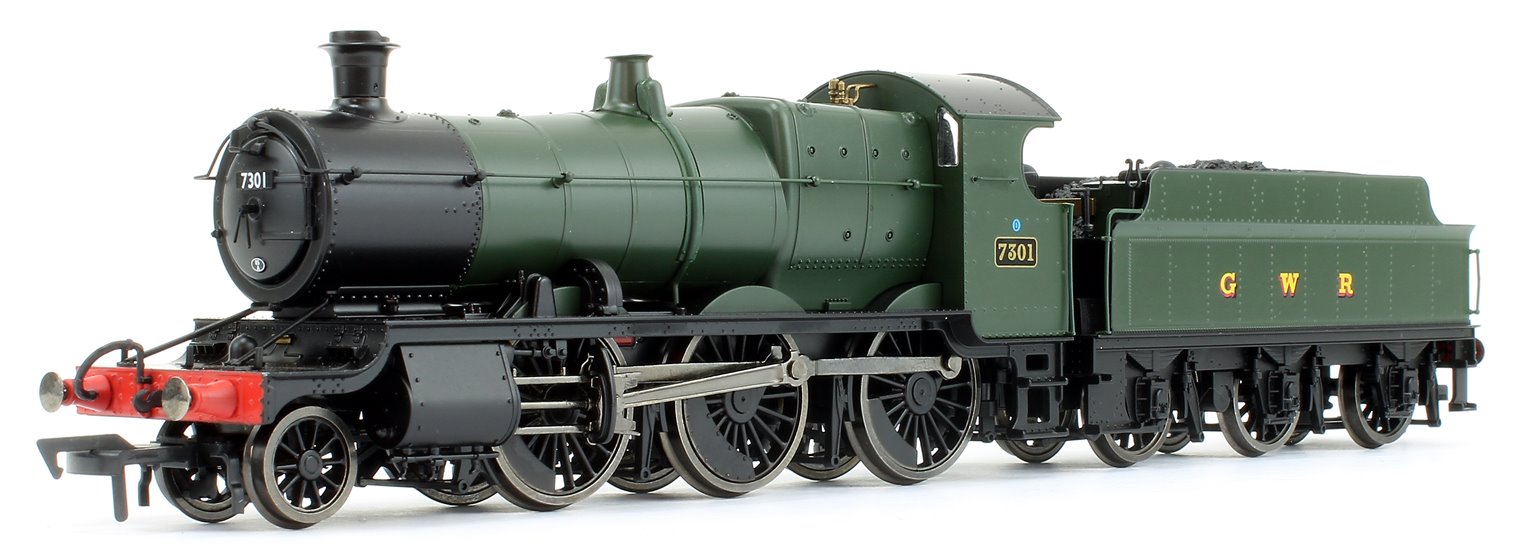

Dapol 4S-043-003 GWR Mogul 2-6-0 Locomotive Green with GWR & BR Smoke Box Number Plate #7301
Product Details
| SKU | DAP-4S-043-003 |
|---|---|
| Vendor | Dapol |
| Categories | Best selling products Dapol Discontinued Inventory Clearance Era 4 HO-OO In stock Items Latest Releases Locomotives New products OO Gauge Latest Releases OO Gauge Locomotives OO Gauge scale OO Gauge Steam Locomotives Product Options Steam Locomotives |
| Scale | OO Gauge |
| Share | |
| Features |
|
Product Description
The series of models being manufactured by Dapol are to the later Churchward build from numbers 5390 through to 7321, constructed between 1920 and 1923 with the final eight (6362-6369) in 1925 under Collett. These Collett locomotives had outside cylinder steam pipes fitted from new, whilst this feature was added to the majority of the earlier batch from the late 1940’s to the early 1950’s. The last to be withdrawn was 6395 in November 1964.
FEATURES
- Churchward Taper Buffers
- Collett Straight Shank Buffers
- Smokebox with/without cylinder steam pipes
- Tall vacuum pipe for early versions
- Lower vacuum pipe for later period
- Tall safety valve cover
- Short safety valve cover
- Smoke box top mounted lamp bracket
- Smoke box door mounted lamp bracket for B.R. period
- Smoke box number plate for B.R. period
- Hinged fall plate

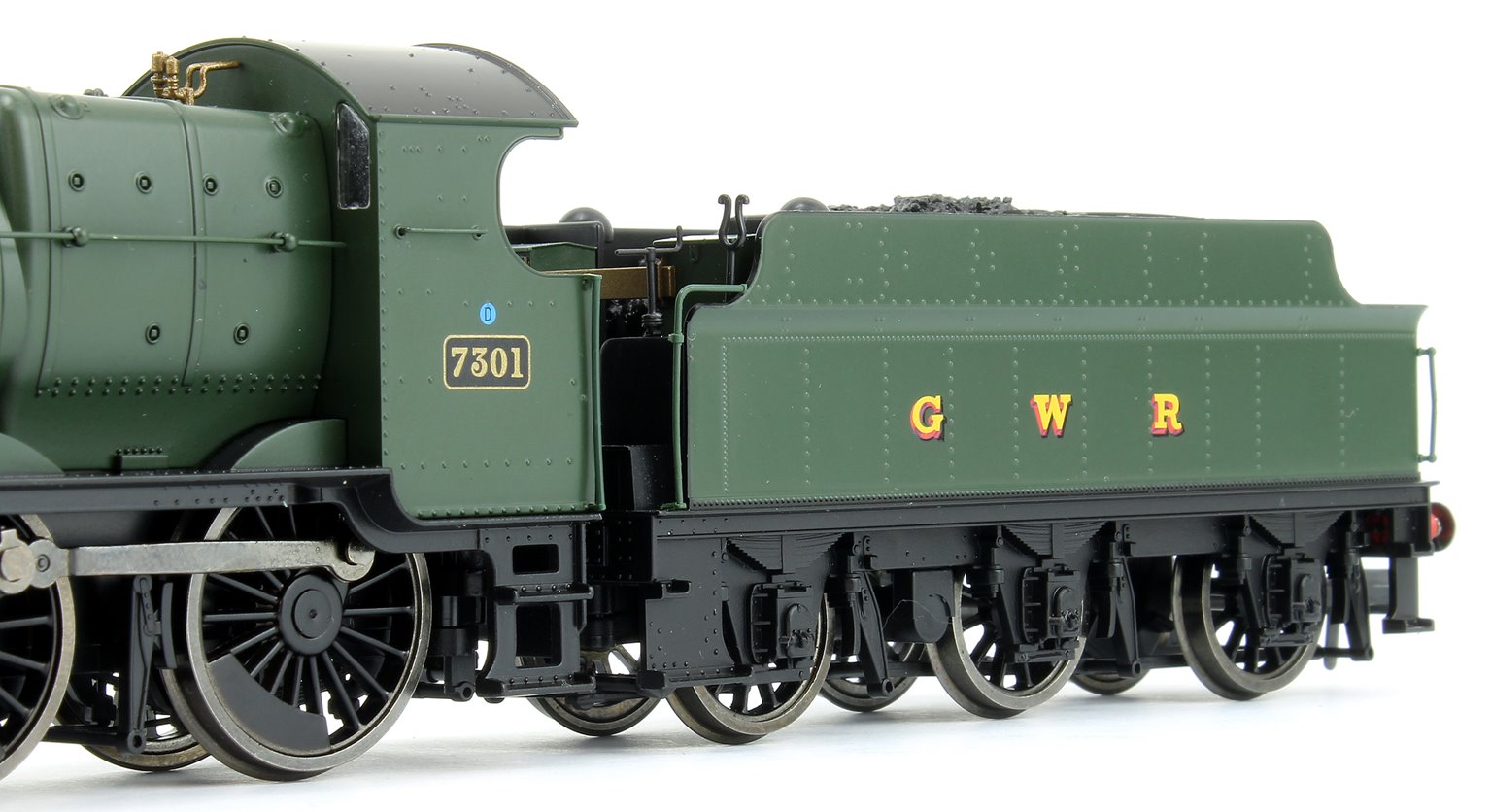

- The tender is a standard Churchward 3,500 gallon type
MODEL
Many original GA drawings were used in the development of these accurate and authentic models. The locomotive has a diecast chassis with a five pole motor driving the rear wheels. To add compensation the centre driving wheels are sprung, the front pony truck is also sprung and operates on a cam so the model will negotiate R2 curves with ease.
FEATURES
- A slide in PCB offers simple ‘tool-free’ installation of a NEXT-18 DCC decoder and a ’no-solder’ speaker connection. This board slides through the smoke box door and connects directly to the locomotive mother board
- The tender to locomotive drawbar includes reliable electrical connections moulded within the close-coupling push-fit coupling. This eliminates wired plugs and unreliable wiper style connections
- The locomotive and tender have electrical pick-up on all driving and tender wheels
- An optional base reflex speaker can be fitted into the tender. An audio frequency filter is integrated within the main locomotive PCB to ensure each speaker reproduces within it’s ideal frequency range.
- Firebox glow
- Dapol’s proven slow speed mechanism and high torque motor
SPECIFICATIONS
- CLASS Mogul
- LIVERY Green GWR & BR Smokebox Numberplate
- ERA 3 (1923 - 1947)
- WHEEL CONFIGURATION 2-6-0
- DCC TYPE DCC Ready
- TRACK SUPPLY 12V DC
- FINISH Pristine
MEASUREMENTS
- LENGTH OVER BUFFER 240mm
- WIDTH 34mm
- HEIGHT 48mm
