Circuitron 800-5204 DT-4 Rolling Stock Detector

DT-4 Rolling Stock Detector

Details:

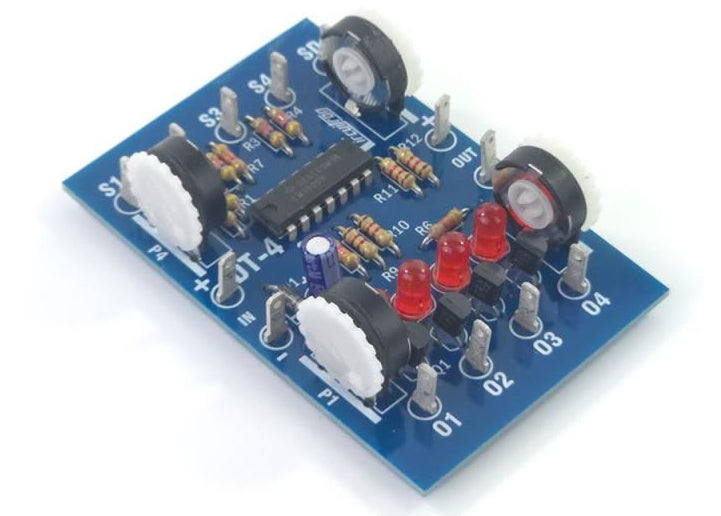

The Circuitron DT-4 Quad Optical Detection Circuit is a versatile train detection system designed to monitor rolling stock movement and location throughout a model railway layout. Incorporating four completely independent detection circuits on a single board, the DT-4 provides an efficient and flexible solution for hidden staging yards, concealed trackage, train positioning, automation and accessory control.

Using Circuitron's proven opto-electronic detection technology, each detection channel senses when a locomotive, coach or freight car blocks ambient light from its corresponding Opto-Sensor. No modifications to rolling stock are required, allowing the DT-4 to detect both powered and unpowered vehicles in any scale with complete reliability.

Each of the four detection circuits includes its own sensitivity adjustment, enabling fine-tuning to suit varying lighting conditions across different areas of the layout. The independent outputs can be used separately or combined within larger automation systems, making the DT-4 one of the most flexible train detection solutions available for advanced model railway operations.

One of the DT-4's most popular applications is monitoring trains in hidden staging areas. By positioning sensors at strategic points along concealed tracks, modellers can use panel indicators to track train locations and movements even when completely out of sight. Sensors can also be placed at the ends of sidings or storage tracks to trigger warning lights, buzzers, relays or automatic track power shutoff systems.

The DT-4 is equally effective as a control input for automation systems, making it an excellent companion for Circuitron time delay modules, turnout controls, relay circuits and automatic reversing systems. Its ability to provide reliable occupancy detection without any rolling stock modifications makes it an indispensable tool for sophisticated layout operation.

The Circuitron DT-4 is ideal for a wide range of model railway detection and automation applications. It can be used to provide occupancy indication in hidden staging yards, allowing operators to monitor train positions even when they are out of sight. The system is equally effective for train location monitoring panels, end-of-track detection, and siding protection systems that activate warning lights, buzzers or automatic track power shut-off. The DT-4 can also serve as a reliable trigger for automated turnout control, relay activation circuits and automatic reverse loop operation. For more advanced layouts, it forms an excellent foundation for comprehensive layout automation and train sequencing systems, helping to improve both operational realism and control.

Features:

• Four independent optical detection circuits on a single board
• Detects powered and unpowered rolling stock without modifications
• Ideal for hidden staging yards, train tracking and layout automation

Additional Information:

• Detection Method: Opto-electronic train detection
• Number of Detection Channels: 4 independent circuits
• Rolling Stock Modification Required: No
• Detects: Powered and unpowered rolling stock
• Suitable Scales: All model railway scales
• Operating Voltage: 6V – 20V DC
• Recommended Power Supply: Filtered or regulated DC
• Output Type: Switched negative (ground)
• Maximum Output Current: 250mA per output

Measurements:

• Length: 76.2 mm
• Width: 76.2 mm
