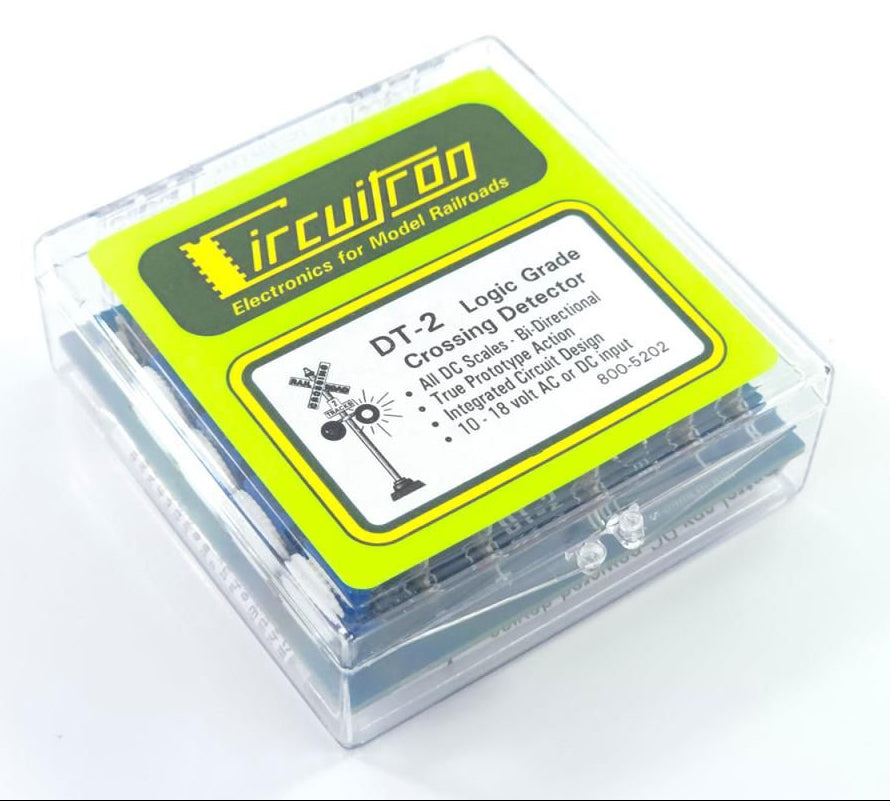

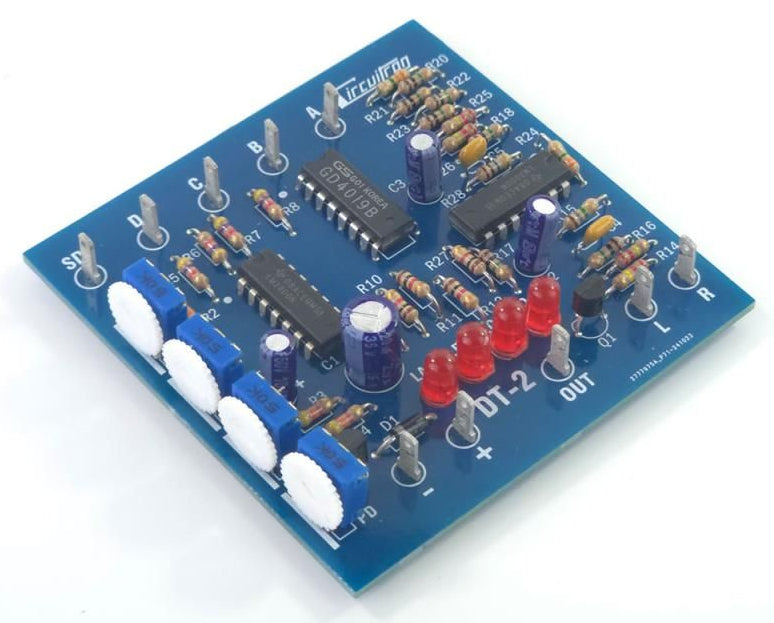

Circuitron 800-5202 DT-2 Grade Crossing Detector Full Logic

DT-2 Grade Crossing Detector Full Logic

Details:

The Circuitron DT-2 is a premium-grade train detection system engineered to deliver the most realistic grade crossing operation possible on DC-powered model railways. Designed for serious modellers who demand prototype accuracy, the DT-2 accurately replicates real-world crossing behaviour regardless of train length, providing dependable activation for everything from a single locomotive to a 100-car freight train.

Unlike conventional optical detection systems, the DT-2 incorporates sophisticated onboard memory circuitry that continuously tracks train movements through the protected area. Once an approaching train is detected, the crossing remains activated until the final vehicle has completely cleared the crossing, creating highly realistic operation without requiring sensors to remain covered throughout the train's passage.

The system also recognises more complex operating scenarios. If a train approaches a crossing, stops before reaching it and then reverses away, the DT-2 automatically detects the movement and deactivates the crossing protection, closely mirroring prototype railway signalling behaviour. This advanced logic provides a level of operational realism that is difficult to achieve with basic detection systems.

Supplied with four Opto-Sensors for a standard installation, the DT-2 offers fully bi-directional operation and can be powered from either AC or DC supplies. Its switched ground output is compatible with a wide range of crossing flashers, warning signals and automated accessories, making it an ideal choice for advanced model railway signalling systems.

This is Circuitron's most advanced DC grade crossing detector and is particularly well suited to layouts where realistic operation is a priority. Its ability to handle trains of any length, including single locomotives, eliminates the compromises often associated with simpler optical detection systems.

Features:

• Provides realistic grade crossing operation independent of train length
• Intelligent memory circuitry keeps crossings active until the last car clears
• Detects reversing trains and automatically cancels crossing activation when appropriate

Additional Information:

• Detection Method: Optical (Opto-Sensors)
• Number of Sensors Included: 4
• Direction Detection: Fully bi-directional
• Train Length Dependency: None
• Memory Function: Integrated train-tracking logic
• Power Requirement: 10V – 18V AC or DC
• Output Type: Switched ground/common (-)
• Maximum Output Current: 250mA
• Rolling Stock Modification Required: No

Measurements:

• Length: 76.2 mm
• Width: 76.2 mm
