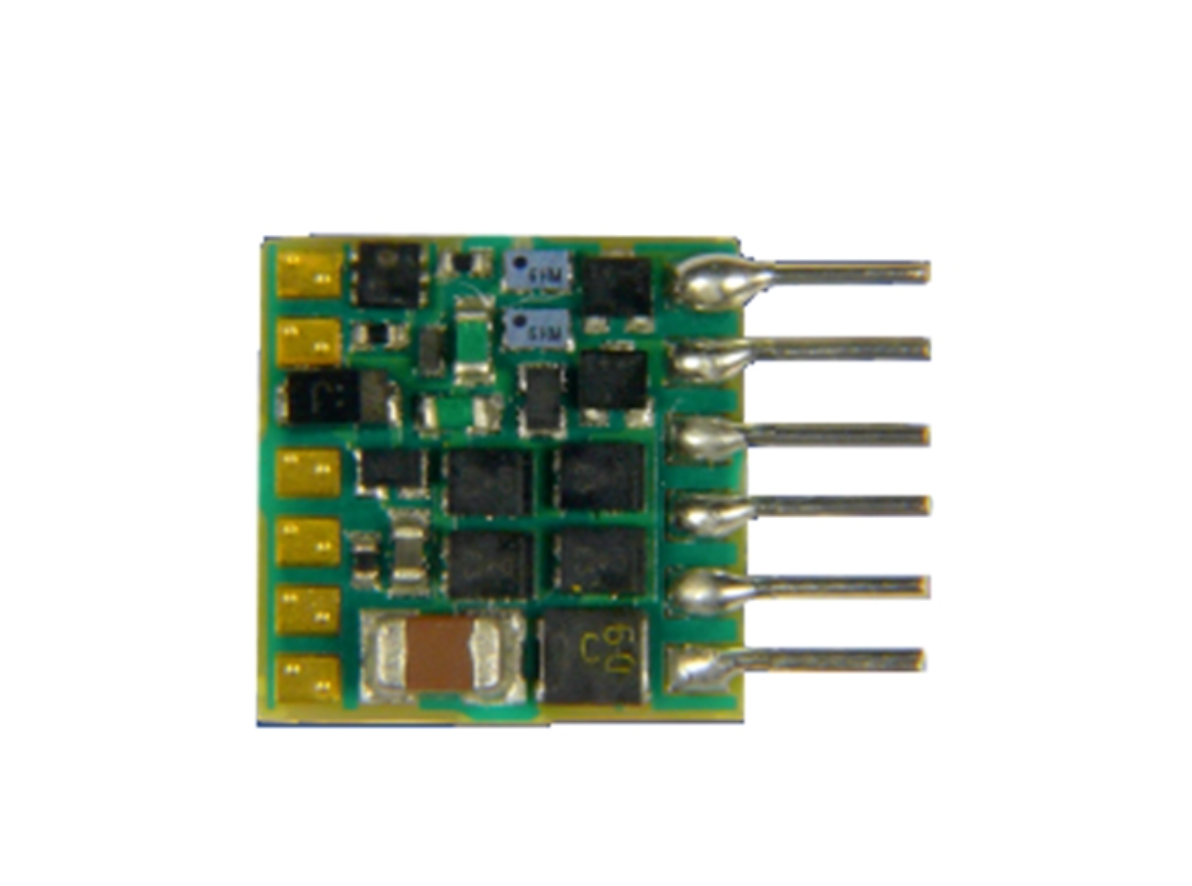

Bachmann 36-571 6 Pin Micro DCC Loco-Decoder (with Brake Button function)

36-571 Bachmann OO Gauge
1 2
£46.50
-15%
UK tax included. Shipping calculated at checkout.
Availability: On order
View full details
Order within the next to be eligible for Next Day Delivery (T&Cs apply, see shipping policy for next day services.)
We Want Your
Second-Hand Items
top prices paid
click to find out more

Product Details

SKU 36-571
Vendor Bachmann
Categories Bachmann Bachmann OO Gauge Bachmann Winter 2021 Announcements Best selling products Control & Digital DCC Decoders HO-OO New products OO Gauge DCC Decoders OO Gauge scale
Scale OO Gauge
Share
Features

Product Description

A 6 Pin (NEM651) DCC Decoder suitable for models fitted with a 6 Pin DCC decoder socket and where minimal space is available for the decoder, for instance the Graham Farish Class N Scale 03 and 04 Diesel Shunters and the Bachmann Narrow Gauge OO9 Scale Quarry Hunslets.

Highlights include:

  • Multi-mode (NMRA-DCC format, Motorola protocol and DC Analogue) with Back EMF function
  • 6 powered function outputs
  • 0.7A continuous load
  • Suitable for models equipped with DC motors (including coreless motors)
  • Brake Button function for realistic control of braking (operates on F2)

Operating Modes

  • Multi-mode (NMRA-DCC format, Motorola protocol and DC Analogue) with Back EMF function
  • 14, 28 and 128 speed steps
  • Short and Long addresses

Motor Control Features

  • Suitable for models equipped with DC motors (including coreless motors)
  • 0.7A continuous load
  • Variable pulse width frequency motor regulation (up to 40kHz)
  • Motor output overload protection; Back EMF (de-selectable)

Function Outputs

  • 6 powered-function outputs with overload protection (4 outputs connect via solder pads)
  • 500mA load per output
  • 500mA total load of all function outputs
  • Shunting speed and momentum key selectable

Dimensions

  • 8mm x 8mm x 2.4mm

Default Address

  • Address 3

Programming

  • DCC Service Mode & DCC PoM (Programming on Main)

Additional Features

  • RailCom® Feedback system
  • Upgradable firmware
