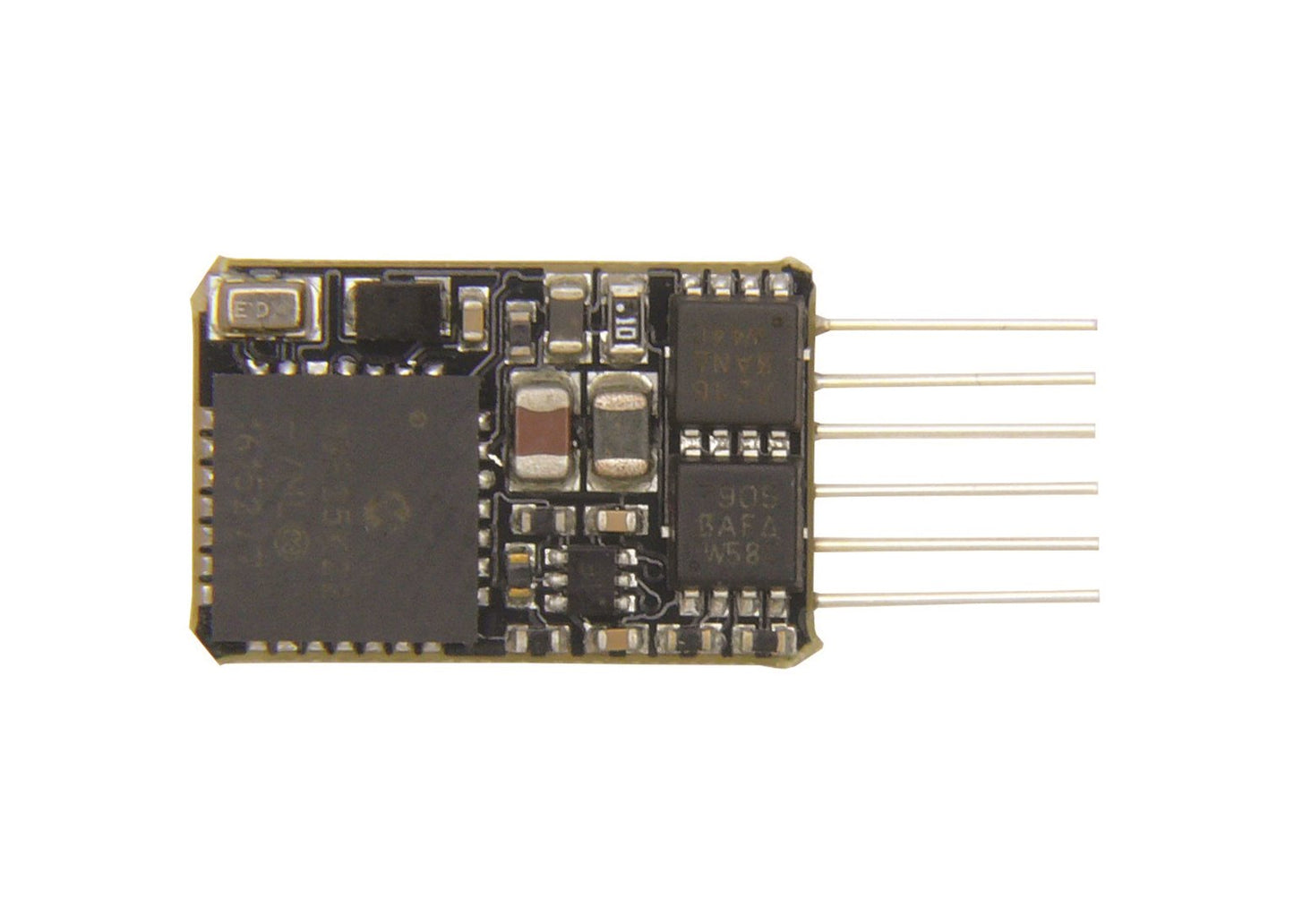

Bachmann 36-568A Bachmann 36-568A - 6 Pin DCC Decoder - New and Improved

A 6 Pin (NEM651) DCC Decoder suitable for models fitted with a 6 Pin DCC decoder socket (do not use with the Graham Farish 3F ‘Jinty’ and Class 64XX Pannier Tank – use 36-556RA with these models).

Highlights include:

• Multi-mode (NMRA-DCC format, Motorola protocol, DC Analogue and AC Analogue (Marklin)) with Back EMF function
• 4 powered function outputs (+2 logic level/SUSI outputs)
• 0.8A continuous load
• Suitable for models equipped with DC motors (including coreless motors)
• Brake Button function for realistic control of braking (operates on F2)

Operating Modes

• Multi-mode (NMRA-DCC format, Motorola protocol, DC Analogue and AC Analogue (Marklin)) with Back EMF function
• 14, 28 and 128 speed steps
• Short and Long addresses
• Motor Control Features
• Suitable for models equipped with DC motors (including coreless motors)
• 0.8A continuous load
• Variable pulse width frequency motor regulation (up to 40kHz)
• Motor output overload protection; Back EMF (de-selectable)

Function Outputs

• 4 powered-function outputs with overload protection (2 outputs connect via solder pads)
• 500mA load per output
• 500mA total load of all function outputs
• 2 additional logic level or SUSI outputs
• Shunting speed and momentum key selectable
• Dimensions
• 14mm x 9mm x 2.5mm

Default Address

• Address 3

Programming

• DCC Service Mode & DCC PoM (Programming on Main)

Additional Features

• RailCom® Feedback system
• Upgradable firmware
