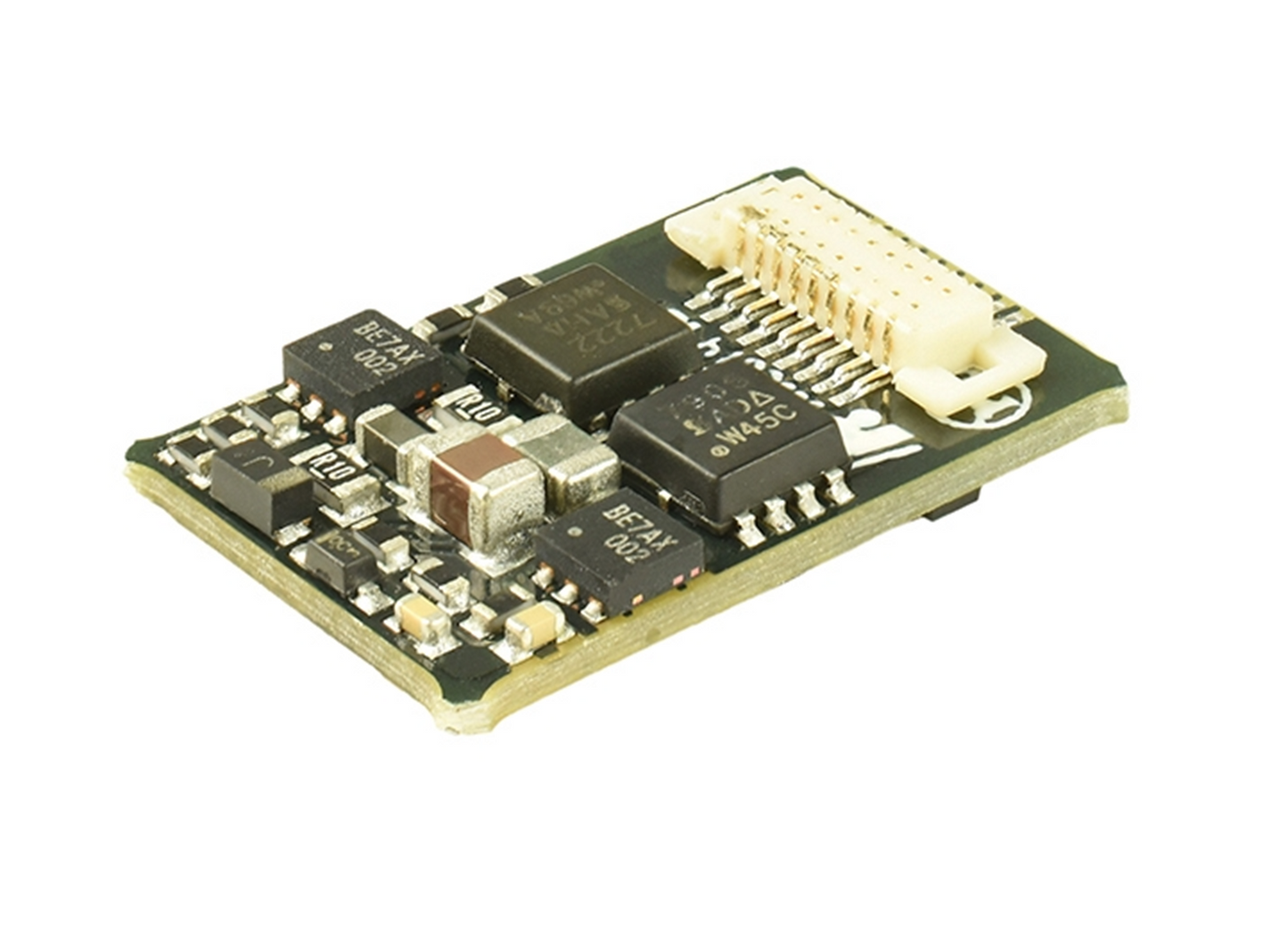

Bachmann 36-567A Next18 DCC Loco-Decoder (with Brake Button function)

36-567A Bachmann
  • Next18 DCC Loco-Decoder (with Brake Button function)
1 1
£29.50
-20%
UK tax included. Shipping calculated at checkout.
Availability: On order
View full details
We Want Your
Second-Hand Items
top prices paid
click to find out more

Product Details

SKU 36-567A
Vendor Bachmann
Categories Bachmann Best selling products Control & Digital DCC Decoders New products
Share
Features

Product Description

A Next18 (NEM662) DCC Decoder with brake Button function for realistic control.

Suitable for models fitted with a Next18 DCC decoder socket.

Highlights include:

  • Multi-mode (NMRA-DCC format, Motorola protocol, DC Analogue and AC Analogue (Marklin)) with Back EMF function
  • 4 powered function outputs (+2 logic level and 2 logic level/SUSI outputs)
  • 0.7A continuous load
  • Suitable for models equipped with DC motors (including coreless motors)
  • Brake Button function for realistic control of braking (operates on F2)


Operating Modes

  • Multi-mode (NMRA-DCC format, Motorola protocol, DC Analogue and AC Analogue (Marklin)) with Back EMF function
  • 14, 28 and 128 speed steps
  • Short and Long addresses
  • Motor Control Features
  • Suitable for models equipped with DC motors (including coreless motors)
  • 0.7A continuous load
  • Variable pulse width frequency motor regulation (up to 40kHz)
  • Motor output overload protection; Back EMF (de-selectable)


Function Outputs

  • 4 powered-function outputs with overload protection.
  • 500mA load per output
  • 500mA total load of all function outputs
  • 2 additional logic level outputs and 2 logic level/SUSI outputs
  • Shunting speed and momentum key selectable


Dimensions

  • 15mm x 9.5mm x 2.8mm


Default Address

  • Address 3


Programming

  • DCC Service Mode & DCC PoM (Programming on Main)


Additional Features

  • RailCom® Feedback system
  • Upgradable firmware
