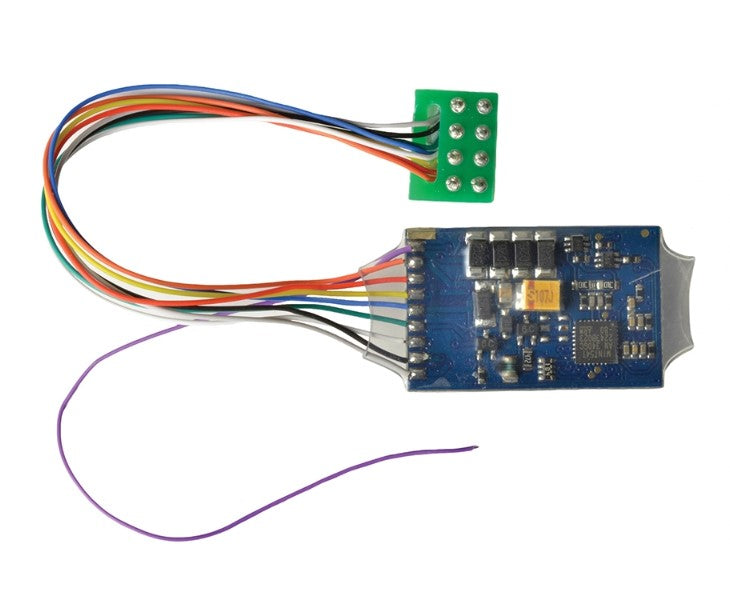

Bachmann 36-566A 0.9 Amp 4 Function 8 Pin DCC Decoder featuring RailComPlus

36-566A Bachmann
1 1
£28.50
-20%
UK tax included. Shipping calculated at checkout.
Availability: In stock
View full details
Order within the next to be eligible for Next Day Delivery (T&Cs apply, see shipping policy for next day services.)
We Want Your
Second-Hand Items
top prices paid
click to find out more

Product Details

SKU 36-566A
Vendor Bachmann
Categories Bachmann Best selling products Control & Digital DCC Decoders In stock Items Latest Releases New products
Share
Features

Product Description

A 8 Pin (NEM652) DCC Decoder suitable for models fitted with a 8 Pin DCC decoder socket

Highlights include:

  • Dual-mode DCC/DC decoder with Back EMF function
  • 4 powered function outputs
  • 0.9A continuous load
  • RailComPlus® for automatic registration on Dynamis Ultima
  • Suitable for models equipped with DC motors (including coreless motors)


Operating Modes

  • NMRA/DCC with 14, 28 and 128 speed steps
  • Short and Long addresses
  • DCC and DC operation (DC operation is de-selectable)
  • Automatic recognition of operational mode and DCC speed step selection
  • Supports Lenz® LG 100 braking sections


Motor Control Features

  • Suitable for models equipped with DC motors (including coreless motors)
  • 0.9A continuous load
  • Silent & safe 20kHz pulse width frequency motor regulation
  • Motor output overload protection; Back EMF (de-selectable)


Function Outputs

  • 4 powered-function outputs with overload protection
  • 250mA load per output
  • 500mA total load of all function outputs
  • Shunting speed and momentum key selectable


Dimensions

  • 25.5mm x 15.5mm x 4.5mm (+ wiring harness)


Default Address

  • Address 3


Programming

  • DCC Service Mode & DCC PoM (Programming on Main)


Additional Features

  • RailCom® Feedback system
  • RailComPlus® automatic Registration
