Roundhouse DRC-DARJBLUE-NI Class B 0-4-0 Saddle Tank Engine 'Darjeeling' Darjeeling Blue (Radio Control, Uninsulated Wheels) Steam Locomotive

The Darjeeling Himalayan Railway is probably one of the most famous narrow gauge railways in the world. Situated in India, this engineering masterpiece which rises a total of 6,850 feet over it's 50 mile length, was constructed between 1878 and 1881.

The railways main motive power were the well known class 'B' 0-4-0 well tank/saddle tank engines designed by Sharp Stewart & Co of Glasgow. Between 1889 and 1929 the DHR purchased a total of 33 of this class of locomotive from Sharp Stewart, North British Locomotive Co and Baldwin Locomotive Works as well as building 3 in it's own workshops, and locomotives dating back to 1892 are still in use today.

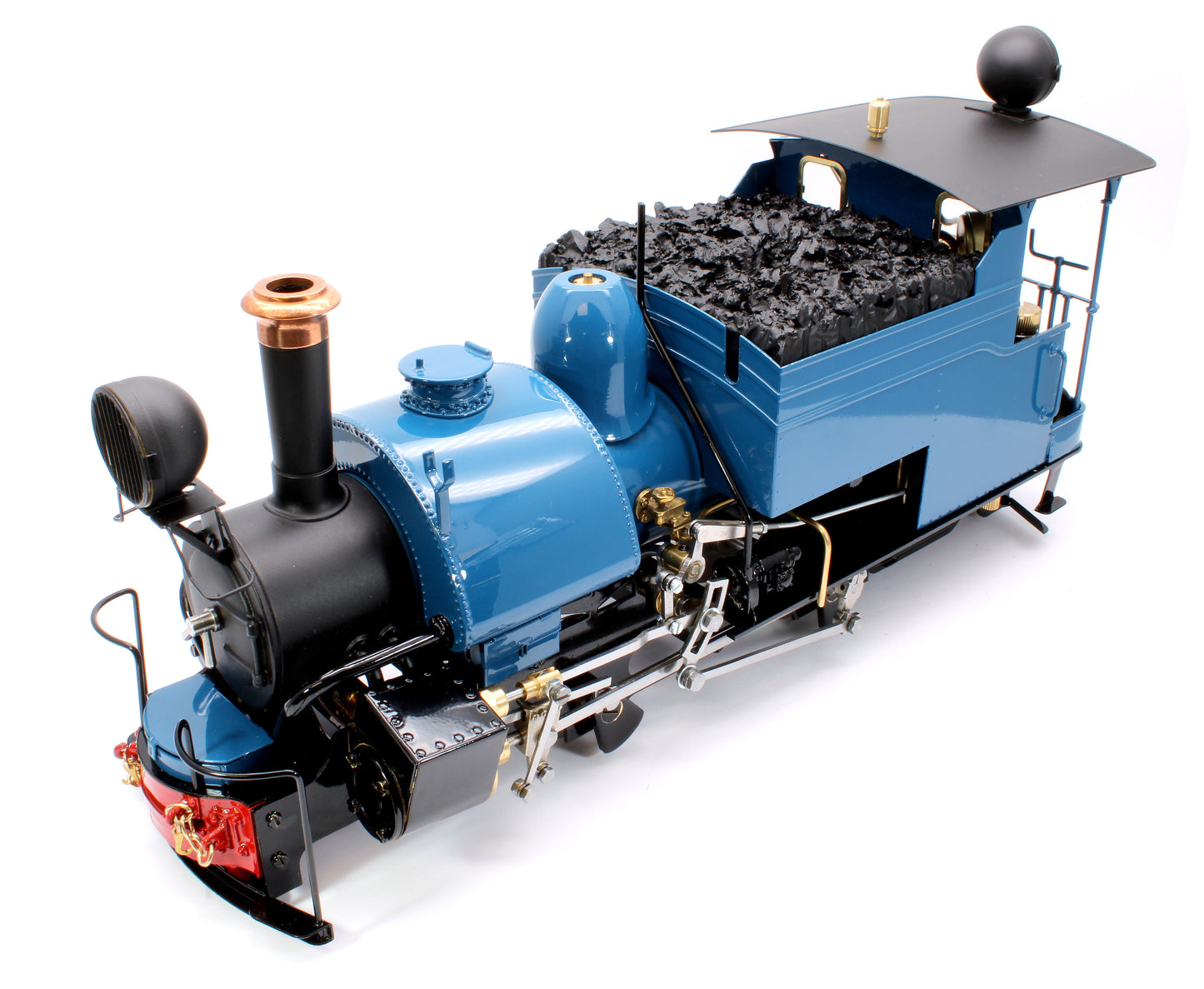

The Roundhouse class 'B' is typical of the locomotives that are currently in operation on the railway and features a wealth of detail to augment the legendary Roundhouse performance and reliability.

Technical specifications for the Darjeeling 'B' Class:

• Internal gas firing using our ‘FG’ type burner.

• 0-4-0 outside framed chassis with two double acting slide valve cylinders operated by a simplified Walschaerts type valve gear.

• Exhaust enhancer.

• Water top-up system and water gauge.

• Controls fitted as standard are :- steam regulator, safety valve, pressure gauge, displacement lubricator, gas regulator and reversing gear.

• Dimensions (loading gauge) are :- length 365mm over buffers, width 115mm, height 170mm, weight 3.5 Kg.

• Full radio control is available for both regulator and reversing valve gear using 2.4GHz R/C.
• The wheels are adjustable between 32mm and 45mm gauge.

• Minimum radius 2'.

PLEASE NOTE: This model does not come with insulated wheels.
