Gaugemaster 100 Panel Mounted Circuit Controller

100 Gaugemaster
1 2
£43.95
-20%
UK tax included. Shipping calculated at checkout.
Availability: On order
View full details
Order within the next to be eligible for Next Day Delivery (T&Cs apply, see shipping policy for next day services.)
We Want Your
Second-Hand Items
top prices paid
click to find out more

Product Details

SKU 100
Vendor Gaugemaster
Categories Best selling products Control & Digital Controllers and Transformers Gaugemaster New products
Share
Features

Product Description

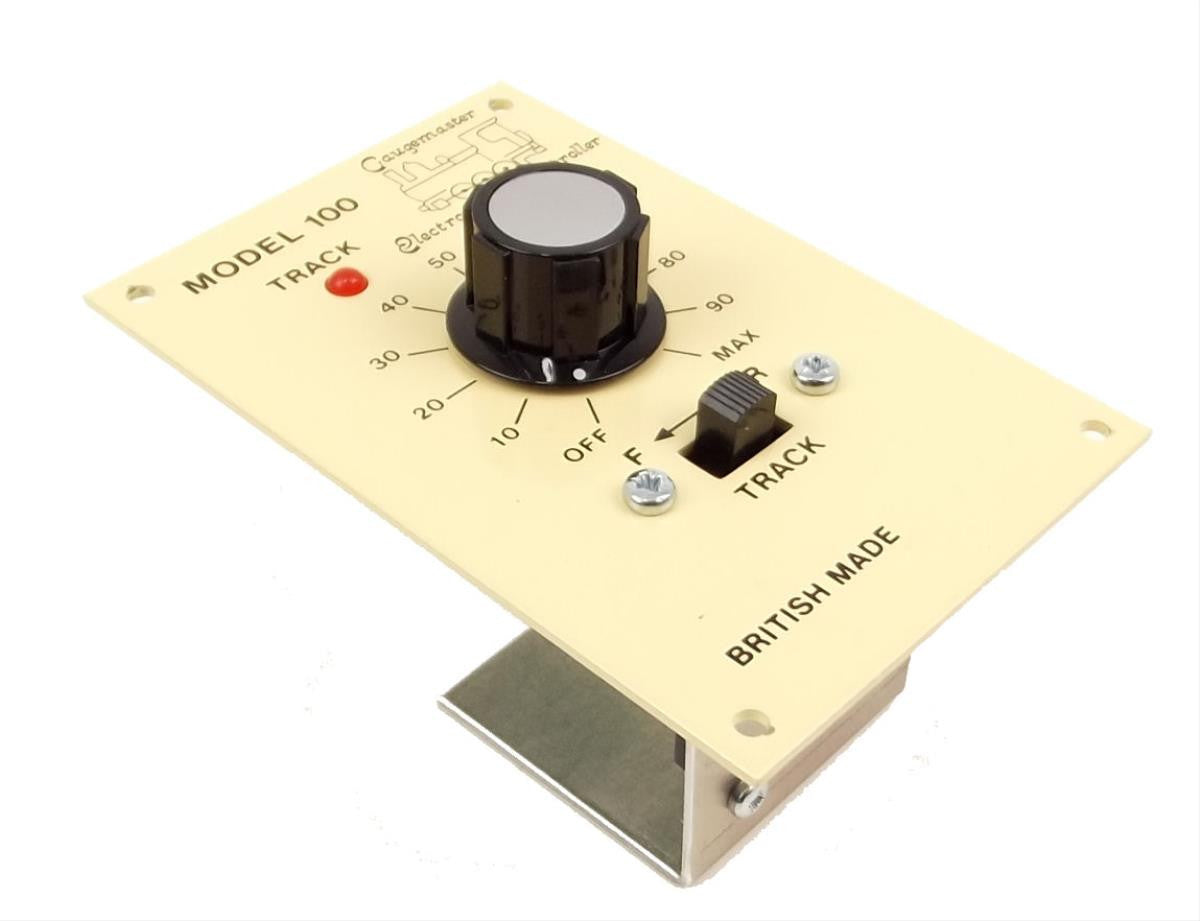

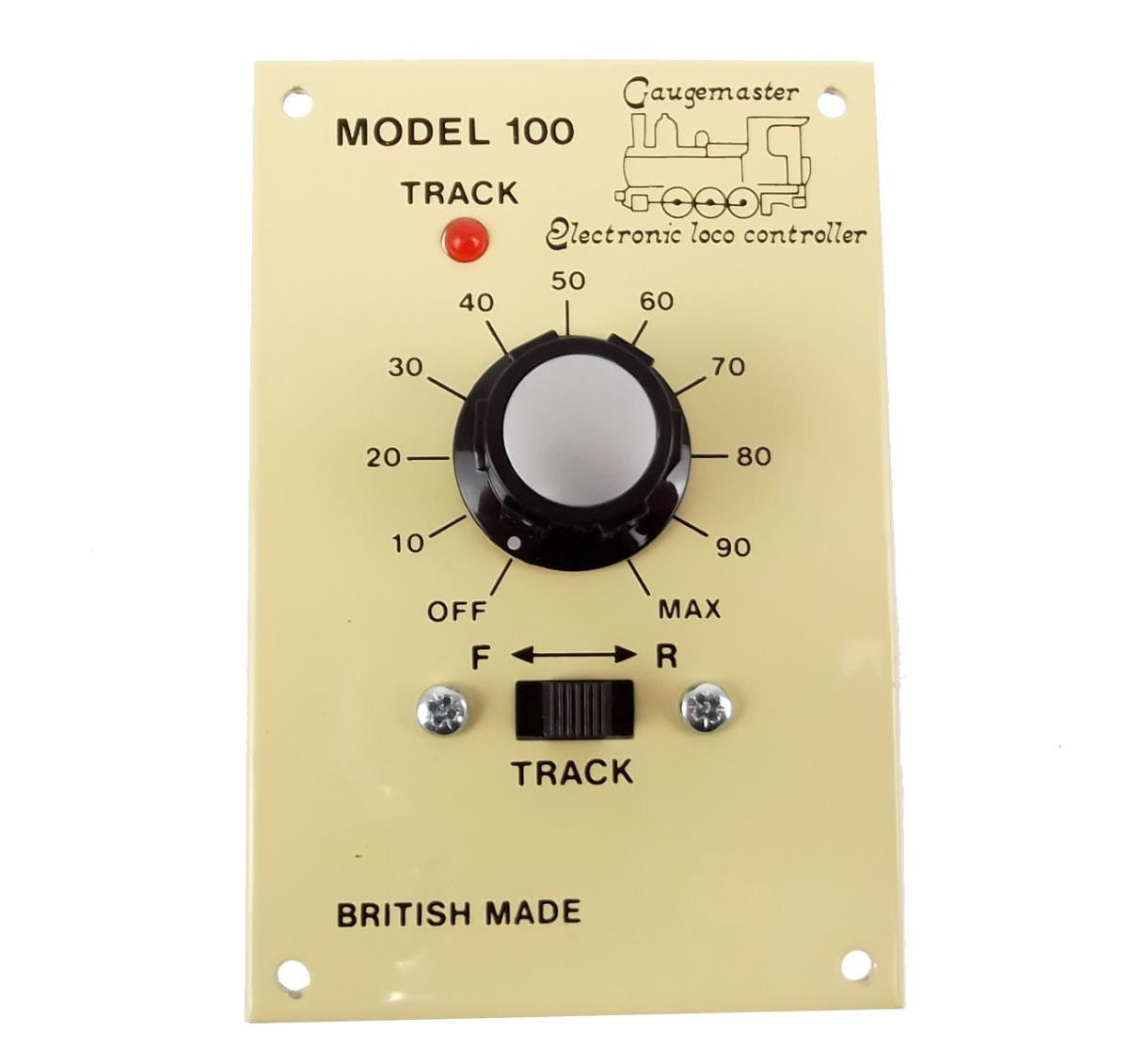

Single track controller designed to sit inside a control panel. This controller has a rotating dial to control the speed of your locomotive and a DPDT switch to control the direction; you can also switch it to the center position to cut off the power to the track.

TECHNICAL DETAILS

  • INPUT 1 x 16v AC (GMC-M1, GMC-T1 or GMC-WM1) Rated at 1.25 Amps
  • OUTPUT 1 x 12v DC Rated at 1.25 Amps

MEASUREMENTS

  • WIDTH 70mm
  • DEPTH 50mm
  • HEIGHT 105mm

GMC-100 - Instructions - Click here to download
